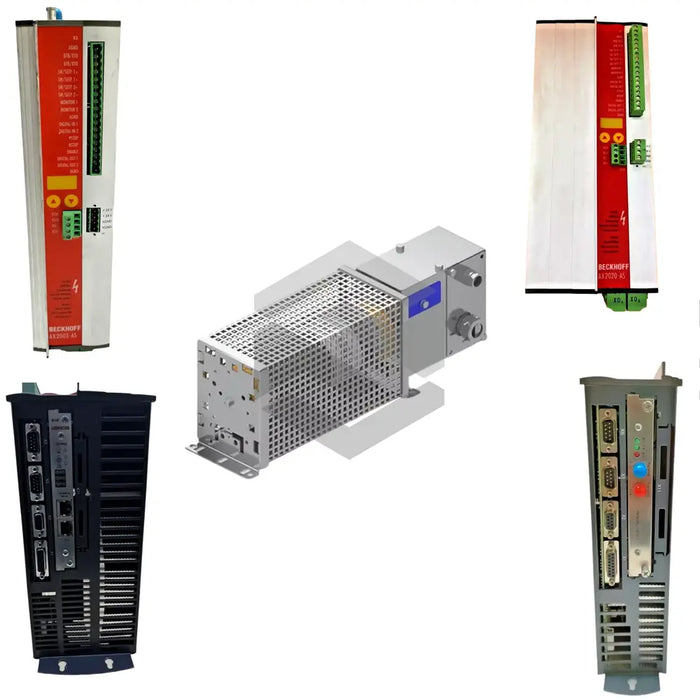

series image of AX8810-0000-0000

AX8810-0000-0000

by Beckhoff
$2,687.24 - $2,687.24
$2,687.24
$2,687.24 - $2,687.24
$2,687.24
In Stock, Ships 3 - 5 Days
The AX8810-0000-0000 capacitor module, produced by Beckhoff, enhances the DC link capacitance in Beckhoff servo drive systems, optimizing energy efficiency by capturing voltage spikes during motor braking and minimizing reliance on brake resistors. It stores regenerative energy, reducing power losses and overall connected load, which facilitates the downsizing of fuses. The module is rated for 848 V DC, making it suitable for high-voltage applications. Installation and configuration are streamlined using TwinCAT 3 Drive Manager 2, with safety projects managed via TwinCAT 3 Safety Editor TE9000 and TwinSAFE Loader/User TE9200. Compact in design, the AX8810 measures 230 mm in height, 192 mm in depth, and 60 mm in width, allowing for easy integration into existing systems. It carries an IP20 protection rating, suitable for industrial environments with temperatures from 0 to 40°C, extendable to 50°C with reduced power.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Model: AX8810-0000-0000
  • Type: Capacitor module
  • Application: Beckhoff servo drive systems
  • Function: Increase DC link capacitance
  • DC Link Voltage: 848 V DC
  • Installation Tool: TwinCAT 3 Drive Manager 2
  • Safety Tools: TwinCAT 3 Safety Editor TE9000 and TwinSAFE Loader/User TE9200
  • Height: 230 mm
  • Depth: 192 mm
  • Width: 60 mm
  • Protection Class: IP20
  • Operating Temperature Range: 0 to 40°C
  • Extended Operating Temperature Range: up to 50°C with reduced power
  • Energy Efficiency: Yes, energy-saving potential in frequent brake cycles
