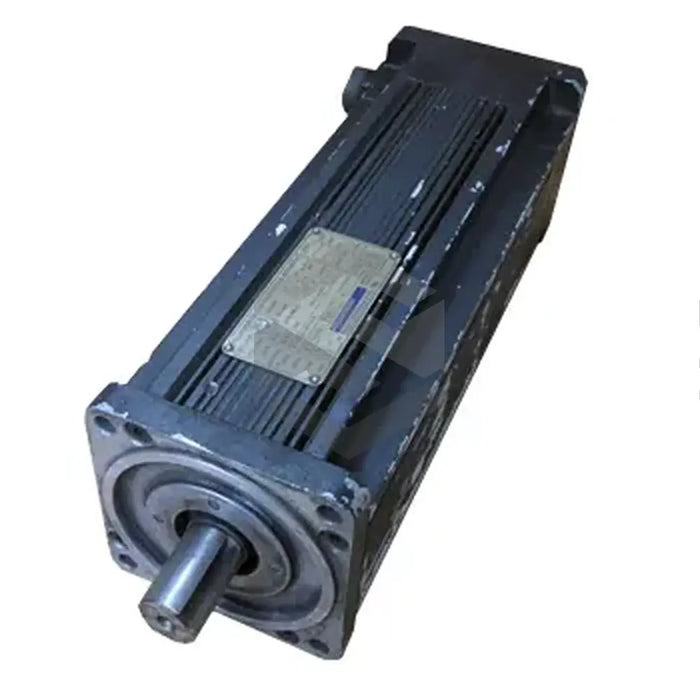

series image of B-606-BA-91-TR503-008

B-606-BA-91-TR503-008

by Kollmorgen
Request a quote
Kollmorgen’s B-606-BA-91-TR503-008 servomotor is a high-performing product within the B series of low-inertia motors. Designed with a superior thermal blueprint and equipped with high-energy neodymium-iron-boron magnets, it is serviced by the SERVOSTAR SR55 digital servo amplifier and a Windows-based MOTIONLINK software. This software simplifies setup and monitors up to three motor variables simultaneously, facilitating real-time control over torque and speed. Boasting a 'B' winding type and a stack length of 6, it also features perpendicular standard screw thread connectors, an efficient permanent magnet design, and is ideal for applications requiring quick deceleration and acceleration. Weighing 29.9kg, the device delivers a thermal resistance of 0.26°C/W when stalled, continuous torque of 42Nm at 40°C and 44.6Nm at 25°C, and utilizes Class H insulation. With control algorithms like PI, Pole Placement, and PDFF, it offers precise motor torque and velocity control through MOTIONLINK software.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Series: B Series
  • Product Code: B-606-BA-91-TR503-008
  • Product Type: Servomotor
  • Compatible Amplifier: SERVOSTAR SR55 digital servo amplifier
  • Software: Windows-based MOTIONLINK
  • Winding Type: B
  • Stack Length: 6
  • Connector Type: Standard screw thread
  • Weight: 29.9kg
  • Thermal Resistance: 0.26°C/W (Stalled)
  • Continuous Torque: 42Nm (40°C), 44.6Nm (25°C) Stalled
  • Insulation: Class H
  • Control Algorithms: PI, Pole Placement and PDFF
  • Additional Features: motor torque control, motor velocity control.
