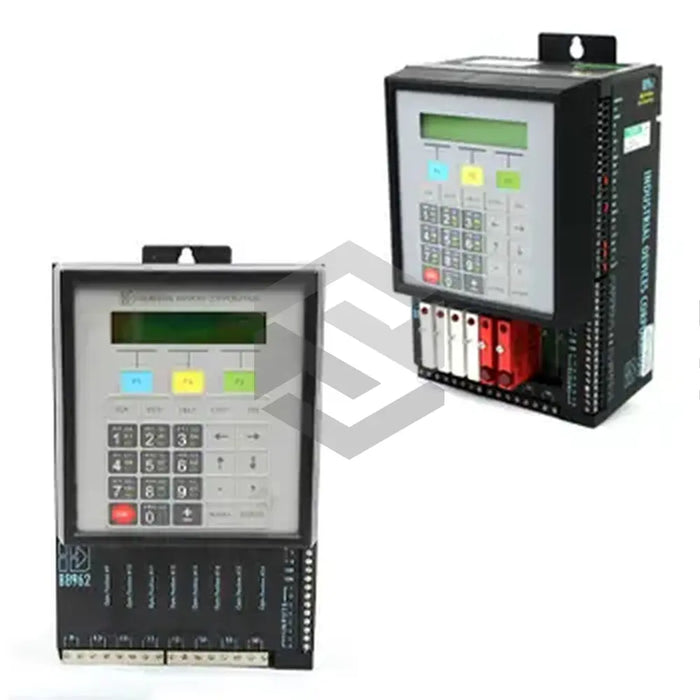

S image of B8962 NP-LMTR

B8962 NP-LMTR

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen manufactured B8962 NP-LMTR is a dual-axis smart servo drive, primarily developed for use with IDC's linear motors. Although it comes without a front panel, one can be acquired separately if needed. This drive also offers optional accessories like regenerative power dissipation modules for 115/230V AC, as well as a thumbwheel input module. This smart servo drive is a blend of a servo amplifier and machine controller, using DSP technology for closed loop control on a variety of permanent magnet and brushless servo motors and actuators. It supports a vector control algorithm for high bandwidth velocity and torque control, that can be programmed via keypad or PC. For PC programming, it uses a serial interface terminating on the RS-232 serial interface. The included items with B8962 NP-LMTR are AC power cable, development software, and the smart drive itself. It can handle three-phase 90 to 240V AC input, with a 10 Amps maximum current and a continuous one of 5 Amps. It functions optimally up to 55 degrees Celsius with a relative humidity range of 0 to 90%.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Smart Servo Drive

Utilization

Dual-axis

Motor Type

Permanent magnet and brushless servo motors and actuators

Control Type

DSP Technology with Vector Control Algorithm

Programming Methods

Keypad or PC based software

PC Connection

RS-232 serial interface

Included Items

AC power cable, application development software, smart drive

Input

Three-phase 90 to 240 Volts AC

Max Power Input

1150 VA at 115 Volts AC, 2300 VA at 230 Volts AC

Max Current Input

10 Amps

Average Current Input

5 Amps

Max. Operating Temperature

55 degrees Celsius

Relative Humidity Range

0 to 90%

Operation

Trained Personnel Only
