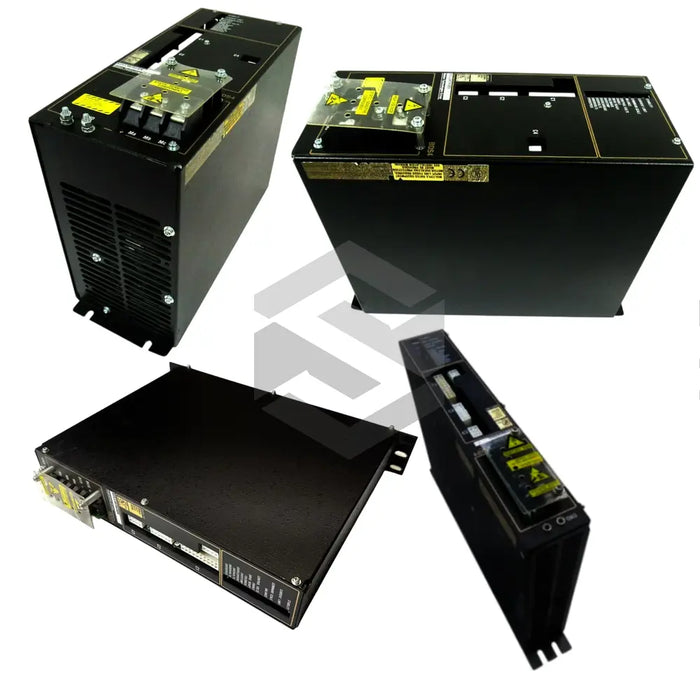

S image of BDS4A-203J-0496\102B2

BDS4A-203J-0496\102B2

by Kollmorgen
$687.47 - $687.47
$687.47
$687.47 - $687.47
$687.47

In Stock, Ships 1 - 3 Days

The BDS4A-203J-0496\102B2 servo drive from Kollmorgen is part of the BDS Industrial Servo Drives series. It supports 10 kHz PWM switching, provides an acceleration rate of 100,000 RPM/sec, features redundant auto diagnostics, and accepts 90–160 VAC input voltage. The drive delivers up to 8 kVA peak output at 325 VDC with 20 kHz current ripple and 10 A continuous output current at 45 °C ambient. It also offers 12-bit rotary–digital encoder compatibility and operates with a 225–360 V DC bus voltage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Acceleration Rate

100,000 RPM/sec

Analog Velocity Input

Supported with configurable offset VOFF

Baud Rate

300–19200 adjustable

Digital Loop Low Velocity Offset

Supported

Digital Loop R/D Drive Compatibility

12-bit

Digital Loop Self-tuning

Supported

Form Factor (RMS/Avg)

≤ 1.01

Input Voltage (AC)

90–160 VAC, 47–63 Hz

Logic Safety Watchdog

Redundant auto-diagnostic mode

Main DC Bus Voltage

225–360 VDC

Max Output KVA (325 VDC)

4.0 cont., 8.0 peak

Motor Current Ripple Frequency

20.0 kHz ±10%

Output RMS Current at 45°C Ambient

10.0 A cont., 20.0 A peak

PWM Switching Frequency

10.0 kHz

Resolver Excitation Frequency

8.5 kHz

Serial Interface

RS-232/485
