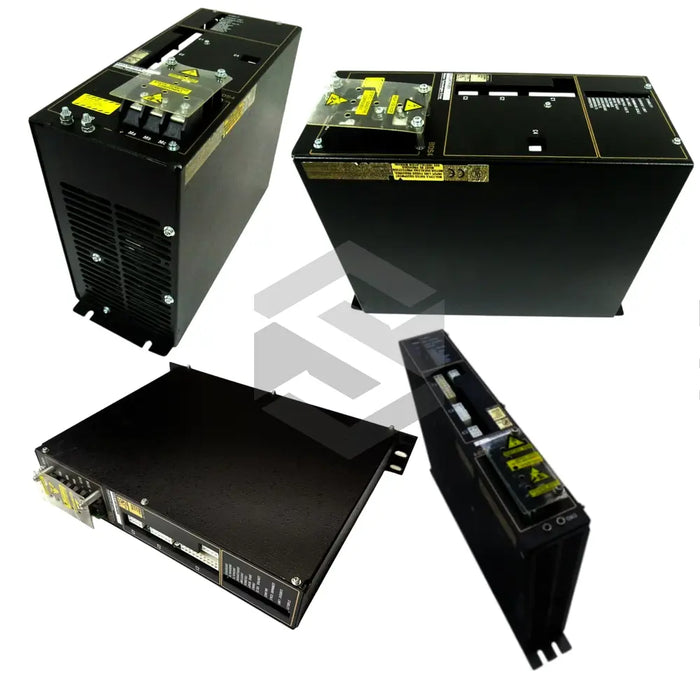

S image of BDS5A-206-00010\202C-2-030

BDS5A-206-00010\202C-2-030

by Kollmorgen
$1,109.54 - $1,109.54
$1,109.54
$1,109.54 - $1,109.54
$1,109.54

In Stock, Ships 1 - 3 Days

The BDS5A-206-00010\202C-2-030 from Kollmorgen features a PWM switching frequency of 10 kHz and 50 W internal heat dissipation. Part of the BDS Industrial Servo Drives, it supports 1-3 phase operation at 47-63 Hz. It delivers 6 A continuous output current and 12 A peak current (2s).

It uses a Main DC Bus 225360 VDC and a fan bus 115 VAC. The Unregulated Logic Bus provides 750 VDC at 0.25 A and +812 VDC at 1 A. Resolver excitation frequency is 8.5 kHz and max charge time is 25 ms.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Charge Time (max)

25 ms

Control Frequency

47-63 Hz

Controller Phases

1-3

Fan Current (115 VAC)

0.2 A

Form Factor (RMS/avg)

≤1.01

Input Current (115 VAC)

1.1 A RMS

Internal Heat Dissipation

50 W

Main DC Bus Voltage

225 VDC (min), 360 VDC (max)

Motor Current Ripple Frequency

20 kHz ±10%

Output Current (rms/phase, 45°C)

6.0 A cont, 12.0 A peak (2s)

Output Power (@325 VDC)

2.0 kVA cont, 4.0 kVA peak

PWM Switching Frequency

10 kHz

Resolver Excitation Frequency

8.5 kHz

Unregulated Logic Bus (+8-12 VDC)

1.0 A

Unregulated Logic Bus (±15-20 VDC)

0.25 A
