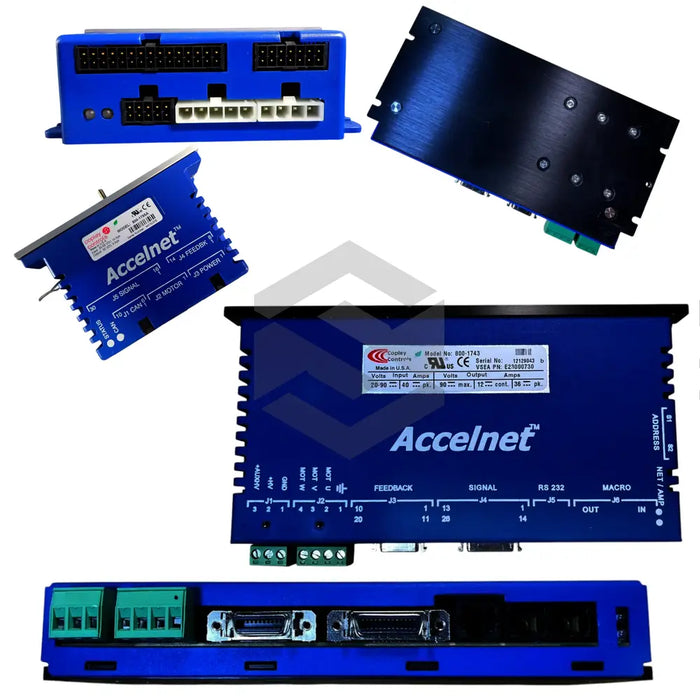

The BE2-090-06-R from Copley Controls features a wide +14 to +90 VDC input voltage range and delivers 6 A continuous current. As part of the Accelnet CanOPEN Modules, it supports CANopen over EtherCAT communication and meets IEC 61508 and ISO 13849-1 safety standards.
It operates from 0 to +45 °C, offers 8 opto-isolated inputs and 5 opto-isolated outputs, and includes MOSFET brake outputs with flyback diodes. The compact drive measures 172.1 × 119.3 × 79.8 mm.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
±10V & PWM Command Inputs
±10V and PWM for pos/vel/torque
Analog Inputs
2 reference inputs, 12-bit resolution
ASCII/Discrete I/O Interface
ASCII and discrete I/O
Digital Inputs
8 high-speed; 8 opto-isolated; 2 motor over-temp
Digital Outputs
5 opto-isolated; 2 opto-isolated brake outputs
Dimensions (w/ Heatsink)
172.1 x 119.3 x 79.8 mm
Dimensions (w/o Heatsink)
172.1 x 119.3 x 44.1 mm
EtherCAT Interface
CANopen over EtherCAT (CoE)
Feedback Support
Incremental & absolute encoders, digital halls
Master Encoder Support
Gearing and camming encoder input
Motion Functions
Interpolation, homing, camming, gearing, indexing
Operating Temperature
0 to +45°C
Protection Features
HV over/undervoltage; overtemp; short-circuit; I2T limiting
Safety Standards
IEC 61508, ISO 13849-1
Servo Control Modes
CSP, CSV, CST, profile P/V/T modes
Stepper Motor Commands
Stepper command interface
Storage Temperature
-40 to +85°C
