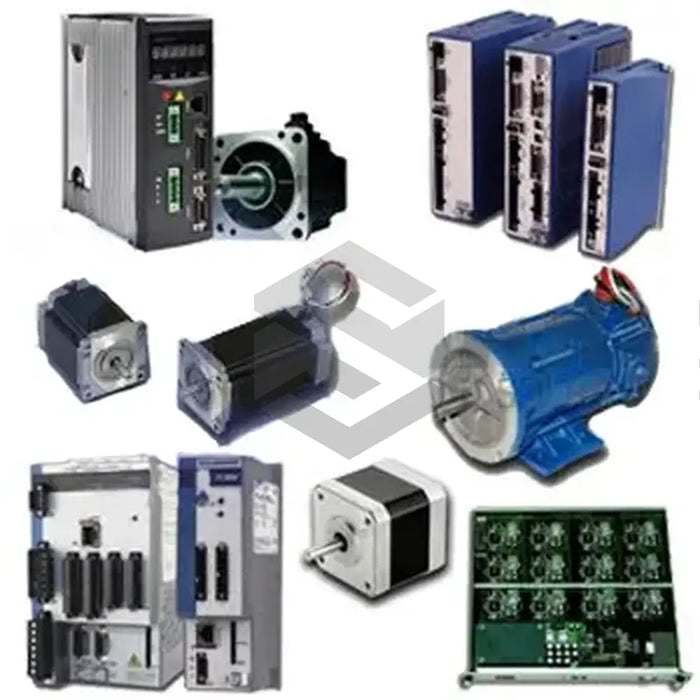

S image of BH-624-D-41

BH-624-D-41

by Kollmorgen
$1,154.97 - $1,154.97
$1,154.97
$1,154.97 - $1,154.97
$1,154.97

In Stock, Ships 1 - 3 Days

The Kollmorgen BH-624-D-41 is a reliable synchronous servomotor that operates at a high temperature tolerance due to its Class H insulation system. Compact yet powerful, it boasts a rated torque of 23.7Nm at 400V and a static friction torque of 0.52Nm. The units are designed for individual commissioning in multi-axis systems and promise smooth operation without grinding noise. The robust resolver feedback ensures precision and consistency. Compatible with the SERVOSTAR S614 servo amplifier, this motor has a peak current rating of 44A and is mounted on a 1-inch thick aluminum faceplate. The unit can tolerate environmental rigors within a range of -25°C to +70°C, and resist condensation within a relative humidity of 5%-95% during transport. Regular maintenance checks every 2,500 hours are recommended. The unit's ball bearings may require replacement after 20,000 hours of operation under rated conditions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

BH-624-D-41

Type

Synchronous Servomotor

Installation

Terminal Box

Insulation System

Class H

Cable Diameter

16.5mm

Static Friction Torque

0.52Nm

Rated Torque

23.7Nm at 400V

Commissioning

Separately in multi-axis systems

Rotor Propertise

Must revolve freely without any grinding noise

Feedback Type

Rugged Resolver

Space Requirement

Compact

Accompanying Product

SERVOSTAR S614 servo amplifier

Mounting Requirement

1-inch thick aluminum faceplate

Radial Force Support

650N at shaft end

Peak Current Rating

44A

Transport Temperature

-25°C to +70°C

Relative Humidity

5% to 95% without condensation

Transportation Climatic Category

2K3 according to EN 50178 specifications

Usage Inspection

Check for bearing noise after every 2,500 hours of operation

Ball Bearings Lifespan

20,000 hours under rated conditions

Cleaning Agent

Isopropanol or similar

Water Exposure

Should not be subject to spraying or immersing action

Rotation Issue

Will not rotate if phases are in wrong sequence or if amplifier is not enabled

Oscillation Issue

Tends to oscillate if resolver cable shielding is broken.
