BK9103-1006
by Beckhoff

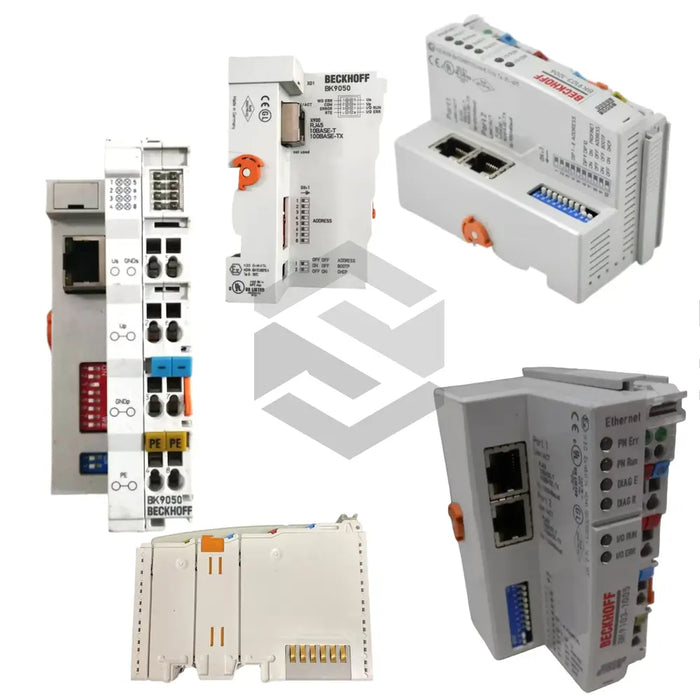

The Beckhoff BK9103-1006 is a high-performance bus coupler from the BK EtherCAT Bus Couplers series by Beckhoff, engineered for seamless integration into modern industrial automation networks. This module supports up to 512 digital peripheral signals and 256 analog peripheral signals, enabling extensive signal handling in compact installations. With data transfer rates of 10/100 Mbit/s and PROFINET RT (Class B) communication, it provides real-time data exchange for demanding control applications. The bus coupler accommodates up to 64 bus terminals (extendable to 255 via K-bus extension), offering scalable I/O capacity and flexibility for system expansion.
In its technical design, the BK9103-1006 features two RJ45 (2-channel switch) bus interfaces that support line and star topologies, leveraging automatic rate detection for Cat3 (10 Mbit/s) and Cat5 (100 Mbit/s) cables. Configuration is handled via the KS2000 software, allowing rapid setup and commissioning. Power is supplied by a 24 V DC input (–15%/+20%) with a maximum input current of 500 mA; the K-bus delivers up to 1750 mA to downstream terminals. The device accommodates a starting current of 2.5× continuous current and recommends a fuse rating of ≤10 A. Fieldbus data capacity includes 512 input and 512 output bytes, ensuring robust data throughput for complex control schemes.
Designed for reliability in industrial environments, the BK9103-1006 operates across a temperature range of –25 °C to +60 °C and carries an IP20 protection rating for secure indoor mounting. Weighing approximately 170 g and using a 4×2 twisted-pair copper cable medium, it guarantees consistent signal integrity and resistance to electromagnetic interference. Compatibility with KS2000 configuration, category-rated cables and PROFINET RT standards simplifies integration with existing Beckhoff and third-party controllers. By combining high channel density, flexible topology options and real-time communication, this bus coupler enhances system reliability, reduces installation complexity and optimizes performance in automated production and process control applications.
