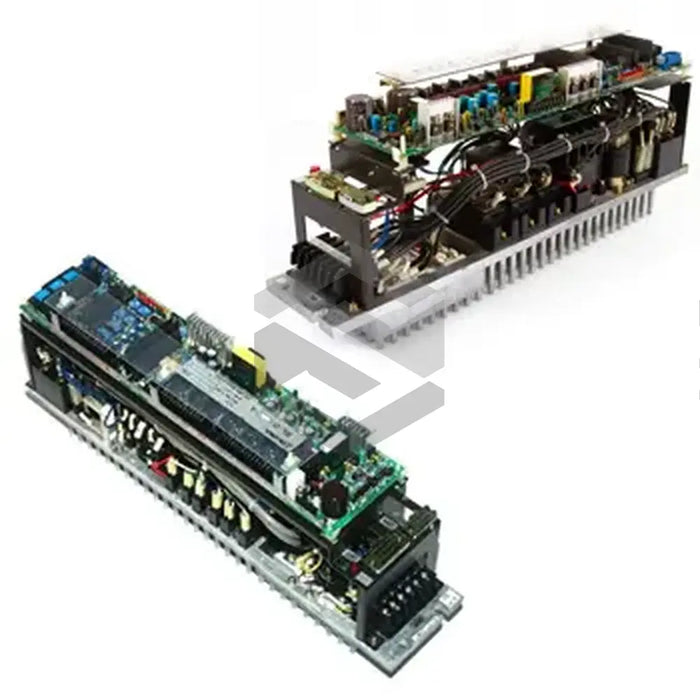

S image of BL-D30D

BL-D30D

by Okuma
$2,096.85 - $2,096.85
$2,096.85
$2,096.85 - $2,096.85
$2,096.85

In Stock, Ships 1 - 3 Days

Okuma's BL-D30D is a high-performance DC brushless servo drive, employed in various motion-control systems including machine tools, milling machines, grinding machines, and robotics. This brushless servo drive controls the absolute position of the servo motor using a 4-bit absolute encoder via an RS232C serial interface. The drive operates at a required current of 3.75 A and consumes a peak current of 7.5 A. It operates at a DC bus voltage of 85 VDC and is equipped with protection features against overheating and overvoltage. The BL-D30D is installed on a rack with IP54 protection and weighs 0.8 kg. Its permissible operating temperature ranges from 0 to +60 degrees Celsius. The servo drive has a speed control range of 150 to 50,000 rpm and can operate various motors such as ML-1620 and ML-2340.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Okuma

Model

BL-D30D

Type

DC Servo Drive

Encorder Interface

Incremental

Encoder Bit

4-bit

Communication

RS232C serial interface

Rated Current

3.75 A

Peak Current

7.5 A

DC Bus Voltage

85VDC

Temperature Control

Heat Sink Device

Adjustments

Damping, Tachometer Gain, Balance, Time Constant

Weight

0.8 kg

IP Protection

IP54

Temperature Range

0 to +60 degree Celsius

Speed Control Range

150 – 50000 rpm

Potentiometer

External compatible

Compatible Motors

ML-1620, ML-2340.
