BL-MC100MJ-20SNA

by Okuma
Original price $2,853.00 - Original price $2,853.00
Original price
$2,853.00
$2,853.00 - $2,853.00
Current price $2,853.00
In Stock, Ships 1 - 2 Days
Request a quote

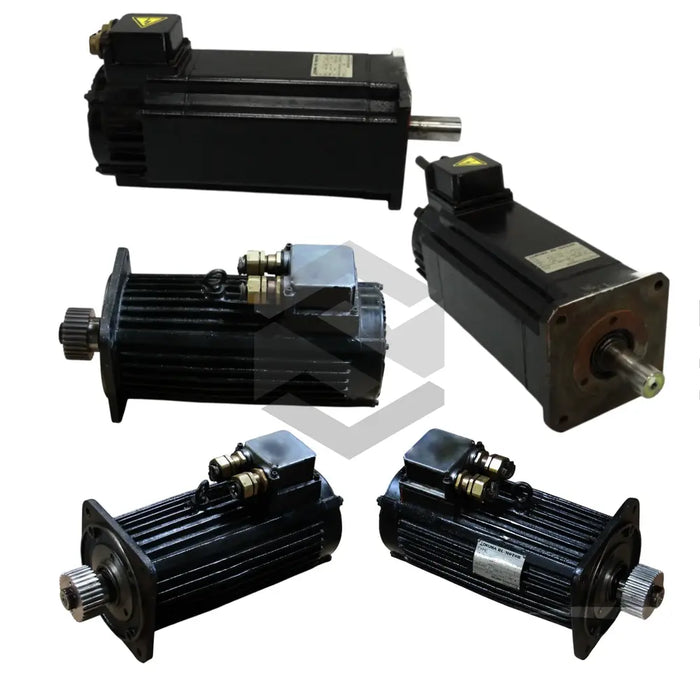

The BL-MC100MJ-20SNA is an AC servo motor, manufactured by Okuma, a leading industrial drive control systems and motion operation products producer. It integrates into the company's BLII-D servo amplifier and features a MAIN board which manages position command information. The system is functional in ambient temperatures ranging from 0°C to 55°C, with its control cabinet operational between 0°C and 45°C. As for storage and transportation, it can withstand temperatures from -20°C to 60°C with an external relative humidity of up to 75%. The motor operates on a three-phase connection at 200V or a single phase at 100V. Other features include a radiator plate, power board, power unit, and SVCII board that encompasses the control board. Indication LEDs display operation statuses, while the model also offers various monitoring functions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Okuma
  • Product Model: BL-MC100MJ-20SNA
  • Product Type: AC Servo Motor
  • Applicable Amplifier: BLII-D Servo Amplifier
  • Operating Temperature Range: 0 °C to 55 °C
  • Storage Temperature Range: -20 °C to 60 °C
  • Relative Humidity: 75%
  • Voltage (Three Phase): 200 Volts
  • Voltage (Single Phase): 100 Volts
  • Main Circuit Voltage: 180 V to 220 V
  • Control Circuit Voltage: 90 V to 121 V
  • Rated Capacity: 0.32 times rated motor output
  • Components: Radiator Plate, Power Board, SVCII Board, Control Board, IGBT Converter, Rectifying Diode, Circuit Protector
  • Indication LEDs: Malfunction state, Reset State, Run Status
  • Additional Features: Multiple Monitoring Functions
