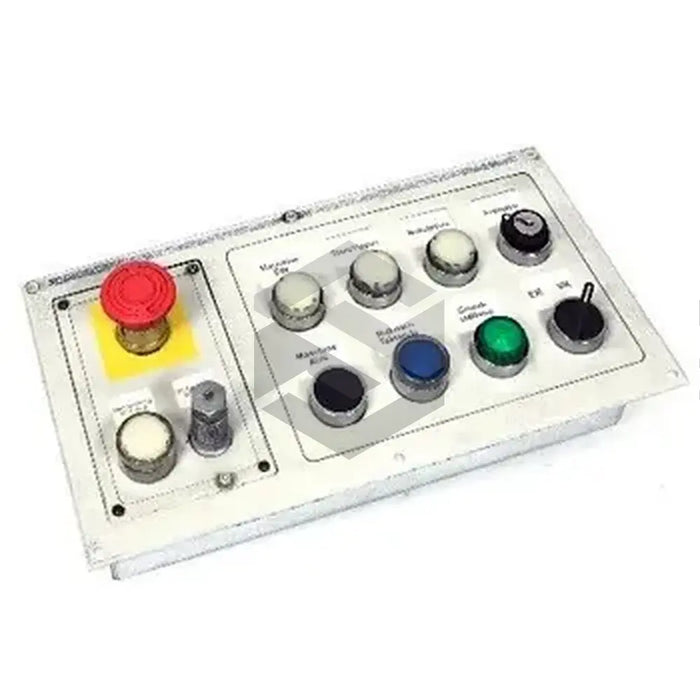

S image of BTA15.1-NC-DE-BS

BTA15.1-NC-DE-BS

by Bosch Rexroth Indramat
$749.21 - $749.21
$749.21
$749.21 - $749.21
$749.21

In Stock, Ships Fast

The BTA15.1-NC-DE-BS is a motion control board from Bosch Rexroth Indramat, designed for devices in the BTV05 and BTV06 series. It offers versatile configuration options for specific equipment, ensuring optimal value for clients. Installation is simplified with minimal wiring requirements due to 22.5 mm slots and ZB2 Telemecanique components. The board includes a 30-pin socket divided into three 10-pin sockets (X1-X3) for potential-free contact, acknowledge circuit, and emergency stop, allowing jumper connections from the bus. It features integrated INTERBUS connectivity with onboard active electronics and provides 8 inputs and outputs at 24V for external device connections. An RS232 and RS422 interface is also included, eliminating additional interface boards. This board accommodates freely configurable modules, enhancing adaptability when mounted on either side.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Machine Control Board

Compatible Series

BTV05 and BTV06

Slot Size

22.5 mm

Built-In Components

ZB2 Telemecanique

Connectivity

INTERBUS

Socket Configuration

30 pin socket with three X1-X3 sockets

Socket Pin Count

10 pins per socket

Socket Functions

Potential free contact, Acknowledge circuit, Emergency stop

Modules

Freely configurable and mountable

Integrated Interfaces

RS232 and RS422

Inputs

8, 24V

Outputs

8, 24V
