series image of BTC06.2A-E-EH3-FW

BTC06.2A-E-EH3-FW

by Bosch Rexroth Indramat
Request a quote

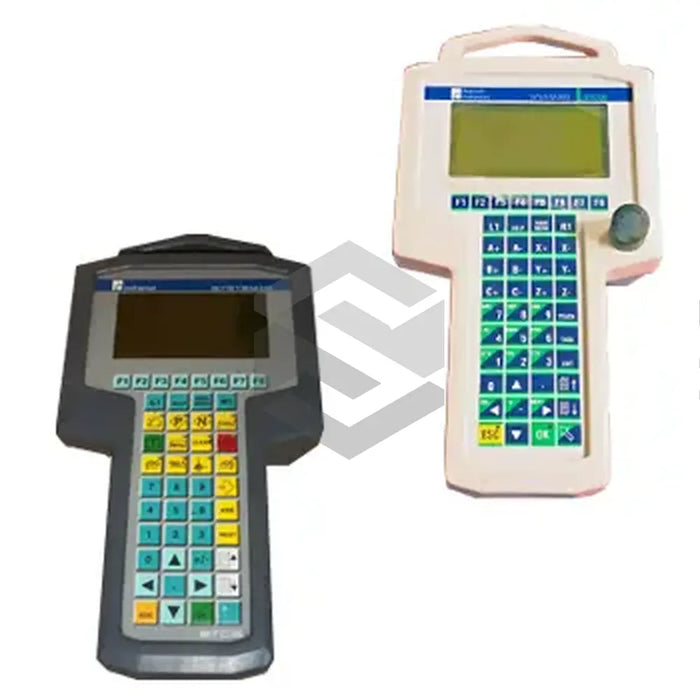

The Bosch Rexroth Indramat BTC06.2A-E-EH3-FW is an industrial-grade portable control panel, complete with a display, keyboard, and various function keys/switches. Leveraging LCD technology, the display boasts a 240 x 128 pixel resolution and LED backlight. The keyboard features 12 axis keys, while several key function switches include a 100,000-cycle emergency stop switch, a three-stage dual circuit active button, and an override potentiometer. The panel includes a 17-pin main interface and a 4-pin secondary interface, which supports RS-232 for firmware downloads. With a 24 Volts DC input voltage, this control panel supports RS 422 / RS 485 interface connections for essential functions. Weighing 1.3 kg with 315 x 180 x 57 mm dimensions, the panel has an IP65 protection rating when the main connector is engaged. Firmware must be purchased separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Portable Control Panel
  • Display Type: Full Graphics LCD
  • Display Backlight: LED
  • Display Resolution: 240 x 128 pixels
  • Keyboard Type: Slide in Strips for 12 Axis Keys
  • Function Keys/Switches: Handwheel, Emergency Stop Switch, Activate Button Three Stage Dual Circuit, Override Potentiometer
  • Emergency Stop Switch Details: Two floating normally closed contacts, up to 24 Volts DC / 42 Volts AC, rated for more than 100,000 operating cycles
  • Handwheel Specifications: Includes Internal 16 bit Absolute Counter and Two Place Relative Counter
  • Connection Interface: 17-pin Main Connection, 4-pin Projecting Interface
  • Interface Support: RS 422 / RS 485 Serial Data, RS-232
  • Firmware Download Support: Yes (Firmware to be ordered separately)
  • Electrical Specifications: 24 Volts DC Input Voltage, Maximum 400 milliamps Input Current
  • Mechanical Specifications: 1.3 Kilograms Weight, Dimensions 315 x 180 x 57 Millimeters (excluding the detachable handle)
  • Product Material: Polycarbonate
  • Protection Rating: IP 65 (with main connector plugged in)
