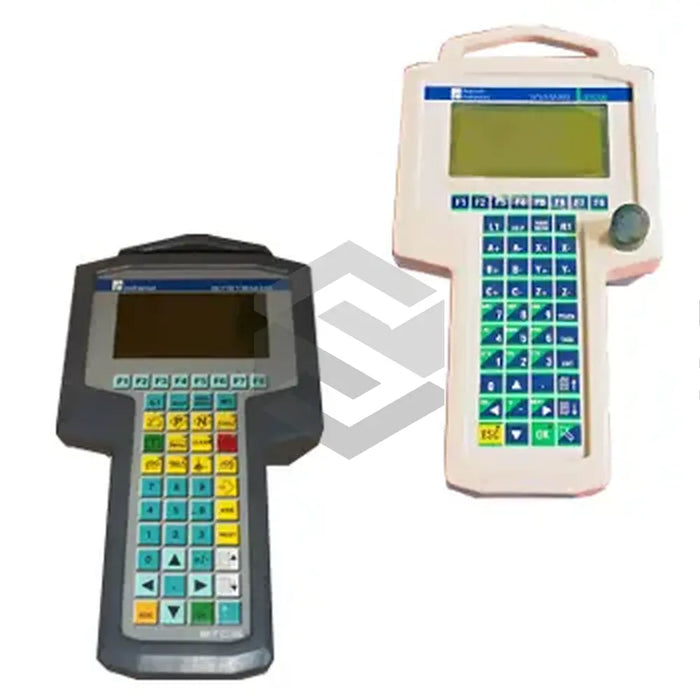

S image of BTC06.2A-F-EH3-FW

BTC06.2A-F-EH3-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The compact, portable BTC06.2A-F-EH3-FW control panel is brought to you by Bosch Rexroth Indramat. Optimized for single and multi-axis control tasks, it excels in a variety of applications including machine tools, packing machines, and assembly systems. For safety purposes, use only within the ambient conditions specified in the product documentation. Only use Rexroth-approved accessories and follow safety instructions to avoid risk of injury or electric shock. The panel takes a power input of 20-30 Volts DC at a maximum of 400 milliamps. It features an LCD display with 240x128 pixel resolution, housed within a polycarbonate casing with an IP 65 protection rating. The unit is lightweight at 1.3 kg, with dimensions measuring 315mm x 180mm x 57mm. Optimal operating temperature ranges from 32 to 131 degrees Fahrenheit. It includes functional elements such as a handwheel, emergency stop switch, override potentiometer, and a dual-circuit activate button. Firmware for the control panel is sold separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

BTC06 series

Product Code

BTC06.2A-F-EH3-FW

Type

Control Panel

Use

Control tasks in installations with one and multiple axes

Voltage

20 to 30 Volts DC

Current

Max 400 milliamps

Display

LCD, 240 x 128 pixels, 108 x 58 mm

Enclosure Material

Polycarbonate

Protection Rating

IP 65

Weight

Approx 1.3 kilograms

Dimensions

315mm length, 180mm width, 57mm depth

Recommended Ambient Temperature

32 to 131 degrees Fahrenheit

Storage Temperature

-4 to 158 degrees Fahrenheit

Functional Elements

Handwheel, emergency stop switch, override potentiometer, activate button three state dual circuit

Rated Voltage for Emergency Switch

24 Volts DC / 42 Volts AC

Rated Current for Emergency Switch

2 Amps DC / 3 Amps AC.
