BTC06.2A-F-EN3-FW

Original price $8,074.30 - Original price $8,074.30
Original price
$8,074.30
$8,074.30 - $8,074.30
Current price $8,074.30
In Stock, Ships Today
Request a quote

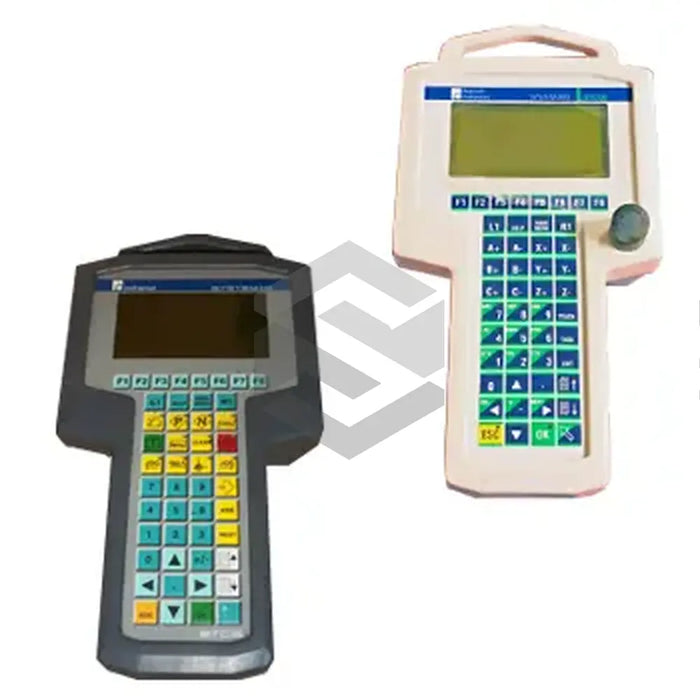

The Bosch Rexroth Indramat BTC06.2A-F-EN3-FW is a compact, portable control unit designed to interface with Indramat controllers from the MST/P, CLC, DKC, MTS/R, and CLM series. The unit is equipped with an RS232C and RS422A/RS485 interface and includes Screen Manager software for creating custom applications for controller access. The BTC06.2A-F-EN3-FW features a 40-key slide strip keyboard, emergency stop and activate buttons, and a 240 x 128 pixel graphic LCD display with LED backlight. The unit requires separately ordered firmware and operates with a 24 Volt DC input. Encased in a shockproof IP 65 rated enclosure, it contains a series 68000 micro-controller, a 1MB Flash memory, and 256KB RAM. The BTC06.2A-F-EN3-FW, with its dimensions of 315 x 170 x 57 millimeters and weighing in at 1.3 kilograms, endorses a 0-55 degrees Celsius operating range. The main connection features a 17-pin connector.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Manual Control Unit
  • Interface: Integrated RS232C and RS422A / RS485
  • Compatibility: MST/P, CLC, DKC, MTS/R, and CLM Series
  • Software: Screen Manager
  • Hardware: 68000 Micro-controller, 1 Megabyte Flash Memory, 256 Kilobytes RAM
  • Power Input: 24 Volts DC
  • Operating Voltage Range: 20 to 30 Volts DC
  • Maximum Current Consumption: 400 Milliamps
  • Keyboard: Polyester Film with 48 Keys
  • Weight: 1.3 Kilograms
  • Dimensions: 315 x 170 x 57 Millimeters
  • Operating Temperature Range: 0 to 55 Degrees Celsius
  • Storage Temperature Range: -20 to 70 Degrees Celsius
  • Main Connector: 17-pin Connector
  • Display: 240x128 Pixel Graphic LCD with LED Backlight
  • Protection Rating: IP 65
  • Shock Proof: Yes
  • Emergency Stop Button: Yes
  • Activate Button: Three State Dual Circuit.
