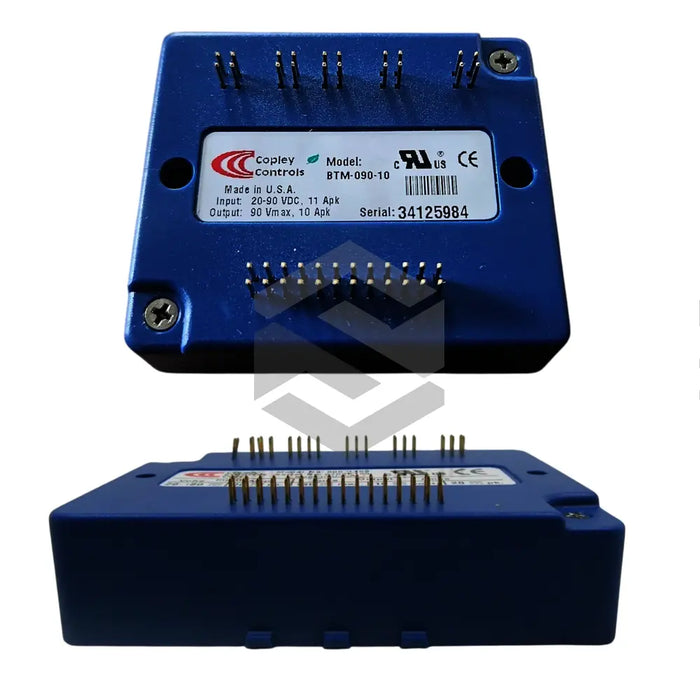

The BTM-090-10 is a DC powered analog current amplifier from Copley Controls’s Bantam M-Axis Controllers. It operates on +20 to +90 Vdc, delivers 5 Adc continuous (10 Adc peak), and uses digital Halls for brushless motor feedback. Protection includes short circuit, over-temperature, and HV over/undervoltage. Measuring 53.3 x 45.7 x 15.2 mm with conduction through heatplate cooling, it withstands 0 to 95% humidity.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Continuous Current
5 Adc, ±5%
Cooling Method
Conduction through heatplate or convection
Current Limiting
Programmable: continuous current, peak current, peak time
Digital Outputs
3 n-channel MOSFET, open-drain
Dimensions
53.3 x 45.7 x 15.2 mm
Feedback
Digital Halls for brushless motors
Humidity
0 to 95%, non-condensing
Operating Ambient Temperature
0 to +45 °C
Output Resistance
0.075
Peak Current
10 Adc, ±5%
Protection
Short circuit, over-temperature, HV over/undervoltage
Storage Temperature
-40 to +85 °C
Voltage Range
+20 to +90 Vdc
Weight
0.037 kg
