BTM03.1-NA-TA-TA-SA-VA-TA-2EA-FW
The Bosch Rexroth Indramat BTM03.1-NA-TA-TA-SA-VA-TA-2EA-FW is a robust machine operator panel within the BTM03 Machine Operator Panels series by Bosch Rexroth Indramat. Designed as a Line 3, Design 1 operator panel, it features a versatile Master Board with 16 inputs and 16 outputs and accommodates multiple module slots for expanded control functionality. This panel serves as the primary human–machine interface (HMI) in industrial automation, enabling operators to monitor processes, execute commands, and adjust machine parameters efficiently.

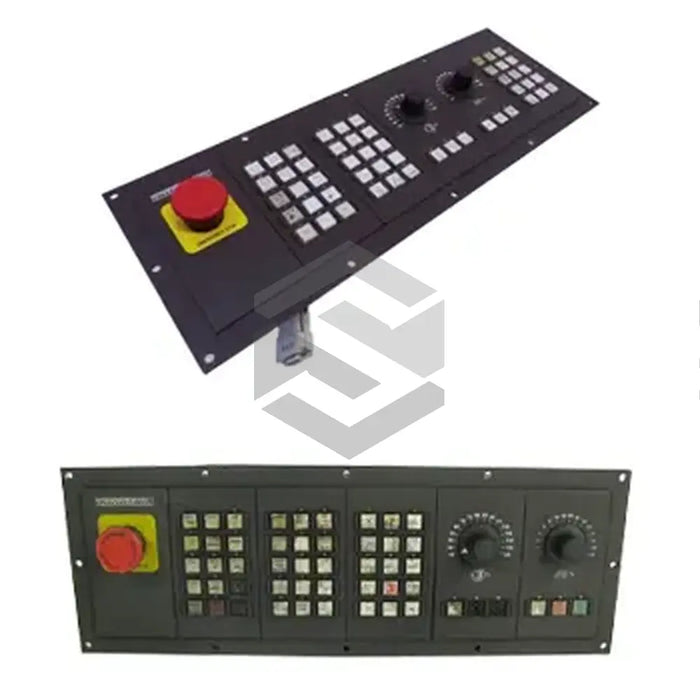

This operator panel is equipped with six dedicated module slots, each configurable for specific control tasks. Module Slot 1 is populated by an Emergency-Stop Module for immediate machine shutdown, ensuring operator safety. Module Slots 2, 3, and 6 each house a Keyboard Module, writeable, providing customizable input for specialized commands. Module Slot 4 integrates a Spindle Override Module, enabling fine adjustment of spindle speed, while Module Slot 5 includes a Feed Override Module for real-time feedrate modification. The master board’s dual-channel I/O architecture supports seamless communication between the control system and connected modules, while the line and design specifications guarantee compatibility with existing BTM03 infrastructure.
Built for demanding industrial environments, the BTM03.1-NA-TA-TA-SA-VA-TA-2EA-FW offers modular expandability and high operational reliability. The inclusion of multiple writeable keyboard modules and dedicated override modules enhances workflow efficiency and precision control. Its construction adheres to industrial durability standards, with robust connectors and a secure mounting design that resists vibration and electrical noise. By consolidating safety, input flexibility, and override functionality in a single panel, this product delivers streamlined setup, reduced downtime, and improved operator productivity, making it an ideal choice for advanced manufacturing and automation applications.
