BTM15.2-NA

Original price $3,021.75 - Original price $3,021.75
Original price
$3,021.75
$3,021.75 - $3,021.75
Current price $3,021.75
Available, Shipping Varies

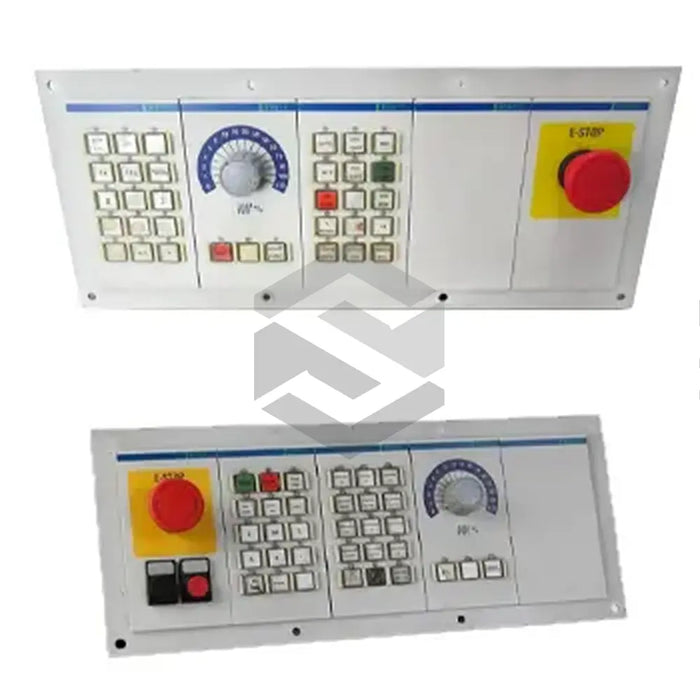

The BTM15.2-NA is a machine operator panel developed by Bosch Rexroth Indramat, equipped with an emergency stop module. It features an InterBus-S bus module, a basic rack, and 16 local inputs and outputs on its motherboard. It uses a unique addressing system with no need for hardware address selection. Its back panel features distinctive green and red LEDs indicating bus activity and status. The device is designed with IP 65 front plate protection, withstanding up to 1500 m above sea level in altitude, and a maximum power dissipation of 20 W. It operates within a temperature range of 5°C to 45°C. The panel, accompanied with a powder-coated, RAL 7037 dust gray-colored front plate, should be kept condensation-free, and supports upto 85% occasional operating humidity. Its specific use should align with the manufacturer's recommended applications. This panel is delivered in specialized packaging to ensure safe transit.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Machine Operator Panel
  • Unique Address: Yes
  • InterBus-S Bus Module: Yes
  • Connection Type: From remote bus to local bus
  • Basic Rack: Yes
  • Local Inputs: 16
  • Local Outputs: 16
  • Addressing System: Hardware address selection not required
  • Emergency Stop Module: Located in first slot
  • Supply Voltage Connection: At the X2 connecting point
  • LED Indicators: Green (RemoteBus Check and Bus Active), Red (LocalBus Disable and RemoteBus Disable)
  • Operation Under Water: Not Supported
  • IP Protection Class: IP 65
  • Installation Altitude: 1500 m over sea level
  • Maximum Power Dissipation: 20 W
  • Insulation: Class F
  • Ambient Operating Temperature Range: 5 °C to 45 °C
  • Front Plate Color: RAL 7037 dust gray
  • Surface: Powder Coated
  • Special Conditions: Free of condensation, 75% average operating humidity, 85% occasional operating humidity
  • Packaging: Custom Military Grade
