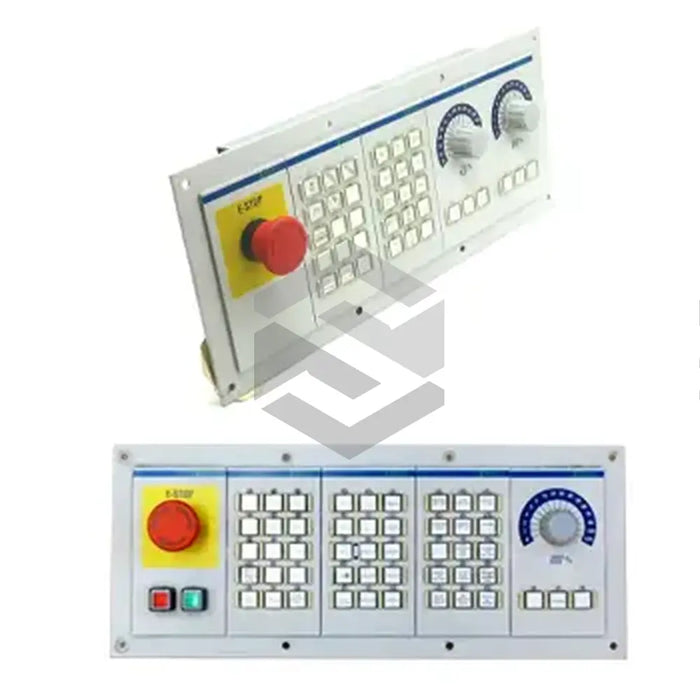

The Bosch Rexroth Indramat BTM16.2-TA-TA-VA-SA-HA-2EA is a machine operator panel designed for use with the BTV30 machine terminal. It is a line 16, 2-panel unit equipped with a 2EA master board and has a TA-TA-VA-SA-HA configuration. The panel houses essential elements such as keys with LEDs, spindle and federate overrides, handwheel, and an emergency stop button. It includes two programmable keypad modules, a federate and a spindle override module. The right module slot can be fitted with an emergency stop button or a handwheel. With 39 programmable and labelable keys each with a corresponding LED, it offers flexibility. It also provides 16 inputs and 16 outputs for connecting externally mounted display or control elements. Connectivity with an MTC200 or MT-CNC SPS is possible via an InterBus-S remote bus interface, making it a viable alternative to BTM15 operator panels.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: BTM16.2-TA-TA-VA-SA-HA-2EA
  • Product Type: Machine Operator Panel
  • Design: Line 16, 2-panel with 2EA master board
  • Configuration: TA-TA-VA-SA-HA
  • Features: Keys with LEDs, Spindle overrides, Federate overrides, Hand wheel, Emergency stop button
  • Keypad Modules: 2 (freely programmable)
  • Spindle Override Module: Yes
  • Extra Module Slot: Yes
  • Keys: 39 (freely programmable)
  • LEDs: 39 (related to keys)
  • External Connections: 16 inputs, 16 Outputs
  • External Handwheel Connection: Optional
  • Connection Capabilities: Can connect to MTC200 or MT-CNC SPS via InterBus-S remote bus interface
