BTV20.2CA-28B-11D-D-FW

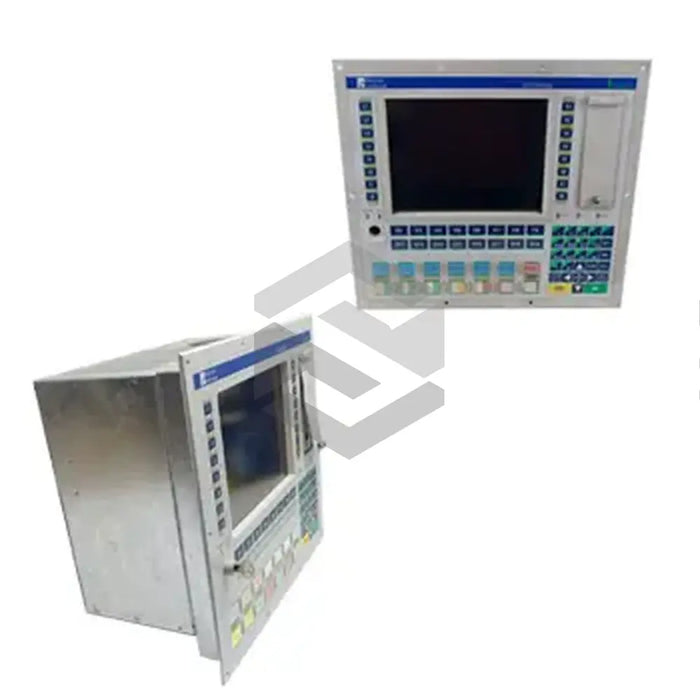

The Bosch Rexroth Indramat BTV20.2CA-28B-11D-D-FW operator panel is part of the BTV20 Machine Operator Panels series by Bosch Rexroth Indramat. Designed for seamless integration into industrial automation environments, it features a nominal connecting voltage of DC 24 V and a primary storage solution with a disk drive 3.5 inch, 1.44 MB mounted. With 128 MB RAM, this panel delivers responsive performance for operator interface tasks and is specially configured to support the mandatory export certification (MTC) function mode for secure data handling.
This Machine Operator Panel carries a design number of 2 and belongs to product line 20. The panel function type is configured as MTC, and the system is shipped ready for factory assignment under the system configuration code "Factory Assigned." A standard keyboard outfitted with 16 machine function keys on both left and right sides offers intuitive control and quick access to critical operations. The base system configuration requires a minimum of 1 GB of storage, a clock speed of at least 200 MHz, and includes an RS485 (SIS) interface for robust serial communication. Note that firmware must be ordered separately as a sub position to match specific application requirements.
Built for reliability and efficiency, the BTV20.2CA-28B-11D-D-FW panel ensures compatibility with a broad range of Bosch Rexroth Indramat controllers and peripheral devices within the BTV Panel family. Its modular architecture allows straightforward upgrades of memory and firmware, facilitating long service life and minimal downtime. The inclusion of an export certificate as part of the MTC function underlines the panel’s compliance with international trade regulations and enhances data security. By combining a responsive user interface, versatile I/O communication, and rugged construction, this operator panel delivers significant benefits in industrial settings, including reduced commissioning time, improved uptime, and consistent performance under demanding conditions.
