BTV20.2EA-64B-11D-D-FW

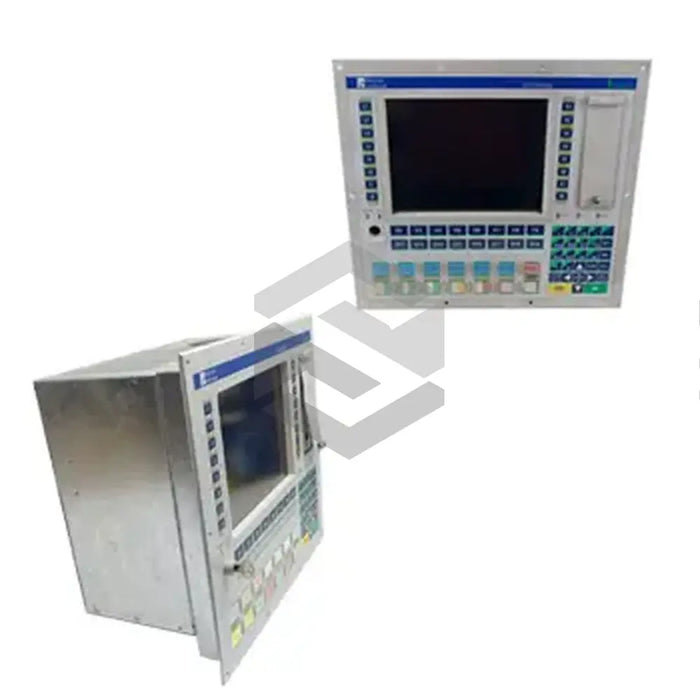

The BTV20.2EA-64B-11D-D-FW operator panel by Bosch Rexroth Indramat joins the robust BTV20 Machine Operator Panels series, offering a versatile human-machine interface for demanding industrial environments. This panel runs on a nominal connecting voltage of DC 24 V and features a disk drive 3.5 inch, 1.44 MB mounted for reliable primary storage purposes. With a Design number 2 chassis engineered for durability, this unit supports advanced functionality in material handling, manufacturing, and automation control. The compact footprint and ergonomic layout make it ideal for control cabinet integration or standalone mounting, ensuring seamless operator access in tight spaces.
Technical capabilities of the BTV20.2EA-64B-11D-D-FW include a 64 MB RAM memory capacity that enables rapid data buffering and application execution. The base system configuration specifies a minimum of 1 GB storage, a 200 MHz processor, and an RS485 (SIS) interface for serial communication, all factory assigned to ensure consistent performance. Users can select from multiple panel function types, including MTA, export version, and configure the MTC (export version) function mode for region-specific compliance. Although Firmware must be ordered as a separate sub position, the modular design simplifies updates and field upgrades without major downtime. Robust voltage regulation and surge protection within the input voltage circuitry guarantee resilience against electrical disturbances.
Operational features emphasize user-friendly controls and flexible input/output options. A standard keyboard layout incorporates 16 machine function keys on both the right and left sides, streamlining task navigation and quick-access commands. The rugged panel face meets industrial protection standards, while the export-oriented function mode provides localized menus and diagnostics. The design architecture prioritizes quick replacement and serviceability, minimizing mean time to repair. Integrated RS485 communication supports remote monitoring and data logging, enabling predictive maintenance and improved uptime.
Integration into existing automation systems is straightforward thanks to the panel’s compatibility with the broader BTV Panel product family and 20 product line modules. This operator panel interfaces seamlessly with programmable logic controllers and drives via standard serial links and supports custom HMI applications. The factory-assigned system configuration ensures consistency across installations, while the modular base configuration accommodates future expansions. Ideal for packaging machines, conveyor systems, and CNC workstations, the BTV20.2EA-64B-11D-D-FW balances performance and flexibility in any industrial control scenario.
