BTV40.1AHB-256S-P5C-UN-FW

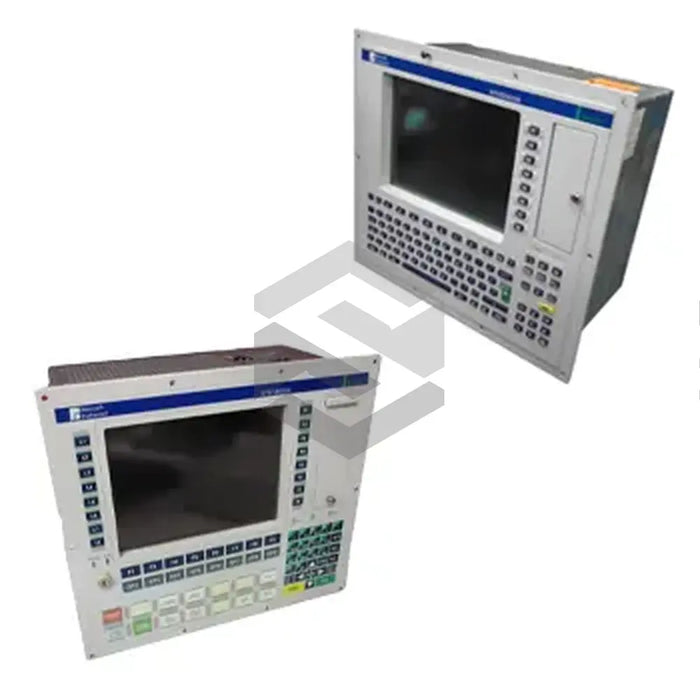

The Bosch Rexroth Indramat BTV40.1AHB-256S-P5C-UN-FW is a robust PC-based machine control terminal from the BTV30 Machine Control Terminals series. Designed for seamless integration into IndraControl L25 systems, this terminal operates on a 24 V DC power supply and supports an operating ambient temperature range of +5 °C to +55 °C. Its primary function is to provide a reliable operator interface for monitoring and controlling industrial processes, offering clear visual feedback and intuitive controls for efficient machine operation.
Equipped with a high-resolution 15" TFT display delivering 1024 × 768 pixel resolution and 256,000 colors, the BTV40.1AHB-256S-P5C-UN-FW ensures crisp, vibrant visuals under a variety of lighting conditions. The integrated keypad facilitates rapid menu navigation and parameter entry, while the USB interface enables straightforward data exchange with peripherals such as storage devices, printers, and external systems. Designed to operate within an IP20 protection rating, the terminal’s electronics are shielded against solid objects greater than 12 mm, ensuring reliable performance in typical manufacturing environments.
Built to withstand industrial conditions, this terminal carries certifications including DIN EN 60204-1, DIN EN 61131-2, UL/CSA, and CE, assuring compliance with international safety and performance standards. It integrates directly into Rexroth IndraControl L25 installations and can endure transport temperatures from –25 °C to +70 °C. These qualifications, combined with its ambient range and robust construction, make the BTV40.1AHB-256S-P5C-UN-FW particularly durable and efficient for continuous operation. In industrial automation applications, this terminal delivers improved uptime, simplified maintenance, and enhanced operator productivity, driving better process control and overall system efficiency.
