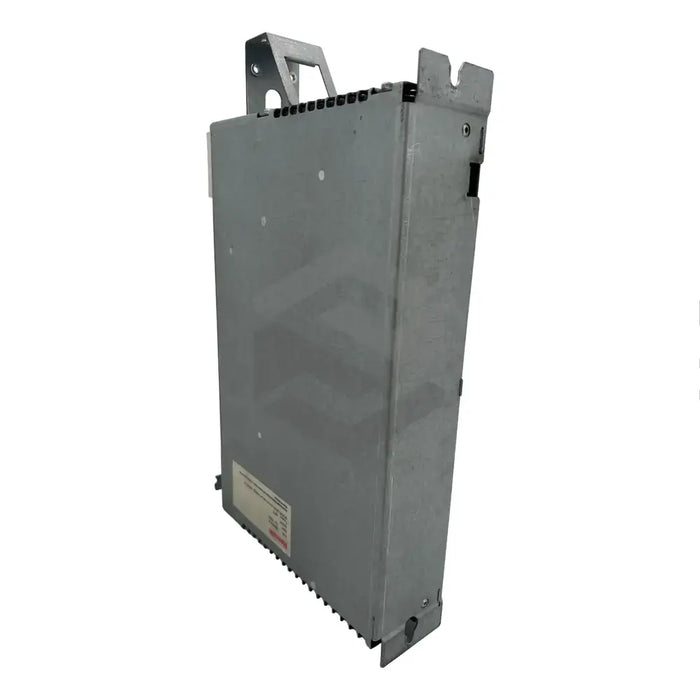

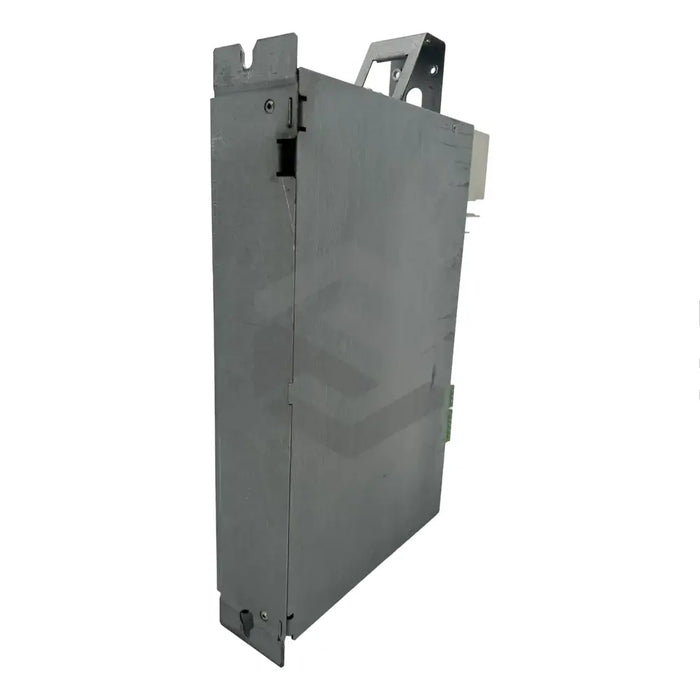

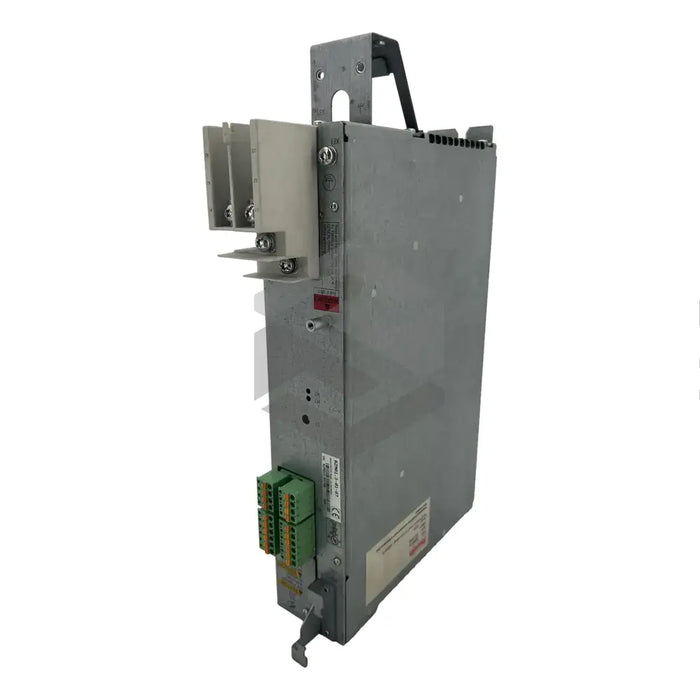

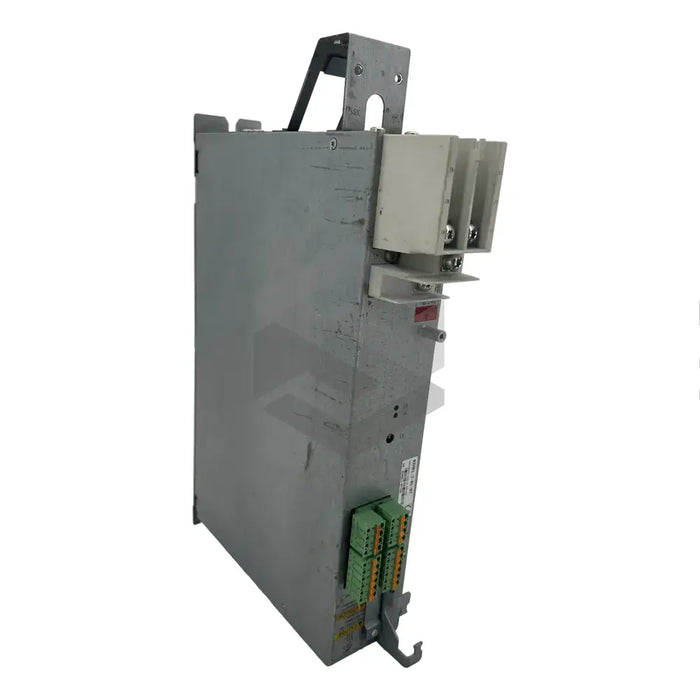

BZM01.3-01-07

Original price $3,894.11 - Original price $3,894.11
Original price
$3,894.11
$3,894.11 - $3,894.11
Current price $3,894.11
In Stock, Ships Today
Request a quote
This product overview is for Bosch Rexroth's BZM01.3-01-07, an auxiliary bleeder module compatible use in tandem with the ZKS DC bus internal dynamic brake. The 1kW drive, weighing around 7kg, allows support for both single and three-phase connection for added protection, and is internally mounted within a control cabinet. It has a current rating of 40A, and features a voltage category code of 07. This module functions best when connected with multiple bleeder modules and DKC drive controllers, for distributed regenerative power output and accumulation. Wire connections with a cross section of 24-16AWG can be accommodated with the X1 connector. This product will not function in the event of control voltage failure. Additional specifications include a maximum bleeder power of 120kW and a voltage rating of 480VAC/700VDC. The module also has CE certification.
30 Day Warranty
Technical Specifications
  • Product Type: Auxiliary Bleeder Module
  • Manufacturer: Bosch Rexroth
  • Product Series: BZM
  • Power Rating: 1kW
  • Weight: 7kg
  • Voltage Category Code: 07
  • Phase Connection: Single and Three Phase
  • Current Rating: 40A
  • Mount Type: Control Cabinet
  • Maximum Bleeder Power: 120kW
  • X1 Connector Type: Spring-type
  • Wire Connection: 24-16AWG Cross-section
  • Functionality Condition: Will not function if there is a control voltage failure
  • Series Code: 1
  • Version Code: 3
  • Voltage Rating: 480VAC/700VDC
  • Bb Contact Feature: Determine if the bleeder is ready for power application
  • Minimum Contact Load: 10mA
  • Maximum Switching Current: 1ADC
  • Maximum Switching Voltage: 40VDC
  • Certifications: CE Certified
  • Includes: Reset Key
  • Input Output Types: Digital and Analog Inputs and Outputs
