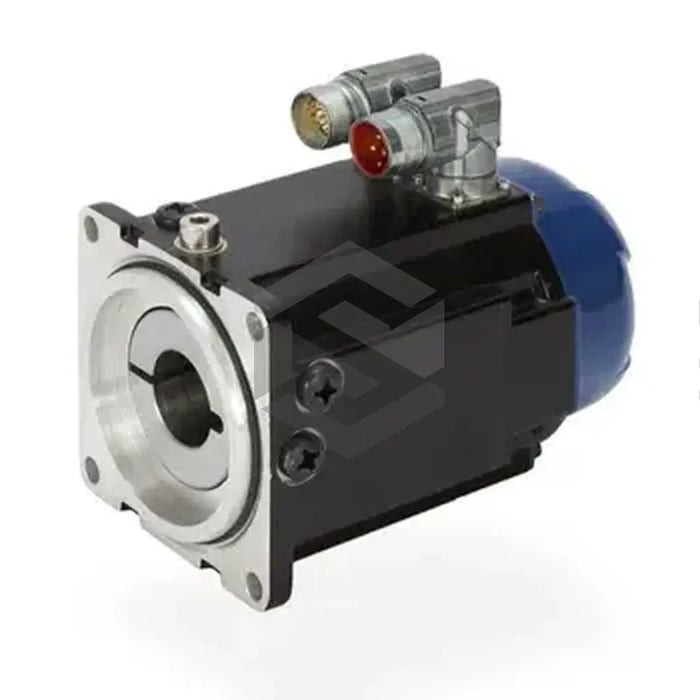

P image of C041A-13-3305

C041A-13-3305

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen C041A-13-3305 is a DDR motor that also doubles as a sealed cartridge. Its distinguishing features include a bearing-free design and a BiSS single turn absolute since encoder. The solid shaft field is equipped with a split ring coupling without a key. The motor has a frame size of 4.25 inches with a short stack, standard winding, standard flange mount, and a rear connector. Its crucial performance parameters include a constant torque of 4.57Nm, a consistent line current of 2.73A RMS, and a peak torque of 12.3Nm. The motor weighs 4.08 Kg and can reach a maximum speed of 1750rpm. The motor's installation time is significantly less than conventional servo motors and it can be mounted in any orientation. The design enables reduced assembly costs and enhanced accuracy and throughput due to features like low cogging and a high-resolution encoder.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

C041A-13-3305

Product Type

DDR Motor

Unit

Sealed

Bearing Design

Non Bearing

Encoder

BiSS Single Turn Absolute Sine

Shaft Field

Solid with Split Ring Coupling

Frame Size

4.25 inches

Stack

Short

Winding

Standard

Mount Option

Standard Flange

Connector

Rear

Continuous Torque

4.57Nm

Continuous Line Current

2.73amps RMS

Peak Torque

12.3Nm

Maximum Speed

1750rpm

Weight

4.08Kg

Installation Time

5 minutes

Throughput

Double that of mechanical transmission

Inertia Matching Need

No

Mounting Orientation

Flexible (Horizontal or Vertical)

Speed Range

Up to 2500RPM

Continuous Torque Range

Wide

Torque Output

Optimized

Accuracy

High

Noise Level

Reduced

Supplier

Servo Supplier
