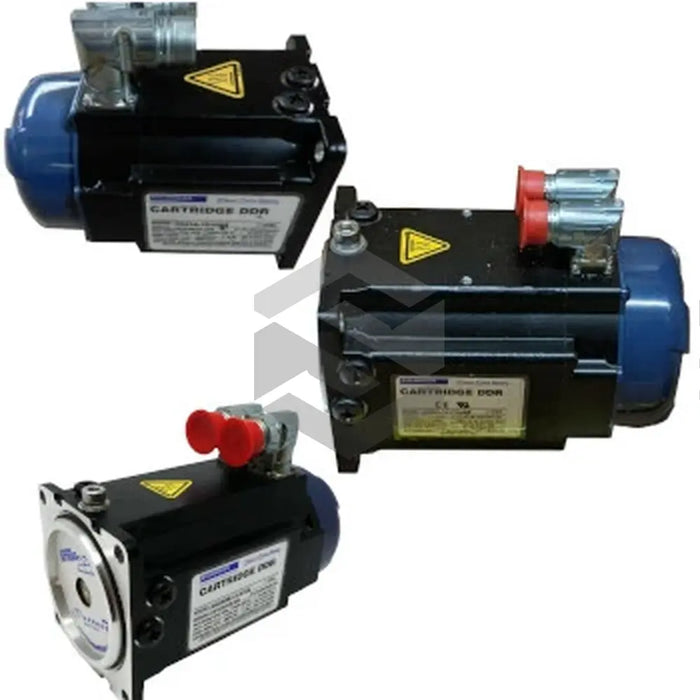

C044A-13-3305
by Kollmorgen
The C044A-13-3305, a cartridge DDR motor, is a premier product by Kollmorgen. Its distinct space-efficient design, coupled with exceptional performance, marks an industry-first. Installation is hassle-free, as its compact construction requires fewer additional components and utilizes the machine's bearings to support the rotor. It features a unique electromagnetic design, enhancing torque density by 50%. The motor incorporates a feedback device, rotor, and stator within its streamlined and cost-effective structure. This DDR system is wear-resistant, enhancing its lifespan and reliability. The C044A-13-3305 ensures improved accuracy and synchronization with other machines, exemplified by accurate print registration, exact indexing location, and zero backlashes. Its silent operation (20dB) supports a comfortable work environment. The motor weighs 8.84kg, with a rotor inertia of 14.9kg-cm3 and a peak torque of 37.4Nm. Its maximum speed reaches 1050RPM. Notably, for heat-sensitive applications, its continuous torque rating should be reduced to prevent overheating.
