S image of C0.5.5N2CH000

C0.5.5N2CH000

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

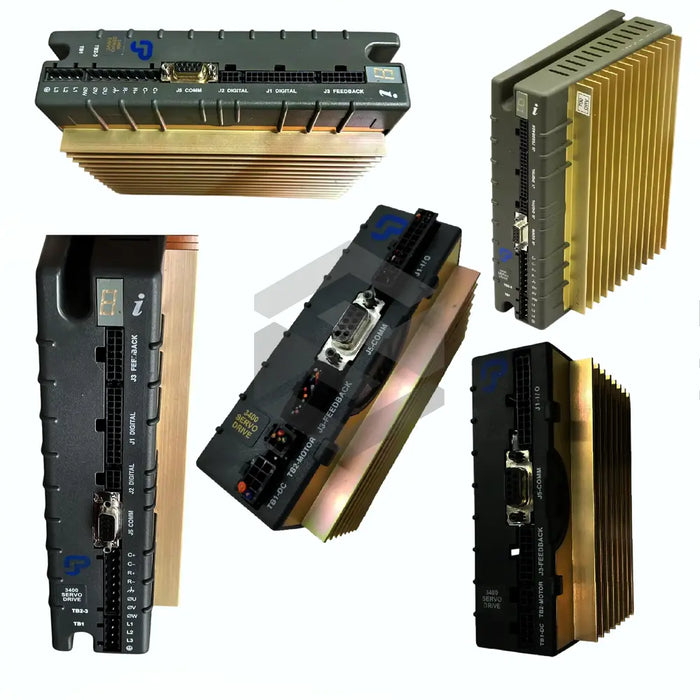

The C0.5.5N2CH000 servo drive from Pacific Scientific is part of the PC3400 Servo Drives series. It uses a 230 VAC three-phase input, delivers 500 W continuous power, and supports both brushless and brush DC motors. The drive offers RS-232, RS-422, and RS-485 communications, optically isolated high-speed digital inputs, and feedback via Hall sensors or differential encoders. It operates in 0 to 40 °C ambient conditions and carries a CE mark for industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Analog Inputs

+/- 10 VDC, 16 Bit

Communication Interfaces

RS-232, RS-422, RS-485

Digital Inputs - High Speed

3 High-Speed Inputs, optically isolated

Digital Outputs

Drive-OK/Brake Output, Isolated, 5-30 VDC, 50 mA Max

Environmental Specification

Operating Ambient Temp 0 to 40 °C, Storage Temp -25 to 70 °C

Feedback Devices

Hall Sensor, Encoder (differential), Tachometer

Input Voltage

230VAC, 3 Phase

Motor Types Supported

Brushless DC Motor, Brush DC Motor

Outputs

Two general-purpose outputs, max current 50 mA each

Power Output (continuous)

500 W

Regen Resistance

180 Ohm external

Regulatory Certification

CE Mark (European Community)

Software Provided

ToolPAC graphical interface for configuration

Update Capability

Configuration and Tuning Wizards
