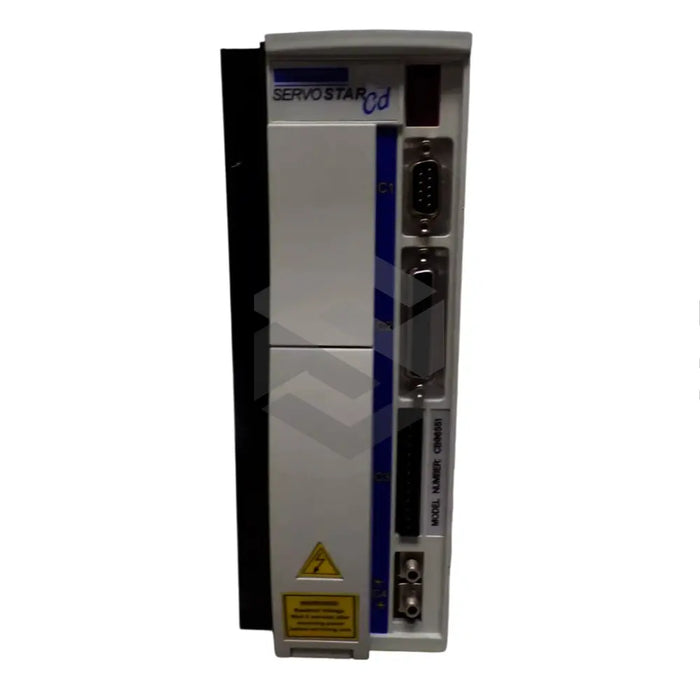

CB10560
by Kollmorgen
The Kollmorgen CB10560 is a high-performance drive from the CD Servostar CD Drives series designed for demanding motion control applications. Featuring a continuous current rating of 10 A (Arms) and a peak current capacity of 20 A (Arms) for 500 ms, it delivers robust power handling in dynamic load conditions. With a typical PWM frequency of 8 kHz, the CB10560 ensures smooth commutation and minimized electrical noise, making it ideal for precision industrial automation tasks.
Incorporating an Analog control interface, the CB10560 offers flexible integration into existing control systems while providing intuitive configuration. Its sine encoder feedback guarantees precise and repeatable positioning, essential for high-accuracy processes. The drive accepts an input voltage range of 230 VAC and maintains logic power at 300 V for stable internal operation. Protection features include an under-voltage trip at 90 VDC and an over-voltage trip at 430 VDC, safeguarding the system against voltage transients and ensuring reliable uptime.
Built for efficiency and durability, the CB10560 manages internal heat dissipation of 132 W, preserving thermal stability under heavy workloads. The compact unit weighs only 2.69 kg, facilitating installation in space-constrained cabinets. For additional safety, it is equipped with 15 A line fuses and can withstand surge currents up to 30 amps, ensuring resilience to power spikes. This drive’s combination of precision feedback, robust power delivery, and integrated protection makes it a valuable component in industrial automation, enhancing system reliability and reducing maintenance requirements.
