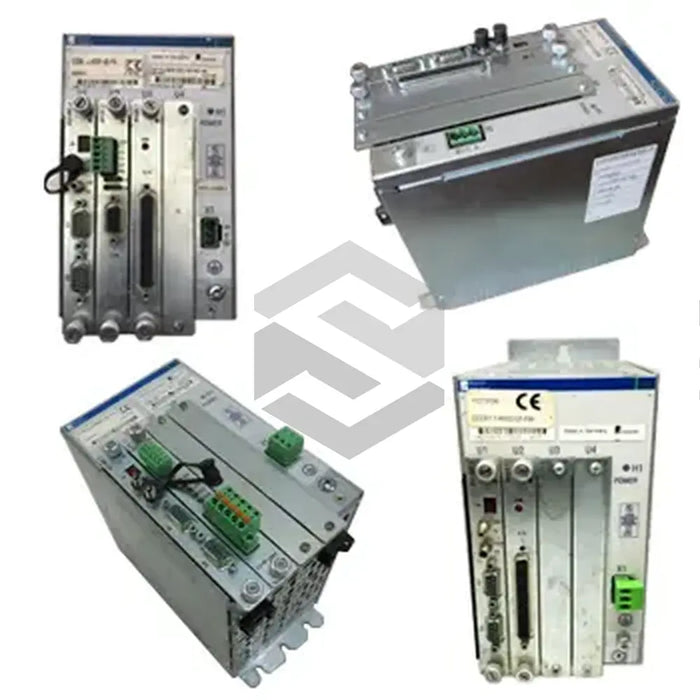

manufacturer image of CCD01.1-KE19-01-FW

CCD01.1-KE19-01-FW

by Bosch Rexroth Indramat
$12,940.00 - $12,940.00
$12,940.00
$12,940.00 - $12,940.00
$12,940.00
In Stock, Ships 1 - 2 Days
Produced by Bosch Rexroth Indramat, the CCD01.1-KE19-01-FW model is part of the CCD series box terminal. Designed to facilitate cross-communication with the advanced control section using a SERCOS III interface, it adheres to IEEE 802.3 standards and includes two connectors. Telecommunication connections are possible via CAT 5 terminals, with the RJ 45 type connectors each having eight pins. This model features essential differential inputs which receive RD+ and RD- 10/100 Base-T signals and differential outputs which transmit the TD+ and TD- 10/100 Base-T signals. Shipped with firmware for optimal functionality, its compatibility encompasses 10 Base-T and 100 Base-T signals. The product's housing offers a shield connection, and various LED indicators are incorporated to signify operational status, data transmission, and network availability. Ensure efficient operation and monitoring with the CCD01.1-KE19-01-FW box terminal.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CCD01.1-KE19-01-FW
  • Product Type: Box Terminal
  • Connectors: Two, RJ 45 type, 8 pins
  • Communication Interface: SERCOS III, IE 802.3 standards
  • Connections: Can be established using CAT 5 terminals
  • Shield Connection: Built into housing
  • Differential Inputs: RD+ and RD-, 10/100 Base-T signals
  • Differential Outputs: TD+ and TD-, 10/100 Base-T signals
  • Firmware: Available separately, ensures proper functioning
  • Interface Compatibility: 10 Base-T and 100 Base-T signals, IEEE 802.3i and IEEE 802.3u standards
  • Indication LEDs: H1: power status, H10 and H12: data transmission status, H11 and H13: network connection availability.
