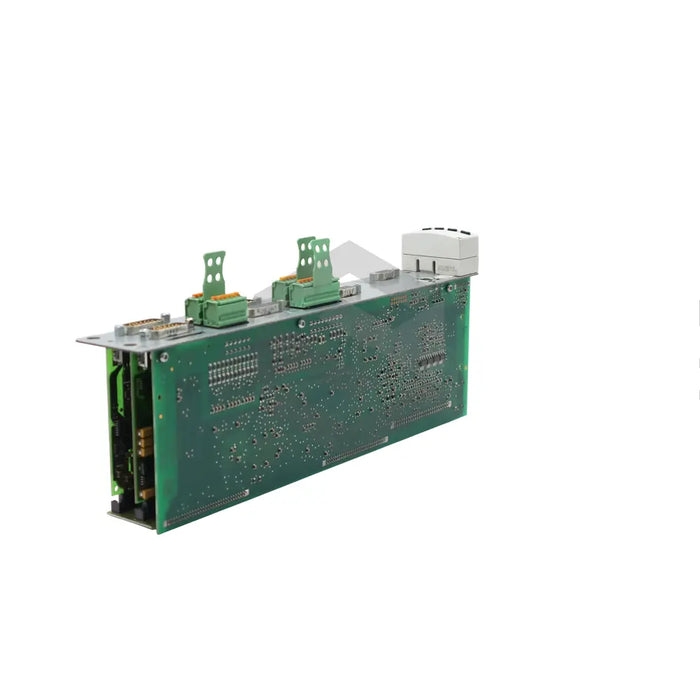

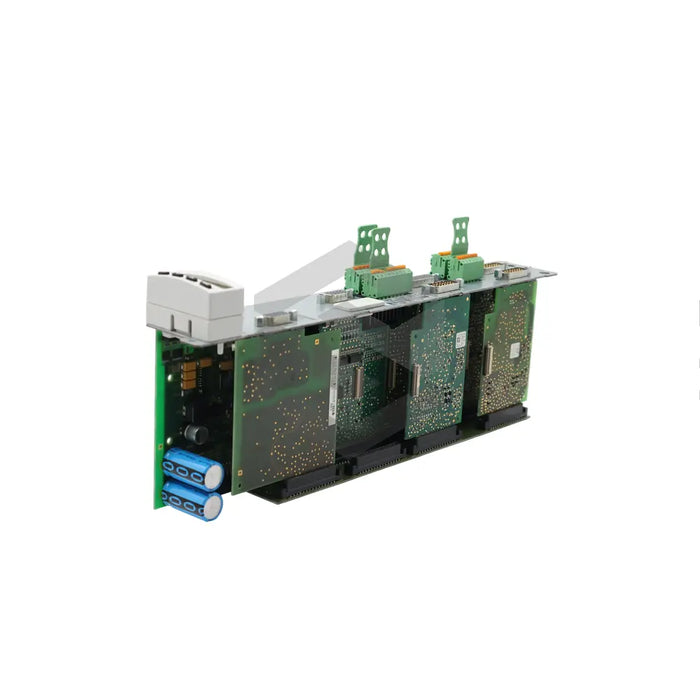

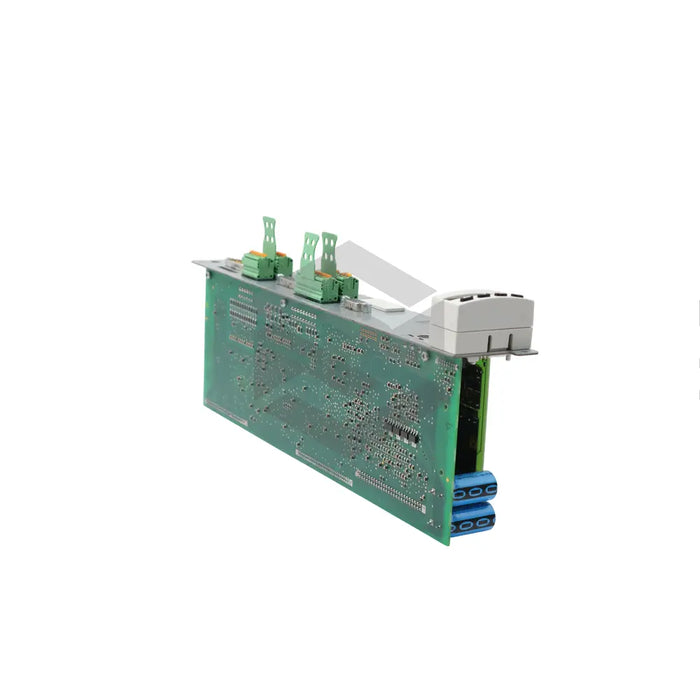

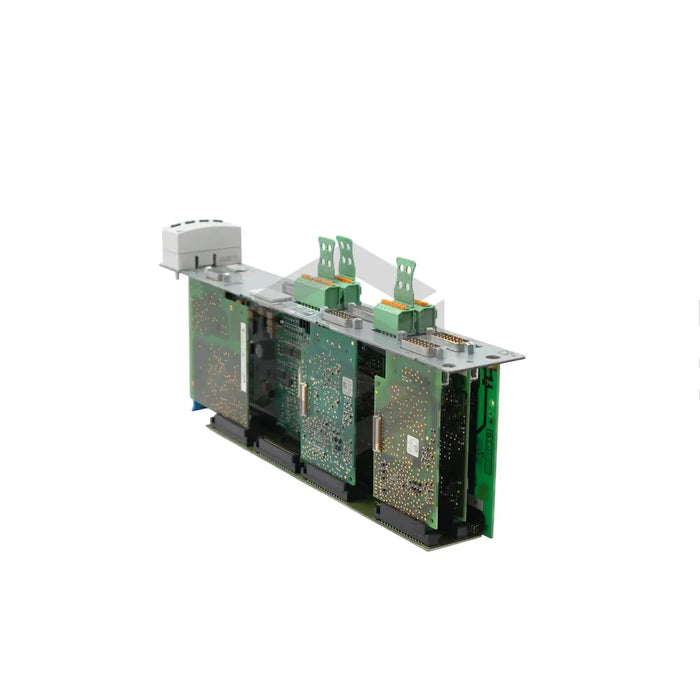

series image of CDB01.1C-PB-EN1-EN1-EN2-EN2-L1-S-NN-FW

CDB01.1C-PB-EN1-EN1-EN2-EN2-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's CDB01.1C-PB-EN1-EN1-EN2-EN2-L1-S-NN-FW is a robust, lightweight controller that forms an integral part of their automated drive system. It incorporates a PROFIBUS master communication suite for rapid, dependable data transfer, and is specifically engineered to support various types of encoder interfaces, including EnDat 2.1, 1Vpp, and TTL, connected through dedicated terminals. This model features safety elements including a starting lockout mechanism to prevent unintentional startups during maintenance. Additionally, it comes with a standard control panel equipped with display for operational statistics and error messages, with keys for navigating the control unit. Note that it requires sufficient cooling due to heat emission during continuous running, thus necessitating ample ventilation space. Firmware for the CDB01.1C-PB-EN1-EN1-EN2-EN2-L1-S-NN-FW must be purchased separately from Servo Supplier.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Motion Control Accessories
  • Model: CDB01.1C-PB-EN1-EN1-EN2-EN2-L1-S-NN-FW
  • Design: Robust and Lightweight
  • System Component: Integral part of Rexroth drive system
  • Communication: PROFIBUS master communication for fast data transmission
  • Connection Points: Dedicated terminals at X4.1 and X4.2 for encoder HSF and RSF connection
  • Encoder Interface Support: EnDat 2.1, 1Vpp, and TTL
  • Connection Points for Encoder: Dedicated points at X8.1 and X8.2 for supported encoder interfaces
  • Cooling Requirements: Sufficient cooling air for heat dissipation
  • Safety Features: Starting lockout to prevent accidental startup
  • Control Panel: Standard panel with a single line display and navigational keys
  • Ordering: Model and firmware ordered separately from Servo Supplier
