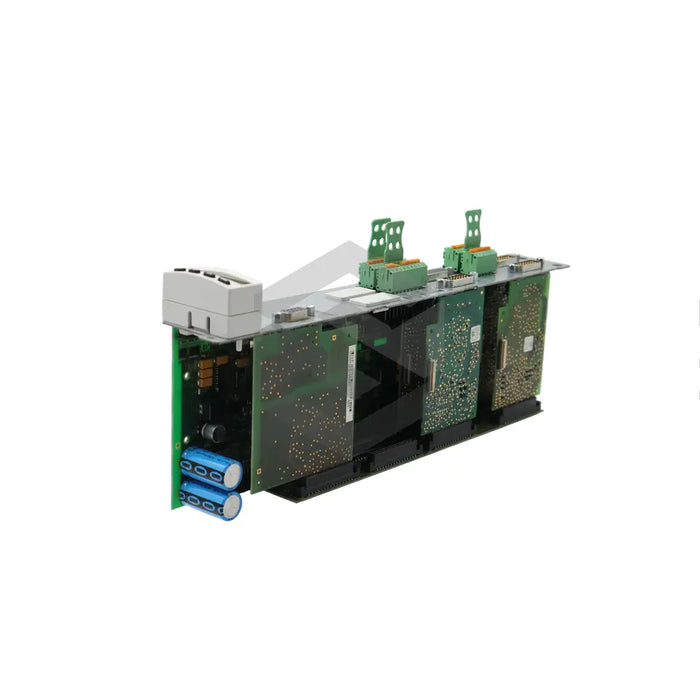

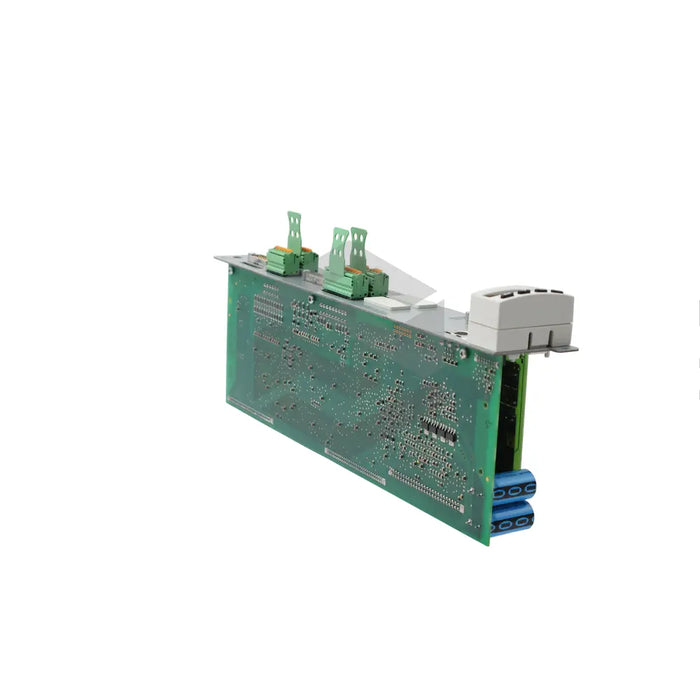

S image of CDB01.1C-PB-EN1-EN1-EN2-EN2-NN-S-NN-FW

CDB01.1C-PB-EN1-EN1-EN2-EN2-NN-S-NN-FW

by Bosch Rexroth Indramat
$4,208.91 - $19,208.73
$4,208.91
$4,208.91 - $19,208.73
$4,208.91

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's CDB01.1C-PB-EN1-EN1-EN2-EN2-NN-S-NN-FW is a basic universal double-axis control section utilised in their drive controller. This device is inserted into the power section, working with a motor to control and monitor performance. The unit is part of the CDB product group and comes with four optional slots for extra modules. It employs a PROFIBUS module for primary communication and features an 8-pole RS 232 serial interface for programming and diagnostics during commissioning and servicing. Notably, it can't operate with the VCP01.2 comfort control panel and should only be installed or removed by trained personnel. The device also includes an HSF/RSF encoder with a supply voltage of 8VDC or 12VAC. Running at switching frequencies of 2kHz, 4kHz and 8kHz, the device can often be hot to touch during operation. It must not be operated underwater and should only be used with approved accessories and parts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

CDB01.1C-PB-EN1-EN1-EN2-EN2-NN-S-NN-FW Double-Axis Control Section

Usage

Plugged inside the power section of a drive controller

Product Group

CDB

Slots

Four optional for additional modules

Communication

PROFIBUS module for master communication

Connector Type

9-pin D-Sub female X30

Configuration

Supported

Interface

Circular 8-pole RS 232 serial interface

Compatibility

Cannot be operated with the VCP01.2 comfort control panel

Optional Module

HSF / RSF encoder on its X4.1 connector

Encoder Supply Voltage

8VDC or 12VAC peak-to-peak

Mounting and Dismounting

By trained individuals only

Plug-in Actions

Limited

Accessory Compatibility

Approved ones only

Usage Limitation

Not to be operated underwater

Grounding Conductor Connection

Must be permanently connected before switching ON

Switching Frequencies

2kHz, 4kHz and 8kHz

Surface Temperature

Hot during operation

Shipping

Worldwide
