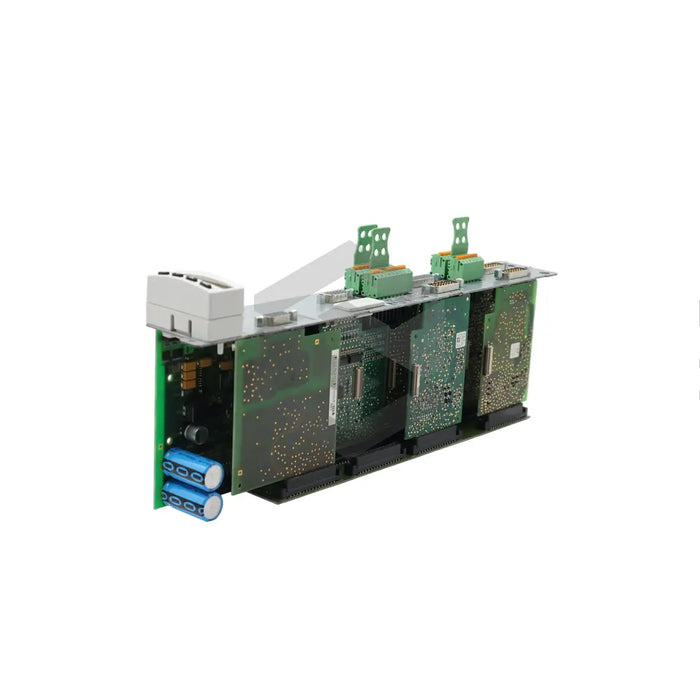

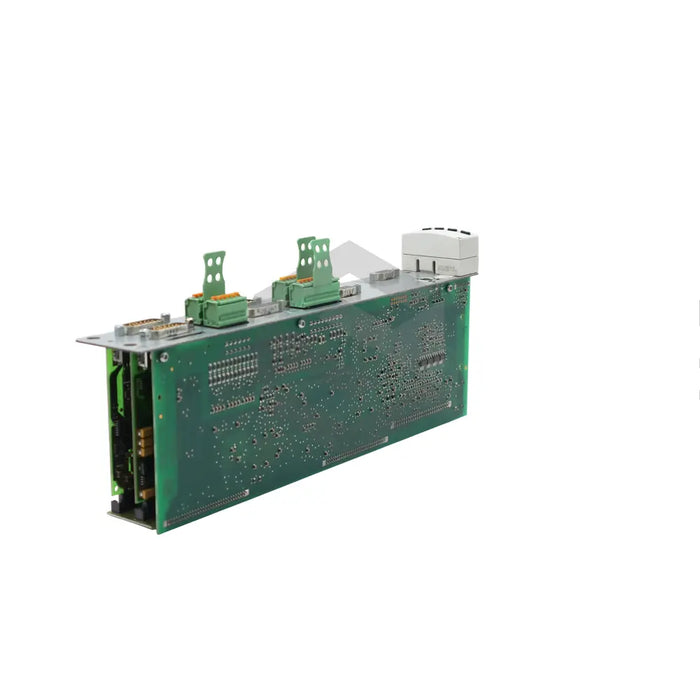

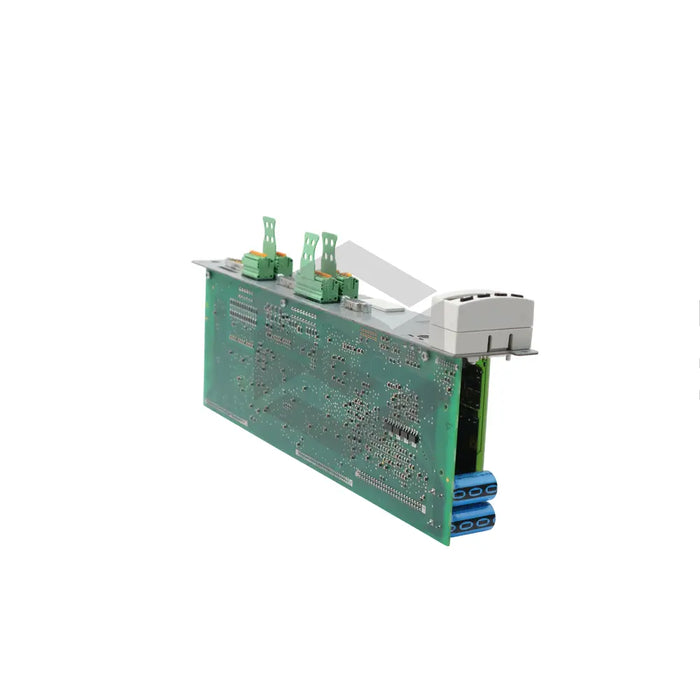

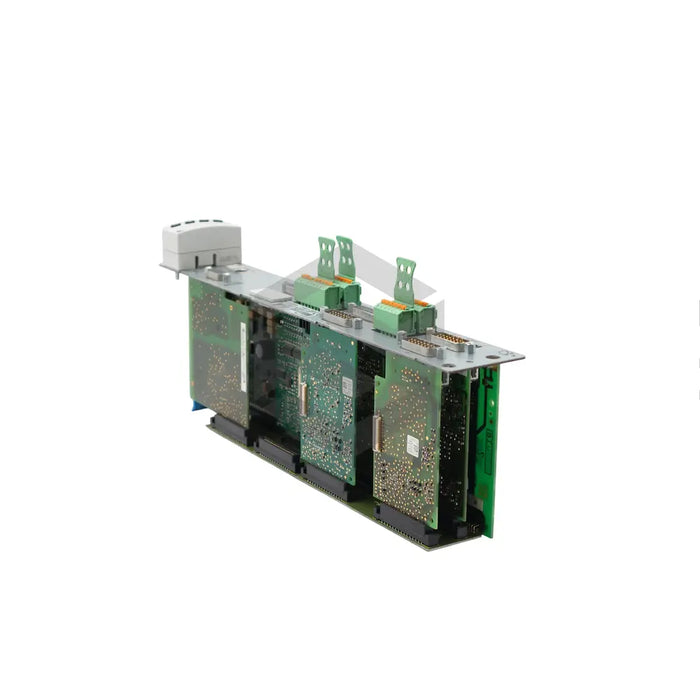

S image of CDB01.1C-PB-EN1-EN1-EN2-EN2-S2-S-NN-FW

CDB01.1C-PB-EN1-EN1-EN2-EN2-S2-S-NN-FW

by Bosch Rexroth Indramat
$4,208.91 - $19,208.73
$4,208.91
$4,208.91 - $19,208.73
$4,208.91

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CDB01.1C-PB-EN1-EN1-EN2-EN2-S2-S-NN-FW is a basic universal control section with a line code of 01, furnished with a type plate indicating its designation. This dual-axis device is equipped with a slot for a memory card and requires an external supply voltage for its digital input and output. It also features two configurable Type 2 and Type 3 digital inputs, with 24V voltage rating, 3mA current rating and a maximum output current rating of 35mA. The device's dimensions are 322.6 x 103 x 49.5mm and firmware needs to be separately acquired. The control section includes isolated inputs/outputs at its X31 and X32 connectors, a maximum transmission rate of 115k Baud via its single-node serial interface and supports application-based safety features due to its Safe Motion module. Connections are made via spring terminals and screw terminal blocks, preferably using wire ends without ferrules stripped to 10mm. To ensure its undamaged delivery worldwide, the control is packaged in custom military-grade casing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CDB01.1C-PB-EN1-EN1-EN2-EN2-S2-S-NN-FW

Line Code

01

Type

Double Axis Section

Memory Card Slot

Yes

External Supply Voltage Required

Yes

Number of Digital Inputs

Two of each Type 2 and Type 3

Probe Input Voltage

24V

Probe Input Current

3mA

Size

322.6 x 103 x 49.5mm

Firmware

Purchased Separately

Isolated Inputs/Outputs

Yes at X31 and X32 connectors

Max Pulse Width

60ms

Power Consumption

Varies by Module

Transmission Rate

115k Baud

Safety Functions Provided

Yes

Max Output Current

35mA

Load Resistance

35 Ohms

Connection Points

Spring Terminals and Screw Terminal Blocks

Wiring Recommendation

Wire ends without ferrules

Stripped Wire Length for Connection

10mm

Packaging

Custom Military-Grade
