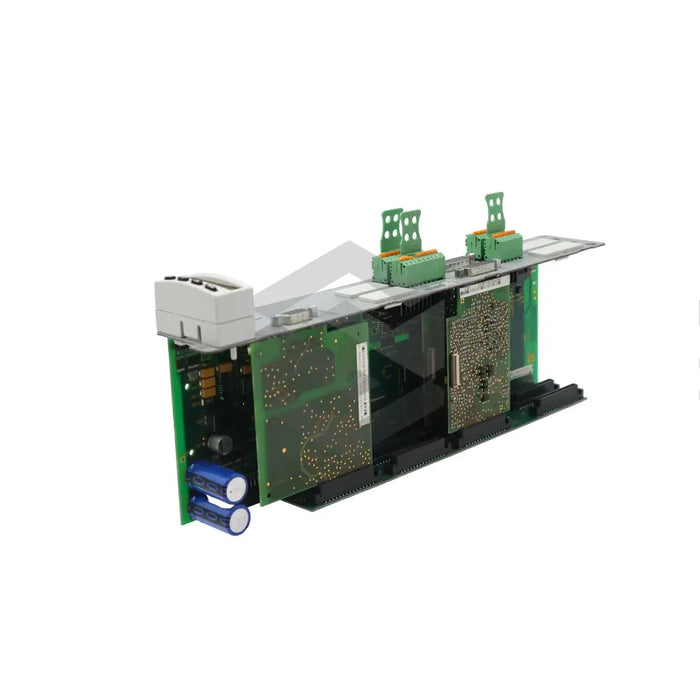

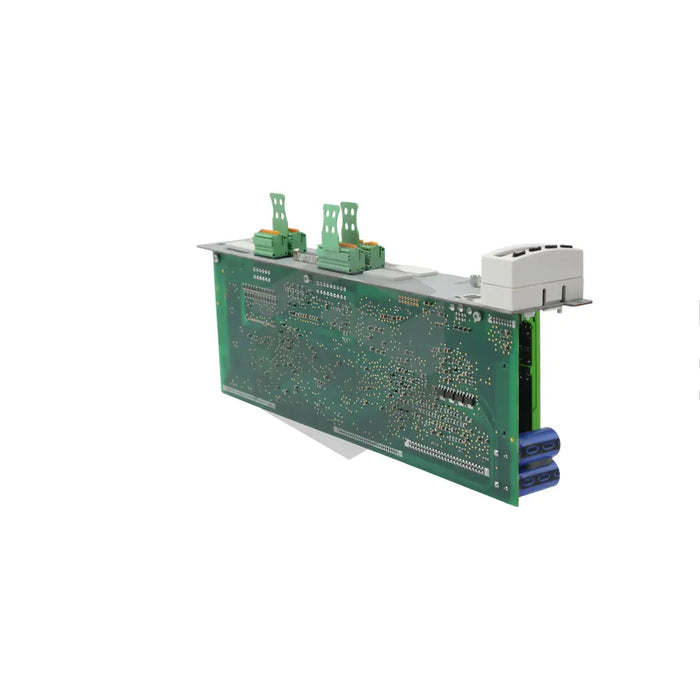

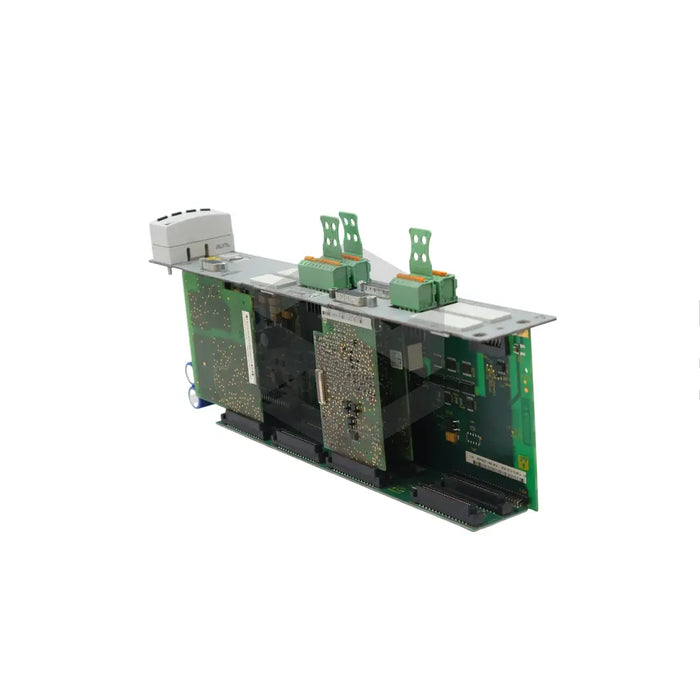

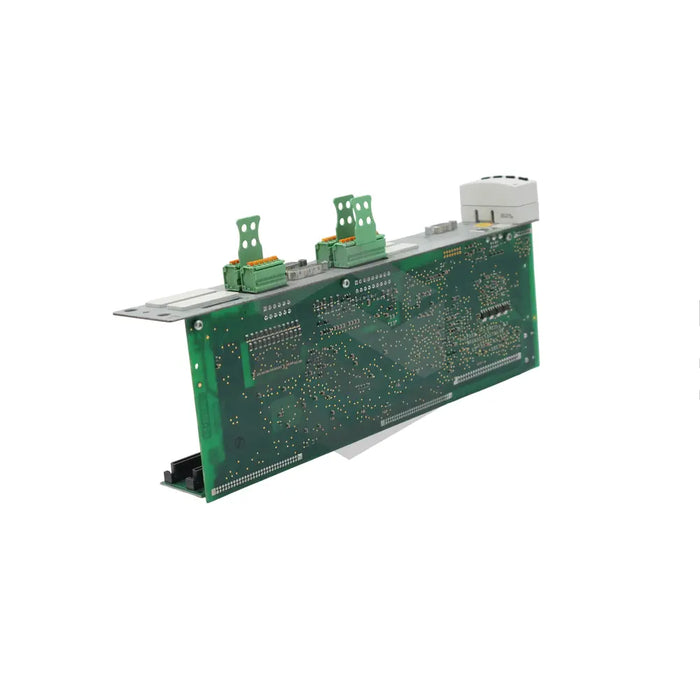

series image of CDB01.1C-PB-EN1-EN1-NNN-MEM-NN-S-NN-FW

CDB01.1C-PB-EN1-EN1-NNN-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's CDB01.1C-PB-EN1-EN1-NNN-MEM-NN-S-NN-FW is a double-axis control section designed for environments with stable temperatures. It comes with one normally open relay contact with 10ms pickup and dropout delays and must not connect to public low-voltage mains for residential use. Its drive controller operation is dependent on meeting national EMC regulations. The device requires careful handling, especially during cleaning, maintenance, and long periods of non-usage, and should only be touched after being powered off for about half an hour to cool down. Equipped with three factory-set I/Os serving as travel range limit switches and a home switch, it uses a MEM interface to emulate increment encoder and absolute value signals, eliminating the need for an external power supply. Proper mounting, installation, transportation, and storage are crucial for safe and optimal operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-PB-EN1-EN1-NNN-MEM-NN-S-NN-FW
  • Usage: Industrial Applications – Not suited for extreme temperature fluctuations or use in public low-voltage mains supplying residential areas
  • Relay Contact: One normally open with 10ms pickup delay and 10ms dropout relay
  • Electrical Safety: Do not touch connection points when power is ON – disconnect during cleaning/maintenance and after long periods of non-use
  • Cool-Down Period: Wait half an hour after power OFF before touching
  • Device Mounting: Required suitable equipment
  • Digital Inputs: Sixth and seventh are parallel to the first analog input
  • Relay Contact Current Rating: 1A
  • Relay Contact Voltage Rating: 24VDC
  • Factory Setting Features: Three I/Os as travel range limit switches and a home switch
  • Interface: MEM interface to emulate incremental encoder and absolute value signals – signals do not need external power and are isolated from the circuit board
  • Shipping: Available for shipping to preferred destinations.
