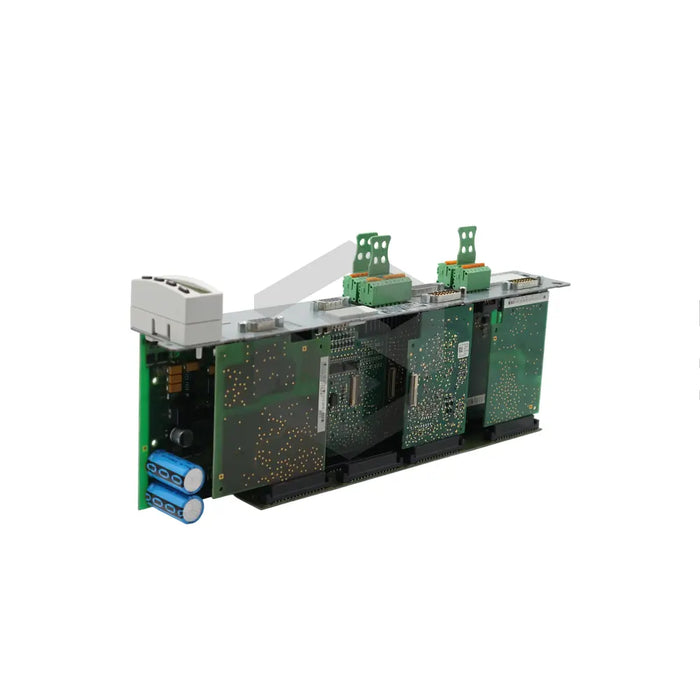

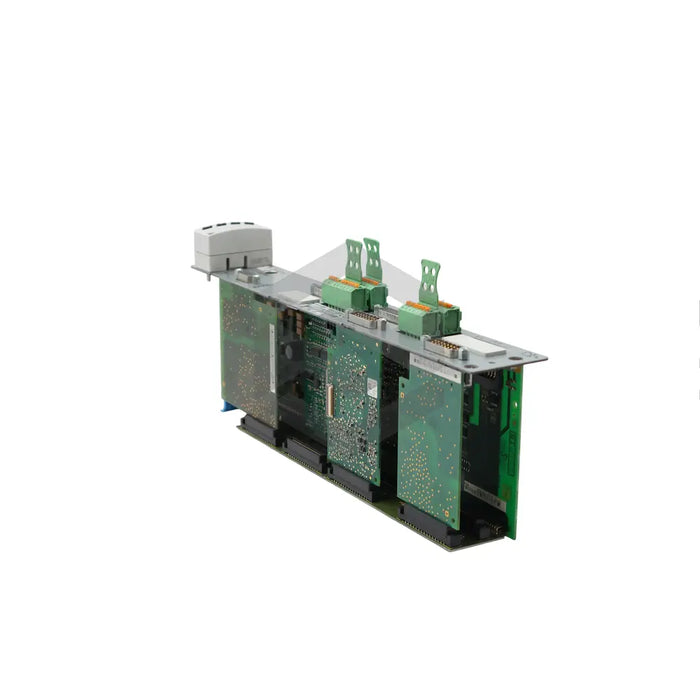

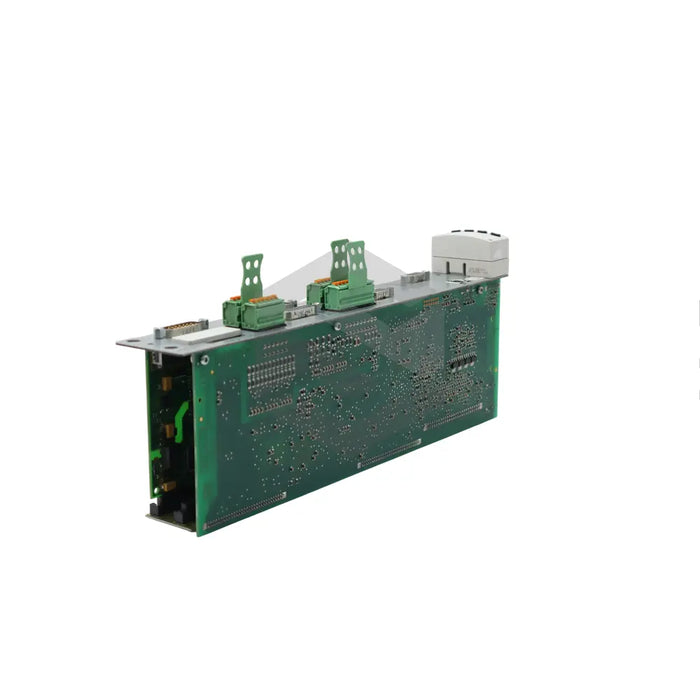

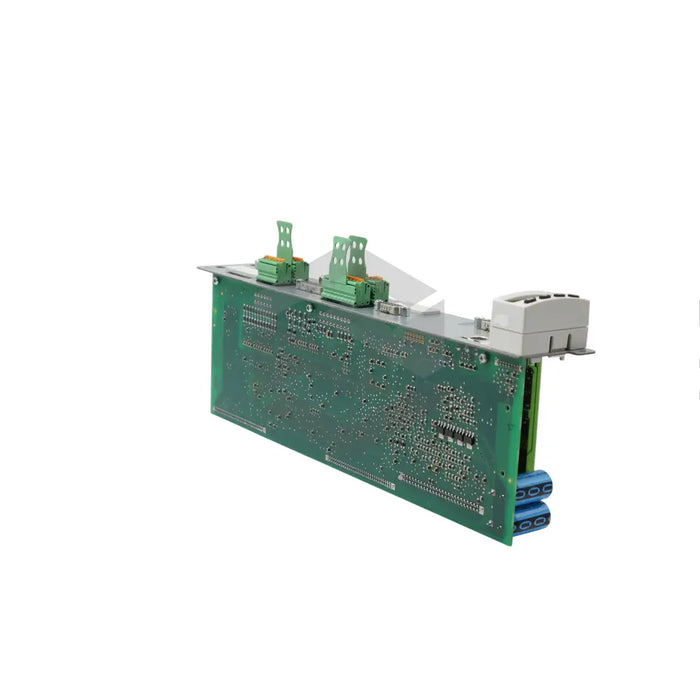

series image of CDB01.1C-PB-EN1-EN1-NNN-MEM-S1-S-NN-FW

CDB01.1C-PB-EN1-EN1-NNN-MEM-S1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat CDB01.1C-PB-EN1-EN1-NNN-MEM-S1-S-NN-FW is a technical control section designed for dual axes. The device is specifically designed for installation within a drive controller's power section and requires a vertical orientation. It's important to note that improper usage may result in elevated voltage and current. Therefore, it's essential that this control section remains connected to its grounding conductor at all times. Additionally, modifications to the unit (i.e., removing or inserting optional modules) should not occur while the device is powered on, as this may cause unpredictable and potentially dangerous movement in the drive controller. The control section includes one analog input, two analog outputs, and a 9-pin D-sub X41 connector for safety technology I/O. To guarantee optimal functionality, the unit must be plugged in prior to switching on the drive controller. It's also compatible with a PFM02.1 multimedia card, useful for data storage and retrieval. This product can be shipped globally and comes with a one-year backup support.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-PB-EN1-EN1-NNN-MEM-S1-S-NN-FW
  • Direction of Installation: Vertical Orientation
  • Voltage and Current: High Due to Incorrect Use
  • Operation Safety: Permanent Connection of Equipment Grounding Conductor Required
  • Module Safety: Not Supposed to be Plugged in or Removed When Powered ON
  • Danger Possibility: Yes, Due to Faulty Motor Control, Wrong Parameter Input, Improper Cable or Wiring Connection, and Defective Components
  • Analog Inputs: 1
  • Analog Outputs: 2
  • Minimum SERCOS Cycle Time: 1,000µs
  • Safety Technology I/O: Available Through 9-pin D-sub X41 Connector
  • Control Panel Interface: Available on the Front of the Product
  • Hot Plug Recommendation: Not Recommended
  • Control Panel Features: Single-Line Display and Four Keys
  • Support for Multimedia Card: Yes, Compatible with PFM02.1 multimedia card
  • Shipping: Eligible for Global Shipping
  • Backup Support: 1 Year
