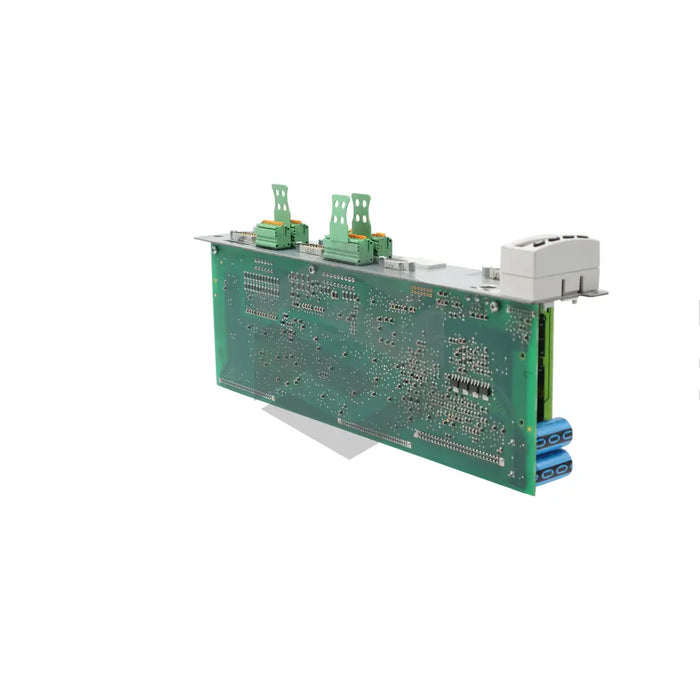

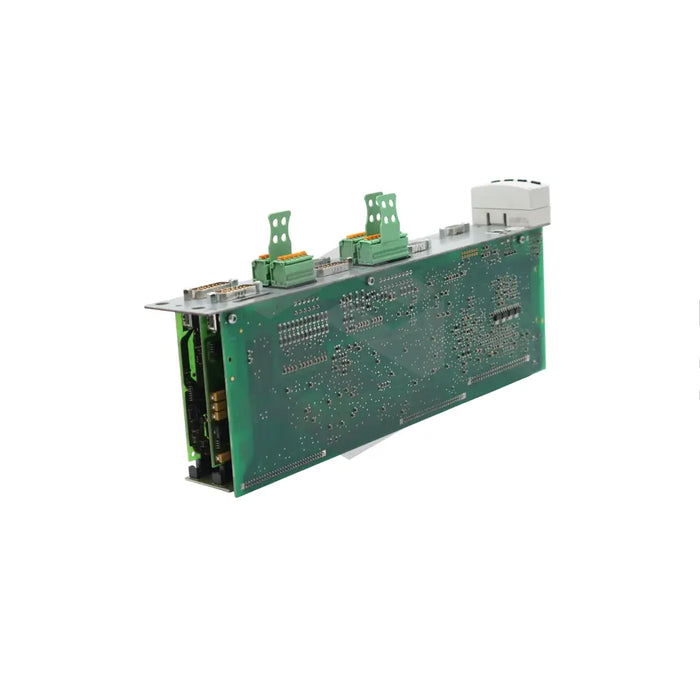

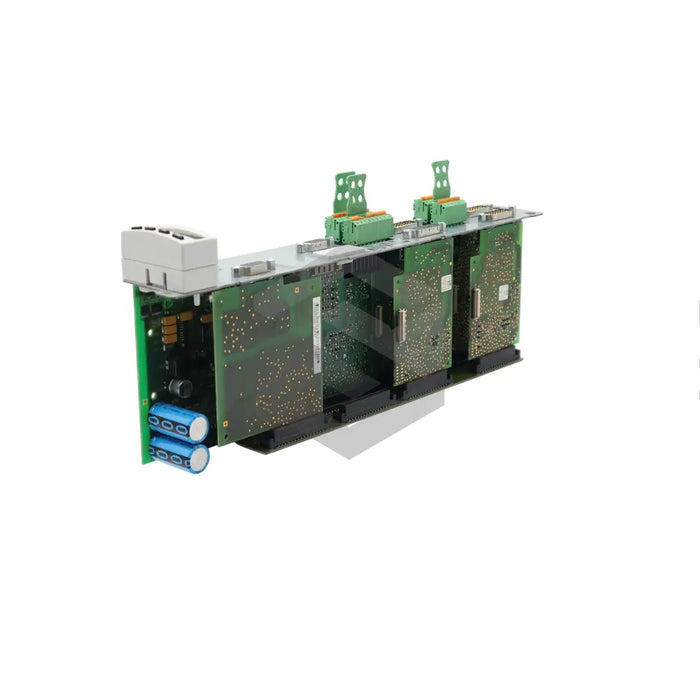

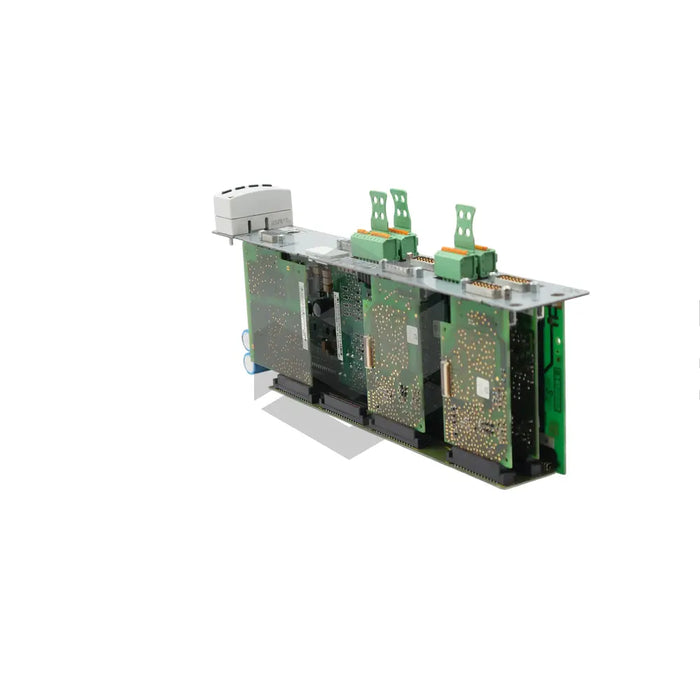

CDB01.1C-PB-ENS-ENS-EN2-EN2-L1-S-NN-FW

Request a quote
The CDB01.1C-PB-ENS-ENS-EN2-EN2-L1-S-NN-FW, manufactured by Bosch Rexroth Indramat, is a component of the Rexroth IndraDrive drive system, specially crafted for efficiency and versatility. Designed as a part of the BASIC UNIVERSAL range, this double-axis control section dynamically operates in conjunction with compatible power sections for applications such as mounting systems, food processing and packaging machines, and machine tools. One of its key features is the PROFIBUS control communication option, enabling cyclical information exchange. The control section also provides two standard encoder evaluation interfaces for IndraDyn S (MSK) motors and sin-cos encoder. Safety measures include a starting lockout, compliant with the EN 60204-1 requirement, to shield users from accidental operations. Classified as a C3 category product according to IEC 61800‑3, it is recommended solely for industrial use. The operational ambient temperature range is 0o C to 40o C to ensure optimal performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CDB01
  • Product Type: Double-axis control sections
  • Range: BASIC UNIVERSAL
  • Model: CDB01.1C-PB-ENS-ENS-EN2-EN2-L1-S-NN-FW
  • Control Communication: PROFIBUS
  • Encoder Evaluation Interfaces: Two standard
  • Encoder Systems: IndraDyn S (MSK) motors and the sin-cos encoder (1 Vpp)
  • Supply Voltage for Encoders: 12 V
  • Resolver and HSF Encoder Evaluation Interfaces: Two
  • Supply Voltage for Resolver and HSF Interfaces: 8 V DC or 18.2 V AC peak-peak
  • Safety Feature: Starting lockout
  • Compliance with EN 60204-1: Yes
  • Product Category according to IEC 61800‑3: C3
  • Suitable Use: Industrial areas
  • Ambient Temperature during Operation: 0o C and 40o C
