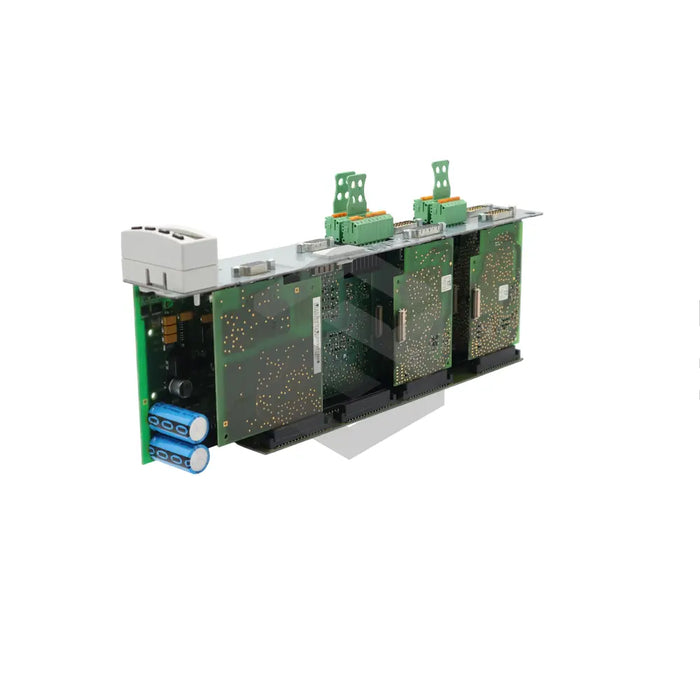

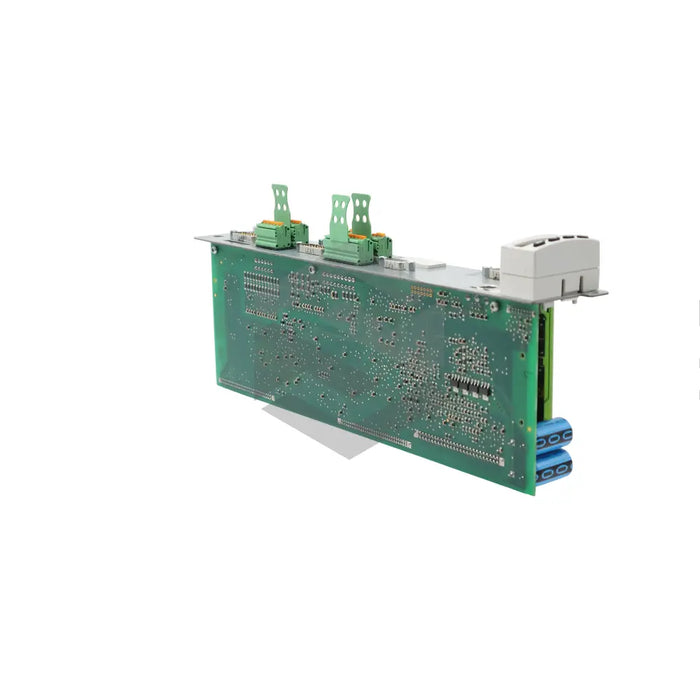

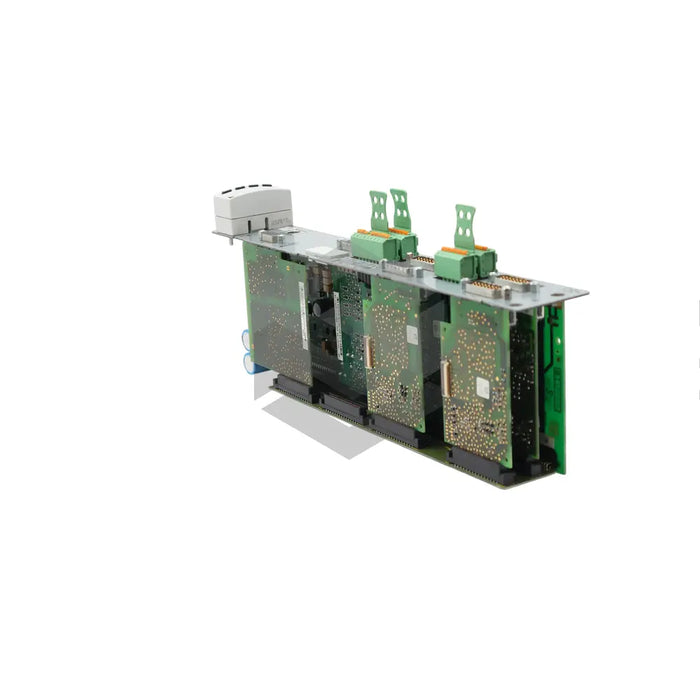

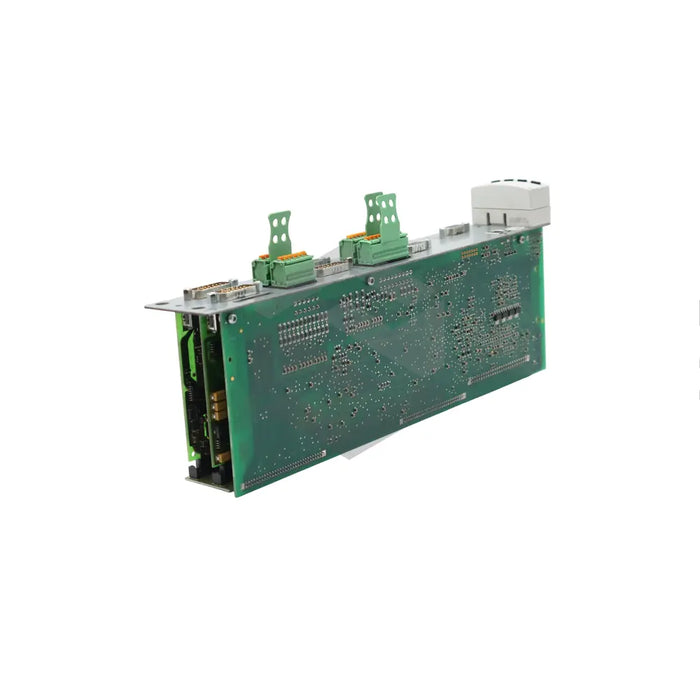

series image of CDB01.1C-PB-ENS-ENS-EN2-EN2-L2-S-NN-FW

CDB01.1C-PB-ENS-ENS-EN2-EN2-L2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's CDB01.1C-PB-ENS-ENS-EN2-EN2-L2-S-NN-FW belongs to the CDB01 series of double-axis control sections that are part of the Rexroth IndraDrive drive system. This control unit facilitates control and monitoring of electrical motors, epitomizing Bosch Rexroth's engineering expertise. The PROFIBUS control communication module allows the CDB01.1C model to communicate effectively with the drive system. The control section, easily mounted and dismounted in the drive controller's power section, accommodates up to 20 connections. Its connectivity features include to two encoder evaluation interfaces of 12 Volts and two Resolver and HSF encoder evaluation interfaces of 8 Volts DC or 18.2 Volts AC. Utilizing an optional MultiMediaCard, users can access and store firmware, operating data, and axis-oriented drive parameters. Other capabilities include setting the drive address, establishing the position data reference, and accessing the error memory via a standard control panel. Safety is ensured with a Safe Torque Off (STO) feature rated at category 3 PL e/SIL 3.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CDB01
  • Product Type: Control sections
  • Product Model: CDB01.1C-PB-ENS-ENS-EN2-EN2-L2-S-NN-FW
  • Function: Controlling and monitoring electrical motors
  • Configuration: Double-axis
  • Feature: Compact
  • Mounting: Can be mounted and dismounted (Maximum 20 times)
  • Communication: PROFIBUS control communication module
  • Interfaces: Two standard encoder evaluation interfaces, two Resolver and HSF encoder evaluation interfaces
  • Encoder supply voltage: 12 Volts (Standard), 8 Volts DC or 18.2 Volts AC (Resolver and HSF)
  • Removable Memory Option: MMC (MultiMediaCard)
  • Control Panel: Standard
  • Control Panel Functions: Setting the drive address, establishing the position data reference, reading the error memory
  • Safety Features: Safe Torque Off (STO)
  • Safety Rating: Category 3 PL e/SIL 3
