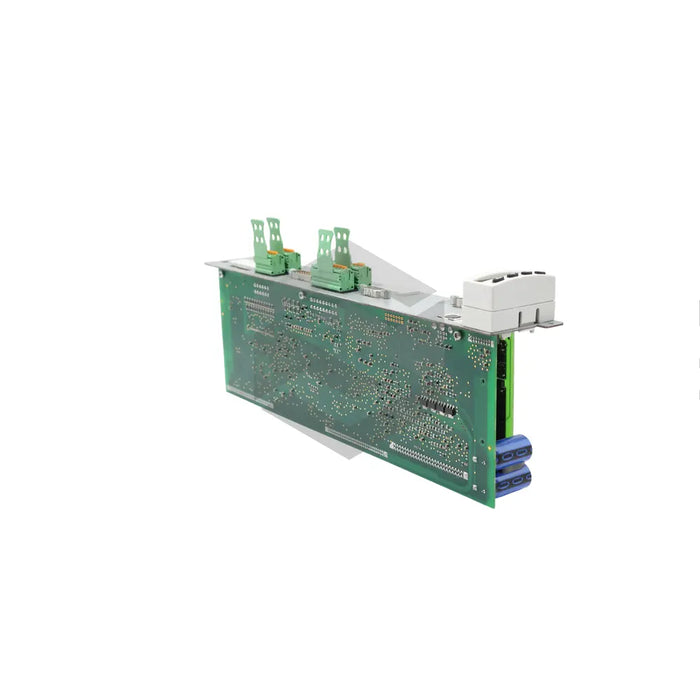

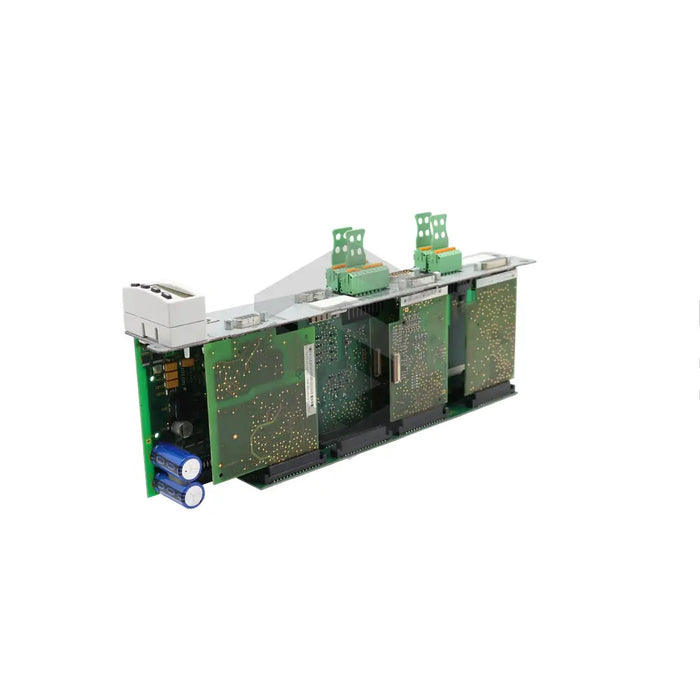

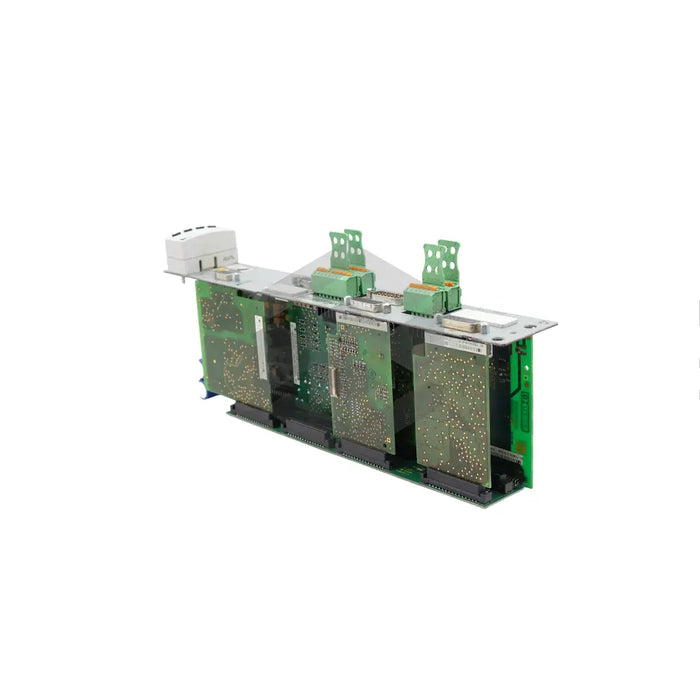

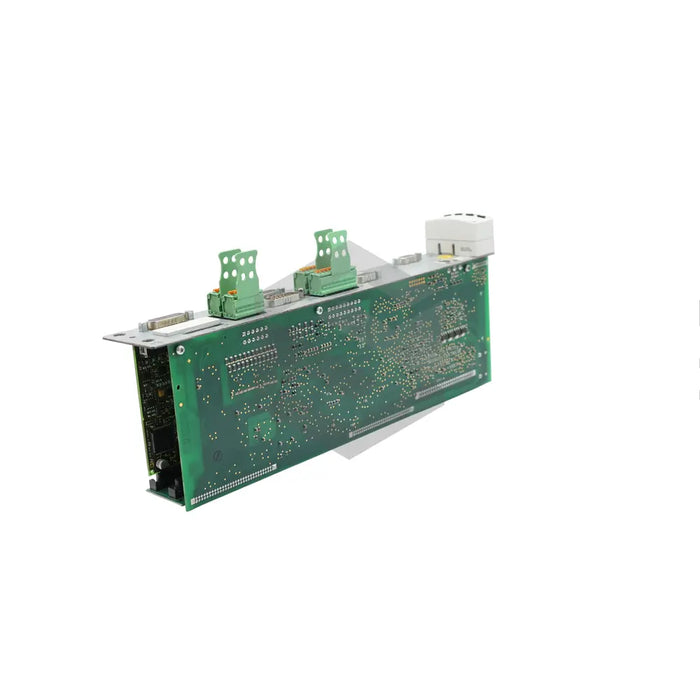

series image of CDB01.1C-PB-ENS-ENS-NNN-MA1-L1-S-NN-FW

CDB01.1C-PB-ENS-ENS-NNN-MA1-L1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-PB-ENS-ENS-NNN-MA1-L1-S-NN-FW, part of Bosch Rexroth's CDB01 series, is an advanced double-axis control system used in a variety of applications such as food processing, handling systems, and paper processing machines. It features innovative components like synchronous and asynchronous servo motors, converters, inverters, and control devices. This specific model utilizes PROFIBUS communication technology and contains two standard encoder interfaces. These interfaces are compatible with several encoder systems, boosting the device's functionality. Furthermore, it includes an Analog I/O extension module which allows for superior resolution of analog channels. It's worth noting that, as a C3 product as per IEC 61800‑3, this device is unsuitable for residential usage due to potential high-frequency interference. With an inbuilt standard control panel, the system allows for easy commissioning, fault navigation, drive address setting, and manipulation of analog outputs.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Rexroth IndraDrive
  • Product Series: CDB01
  • Product Model: CDB01.1C-PB-ENS-ENS-NNN-MA1-L1-S-NN-FW
  • Type: Control Section
  • Communication System: PROFIBUS
  • Encoder Interfaces: 2 Standard
  • Supported Encoder Systems: MSK series servo motors, 1 Vpp sin-cos with reference track, 5V-TTL square-wave with reference track, 1 Vpp sin-cos with Hiperface interface
  • Supply Voltage for Encoders: 12V
  • Analog I/O Extension Module: Yes
  • Category: C3 according to IEC 61800‑3
  • Maximum Pulse Width: 60ms
  • Typical Inrush Current: 6A
  • Control Panel: Standard
  • Functionality of Panel: Commissioning, fault navigation, setting drive address, setting analog outputs
