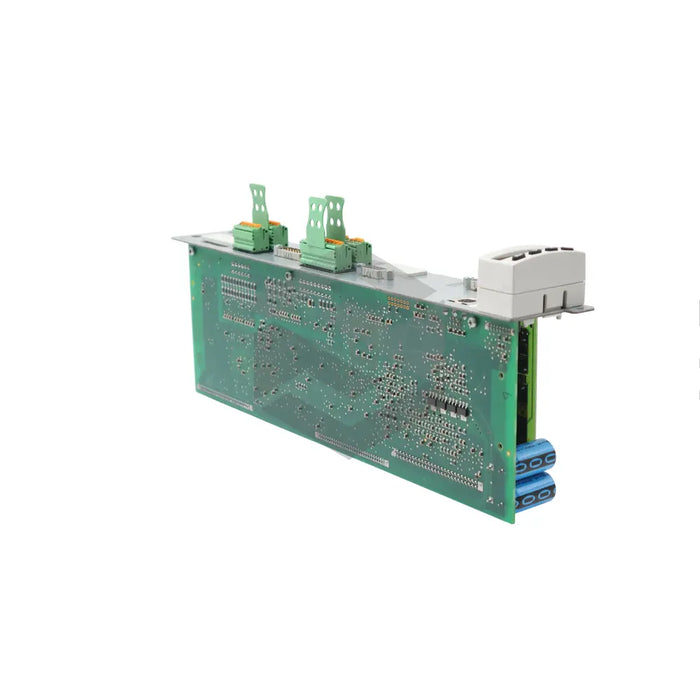

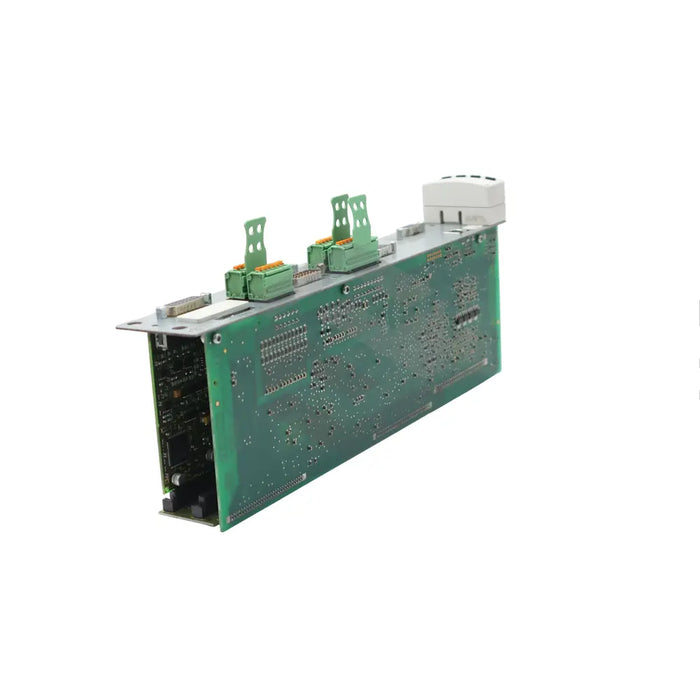

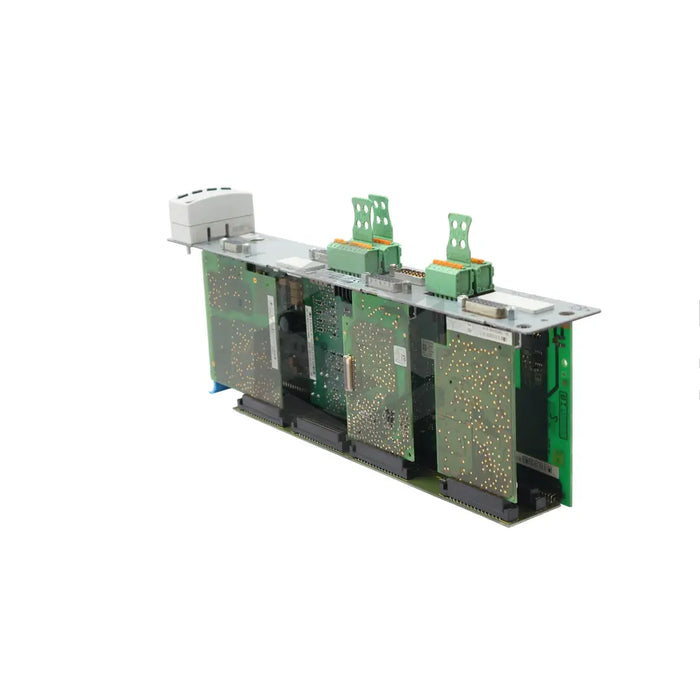

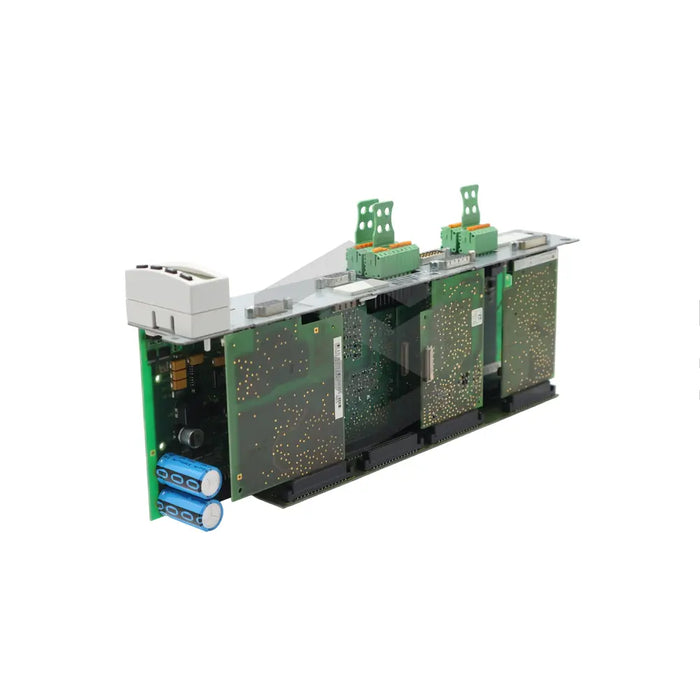

S image of CDB01.1C-PB-ENS-ENS-NNN-MA1-S2-S-NN-FW

CDB01.1C-PB-ENS-ENS-NNN-MA1-S2-S-NN-FW

by Bosch Rexroth Indramat
$4,795.32 - $19,208.73
$4,795.32
$4,795.32 - $19,208.73
$4,795.32

In Stock, Ships 1 - 3 Days

The CDB01.1C-PB-ENS-ENS-NNN-MA1-S2-S-NN-FW is a control section produced by Bosch Rexroth Indramat, a key attribute of the manufacturer's drive controller and an element of the CDB product group. This unit features two axes and boasts a customizable, basic universal section. Its communication is managed via a PROFIBUS module that is attached at the X30 point through a 9-pin D-Sub connector. This module, with a signal voltage of 5V +/*-10% and a maximum 75mA repeater supply current, may be susceptible to overload damages. To control and monitor motor operations, it employs a standard control panel attached through the H1 interface, and has numerous digital inputs and outputs per IEC 61131, Type 1 specifications. This versatile product also conveniently includes an active terminating resistor, memory card slot, a Normally Open relay contact, two digital inputs operative as one analog voltage input, a RS 232 serial interface, and a 2W power consumption rated PROFIBUS module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CDB01.1C-PB-ENS-ENS-NNN-MA1-S2-S-NN-FW

Product Group

CDB

Number of Axes

2

Communication Module

PROFIBUS

Connector Type

9-pin female D-Sub

Connecting Point

X30

Signal Voltage

5V +/*-10%

Max Repeater Supply Current

75mA

Interface

H1

Digital Inputs

Yes

Digital Outputs

Yes

Compliance

IEC 61131, Type 1

Memory Card Slot

Yes

Relay Contact Type

Normally Open

Number of Digital Inputs

2

Control Cycle Times

2 current control, 2 velocity control, 2 position control

Connecting Point for Serial Interface

RS 232

Uses of Serial Interface

Programming, Parameterizing, Diagnosing

Power Consumption of PROFIBUS module

2W
