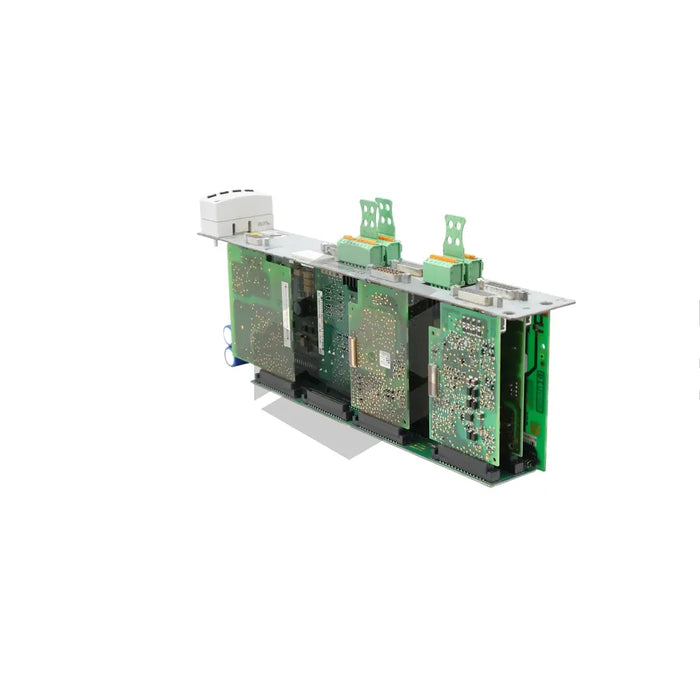

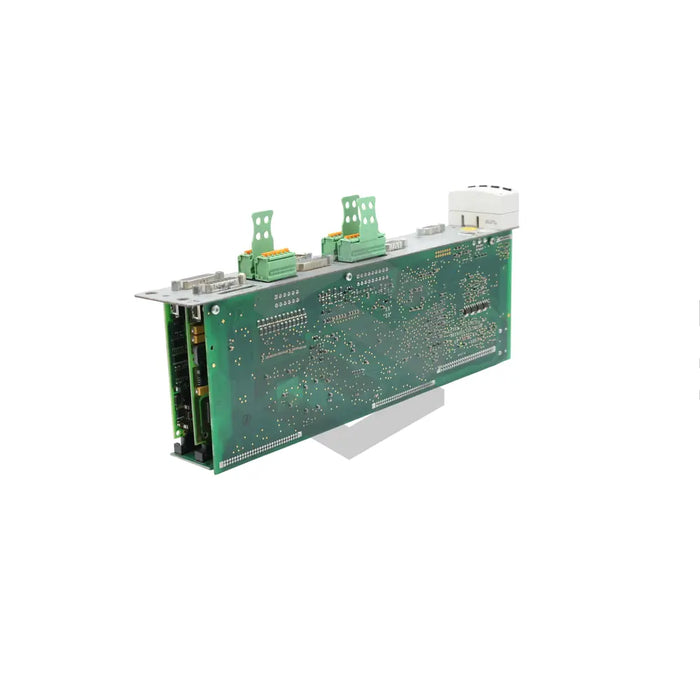

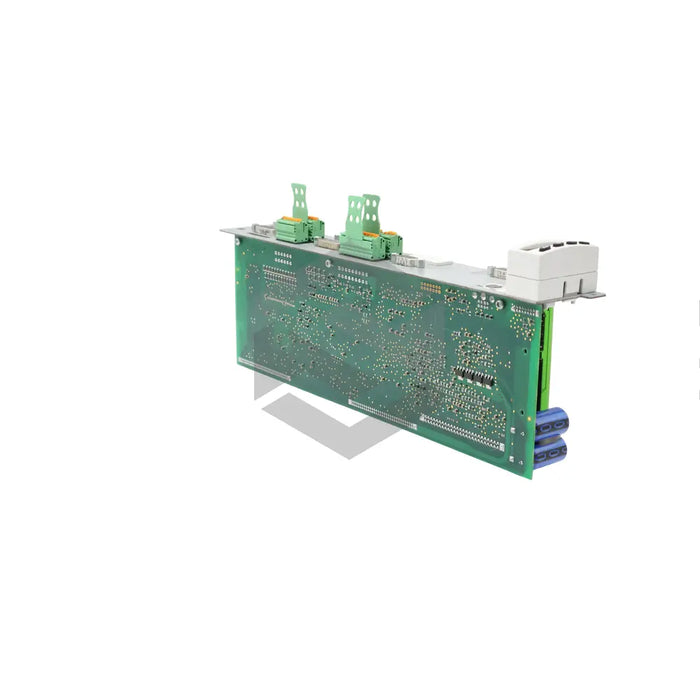

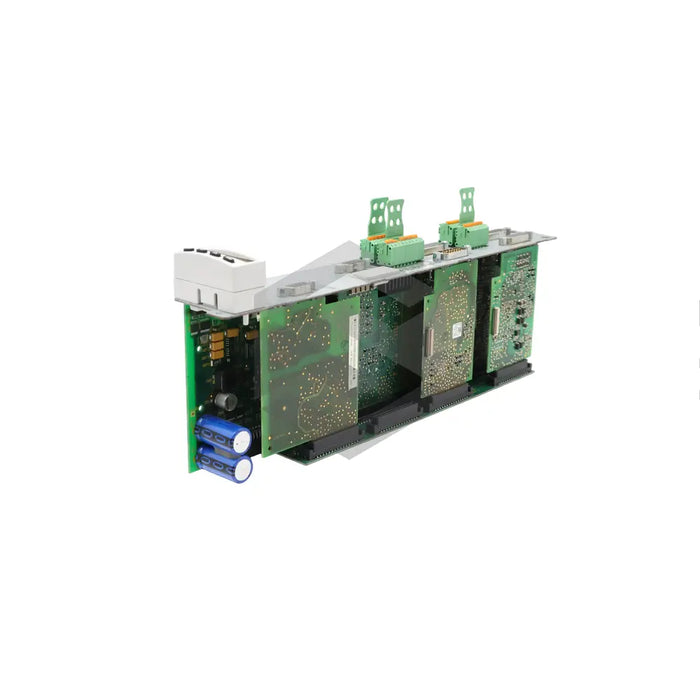

S image of CDB01.1C-PB-ENS-ENS-NNN-MEM-L2-S-NN-FW

CDB01.1C-PB-ENS-ENS-NNN-MEM-L2-S-NN-FW

by Bosch Rexroth Indramat
$4,795.32 - $19,208.73
$4,795.32
$4,795.32 - $19,208.73
$4,795.32

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CDB01.1C-PB-ENS-ENS-NNN-MEM-L2-S-NN-FW control section is a safety-conscious device with one configuration slot. The unit employs IndraDyn / Hiperface® / 1 Vpp / TTL encoders at its X4.1 and X4.2 connections, utilizing 15-pole D-Sub female connectors. It comes equipped with a differential input encompassing a 120 Ohm input resistance and a cutoff frequency of -3dB. Installed and removed solely by trained professionals, the equipment carries Safe Torque OFF safety functionality through an optional module, not conducive to bus wiring, and is incompatible with VCP comfort control panels. As the device is susceptible to electrostatic discharges, appropriate grounding measures must be employed. Supplementary sensors and actuators may be needed for the associated drive controller. The unit measures 322 x 103 x 49.5mm and requires a separate power supply for its isolated I/O at X31 and X32 connections. Its power consumption combines that of the basic unit and optional modules.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Part Number

CDB01.1C-PB-ENS-ENS-NNN-MEM-L2-S-NN-FW

Configuration Slot

1

Safety Technology

Yes

Risk Factors

Cutting, shearing, crushing

Encoders

IndraDyn / Hiperface / 1 Vpp / TTL

Connecting Points

X4.1 and X4.2

Connectors

15-pole D-Sub female

Emulation

Standard

Input Resistance

120 Ohms

Cutoff Frequency

-3dB

Installation Requirement

Trained and qualified personnel

Safety Option

Safe Torque OFF

Bus Wiring Support

No

Compatibility

Does not support manufacturer’s VCP comfort control panel

Dimensions

322 x 103 x 49.5mm

Terminal Types

Screw terminal blocks and spring terminals

Input/Output Connection Points

X31 and X32

Power Supply Requirement

Separate for inputs and outputs

Power Consumption

Calculated by summing the power consumptions of basic unit and optional modules.
