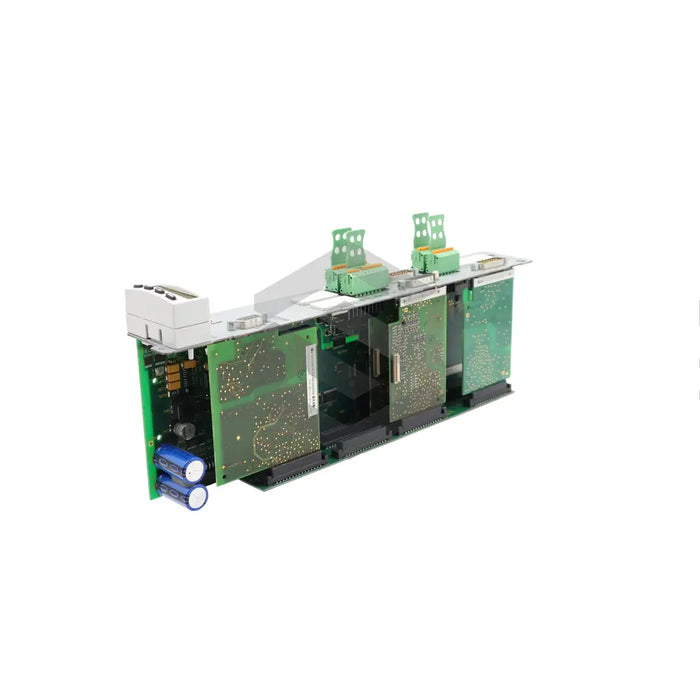

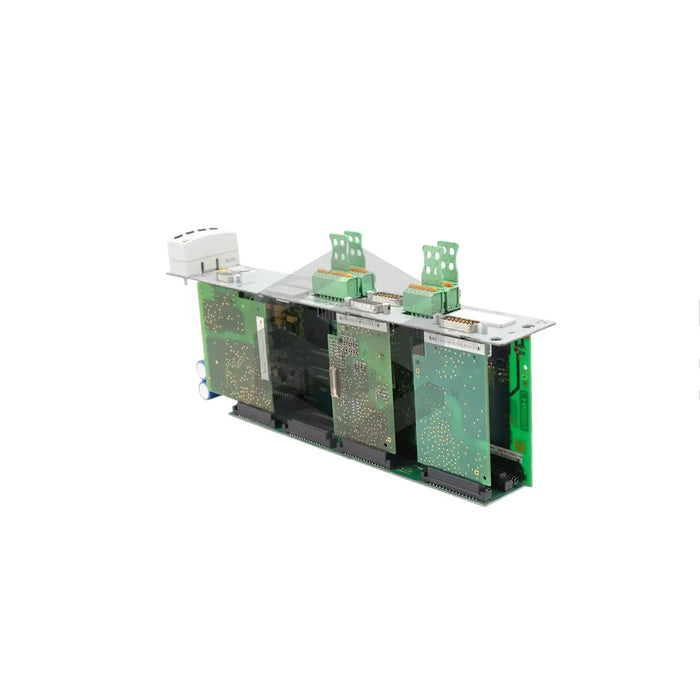

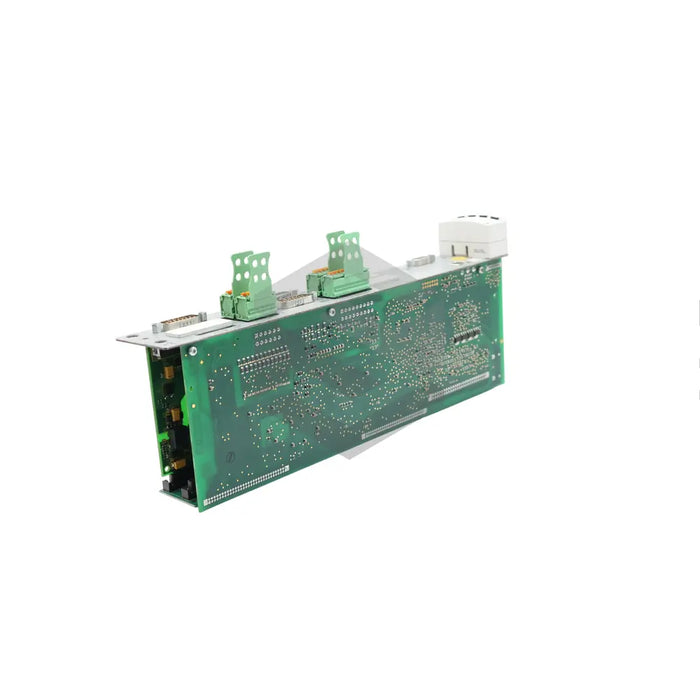

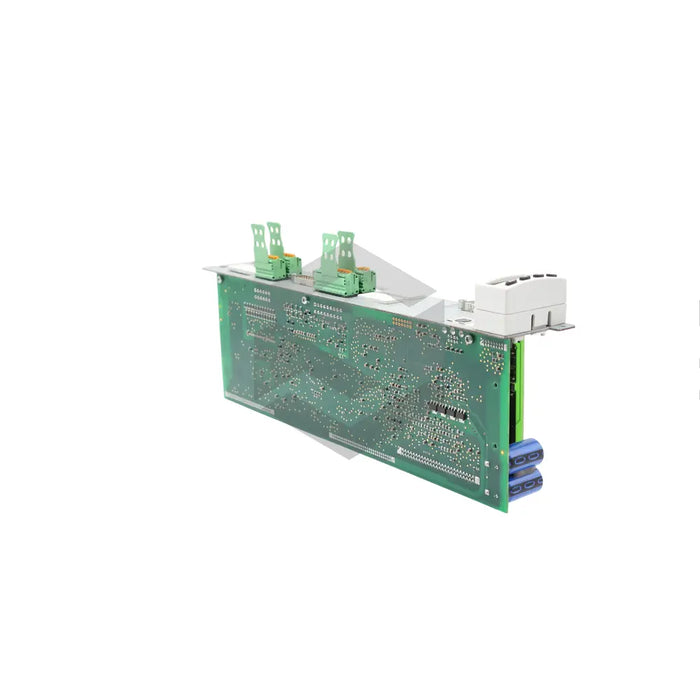

series image of CDB01.1C-PB-ENS-ENS-NNN-MEM-NN-S-NN-FW

CDB01.1C-PB-ENS-ENS-NNN-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's CDB01.1C-PB-ENS-ENS-NNN-MEM-NN-S-NN-FW is a control section devoid of an inbuilt safety mechanism. This versatile unit showcases one analog input, two analog outputs, and a power consumption of 9W at 24VDC when at full load. The control section is capable of accepting two variants of PFM02.1 multimedia cards, preloaded and preformatted for convenient parameter transfer. The device uses a MEM optional module to replicate its digital encoder signals for evaluation. Installation of its module requires no external power supply and is achieved using a 15-pole D-Sub connector with 0.25mm2 to 0.5mm2 stranded wire. The device must be handled, mounted and disconnected only by trained personnel, since incorrect maneuvers can cause damage. Additionally, it necessitates distinct firmware acquisition and should be stored in conductive packaging. Its use is not recommended in residential regions with public low voltage mains, and includes a requirement to review device documentation prior to installation or utilization. Proper transportation is ensured by military-grade packaging.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-PB-ENS-ENS-NNN-MEM-NN-S-NN-FW
  • Safety Mechanism: None
  • Inputs: One analog input
  • Outputs: Two analog outputs
  • Power Consumption: 9W at 24VDC at maximum output load
  • Compatible Multimedia Cards: PFM02.1 multimedia card with loaded firmware, preformatted multimedia card
  • Line code: 01
  • Optional Module at X8.1: None
  • Module Used: MEM optional module
  • Power Supply for Module: None required
  • Connection: D-Sub connector featuring 15 poles using 0.25mm2 to 0.5mm2 stranded wire
  • Plate Type: Separate type plate
  • Handling: By trained and skilled personnel only
  • Firmware: Procured separately
  • Packaging: Conductive packaging
  • Installation: As per manufacturer instructions
  • Usage Restriction: Not intended for use in residential areas supplied by public low voltage mains
  • Documentation: Required for installation and operation
  • Transportation: Custom military-grade packaging
