CDB01.1C-S3-ENS-EN2-NNN-ENS-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote

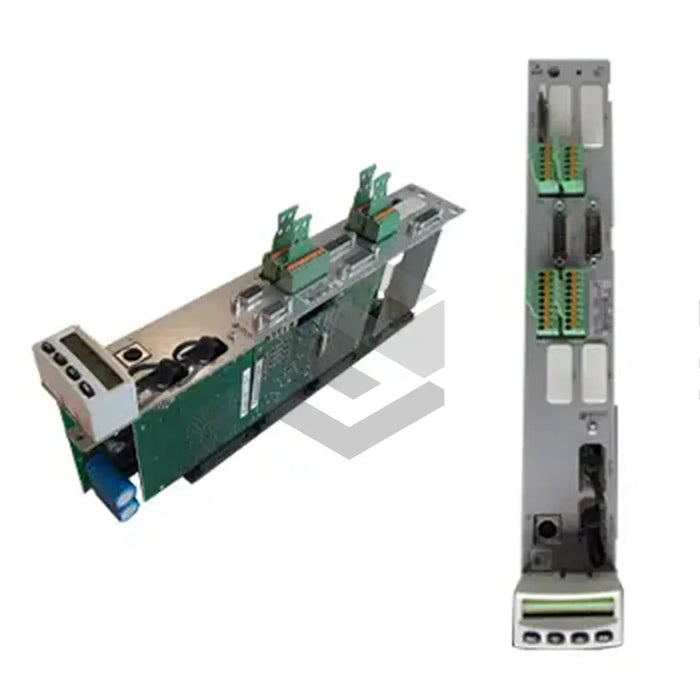

The Bosch Rexroth Indramat control section, CDB01.1C-S3-ENS-EN2-NNN-ENS-S2-S-NN-FW, consists of two ENS optional modules attached via D-Sub connectors at points X4.1 and X8.2. They provide standard encoder evaluation, with supply voltage around 11.6Vcc and output current of up to 500mA. Though incompatible with VCP01.2 control panel, it allows connectivity through RS 232 serial interface. Designed with a built-in protective diode, this section provides safety against incorrect connections and voltage polarity reversal. The Safe Motion optional module and a standard control panel with four keys and a single-line display are key features. It includes a multimedia memory card slot, allowing storage of various data such as drive parameters and firmware. The control section comes with duplicated digital inputs and operates with bounce-free switching elements to avoid evaluation errors, making it suitable for complex applications. The unit power consumption is 9W at 24VDC. Its transportability makes it versatile for use in any country.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: CDB01.1C-S3-ENS-EN2-NNN-ENS-S2-S-NN-FW
  • Optional Modules: Two ENS modules at X4.1 and X8.2 connecting points
  • Supply Voltage: 11.6Vcc
  • Max Output Current: 500mA
  • Control Panel Compatibility: Not compatible with VCP01.2 comfort control panel
  • Interface Connectivity: RS 232 serial interface through X2 connecting point
  • Design Code: Has 1 design code
  • Inputs and Outputs: Both analog and digital
  • Protective Feature: Incorporates a diode for protection against polarity reversal and incorrect connection
  • Safe Motion Module: Features a Safe Motion optional module
  • Control Panel: Standard with four keys and a single-line display
  • Memory Card Slot: Has one slot for multimedia memory card
  • Digital Inputs: sixth and seventh parallel to first analog input
  • Digital Input Types: Two of Type 2 and Two of Type 3
  • Probe Inputs: Operate as rapid inputs controlled by bounce-free switching elements
  • RS 232 Use: Used for parameterization, programming and diagnosing
  • Power Consumption: 9W at 24VDC
  • Transport: Can be transported to any location irrespective of the country.
