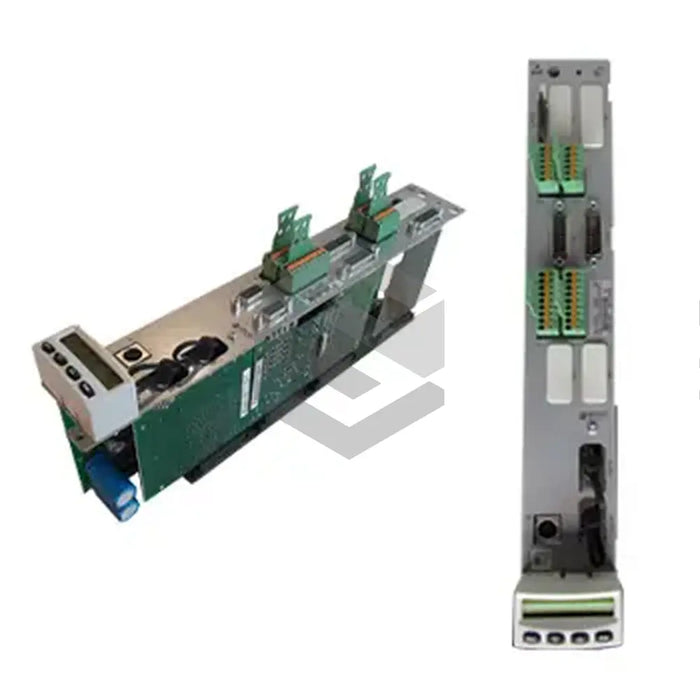

The CDB01.1C-S3-ENS-ENS-EN2-MA1-S2-S-NN-FW is a premium industrial tool produced by Bosch Rexroth Indramat. Primarily designed for industrial use, it flaunts four digital outputs, two outputs, and one analog input, coupled with a SERCOS 3 master communication. This model, further, boasts 18 - 22 digital inputs, an RS232 serial port, and utilizes a diameter range of 0.75 to 1.50mm for its stranded wire. Additionally, with options 1 and 2 for IndraDyn/Hiperface encoders, a standard control panel, and an S2 safety option, the CDB01.1 control section is geared for durability and performance. It also integrates a cycle time function for enhanced velocity, current, and position control. The model requires 9 watts of power, with a 6 amp inrush current, as well as a separate firmware order. Its maximum pulse width is 60 milliseconds using a 24-volt DC power supply, with its SERCOS cycle time and transmission time sitting at 1000 milliseconds and 500-1000 microseconds, respectively. An analog extension is available as an option, and the model's switching frequency spans from 2 to 8 Hz.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: CDB01.1C-S3-ENS-ENS-EN2-MA1-S2-S-NN-FW
  • Digital Outputs: Four configurable
  • Analog Inputs: One
  • Outputs: Two
  • Wire Type: Stranded
  • Wire Diameter: 0.75 to 1.50 mm
  • Communication: SERCOS 3 master
  • Control Section: Designed for industrial usage
  • Encoders: Options 1 and 2 IndraDyn/Hiperface
  • Control Panel: Standard
  • Safety Option: S2 (safe motion)
  • Digital Inputs: 18 - 22
  • Serial Port: RS232
  • Cycle Time Function: Velocity control 250 to 500 ms, Current control 125 to 500 ms, Position control 250 to 500 ms
  • Transmission Time: 500-1000 microseconds
  • Encoder: Optional EnDat2.1
  • Minimum SERCOS cycle time: 1000 milliseconds
  • Power Consumption: 9 watts
  • Inrush Current: 6 amps
  • Maximum Pulse Width: 60 milliseconds using 24 volt DC power supply
  • Firmware: Must be ordered separately
  • Option 4: Analog extension
  • Switching Frequency: 2 to 8 Hz.
