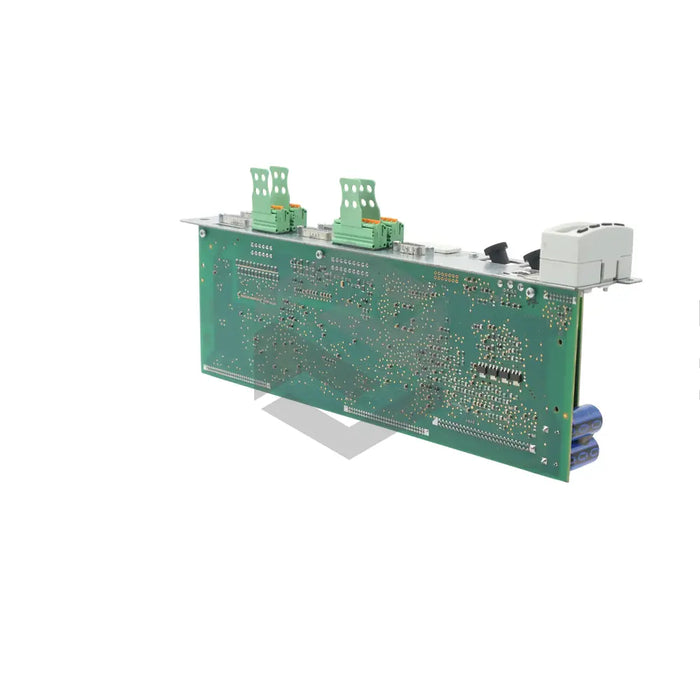

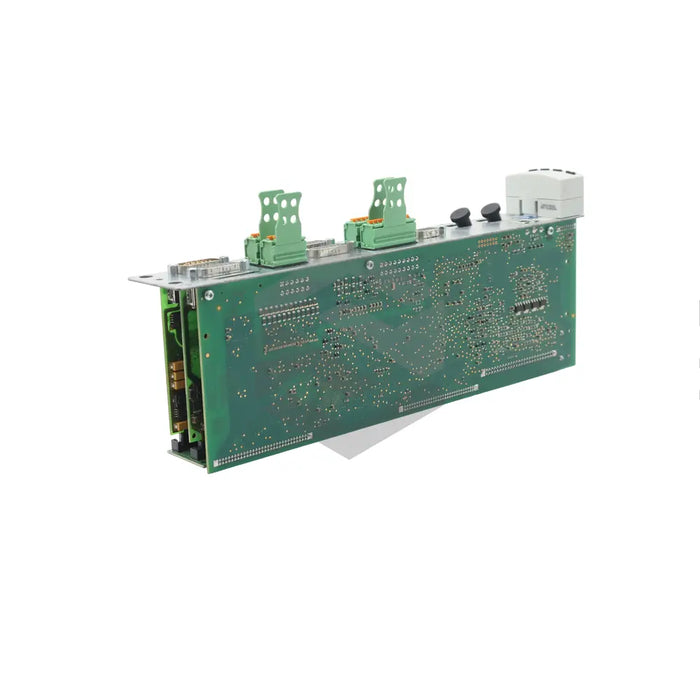

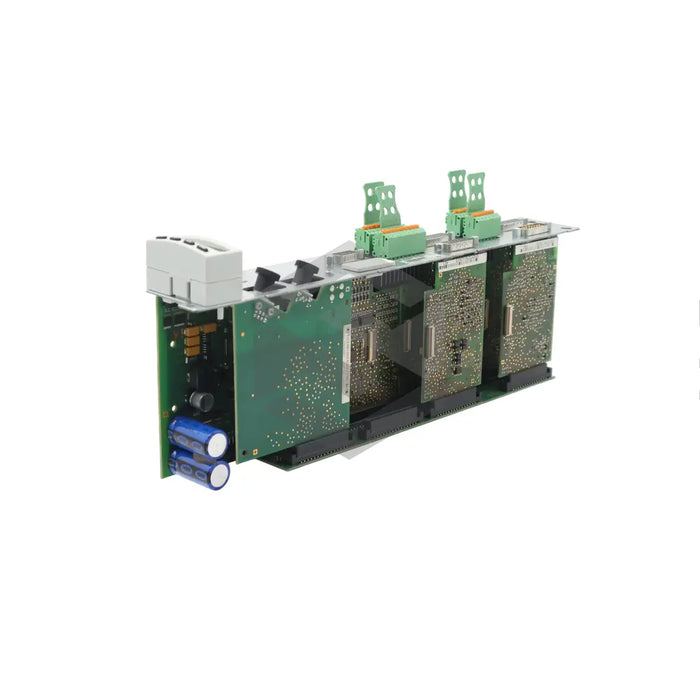

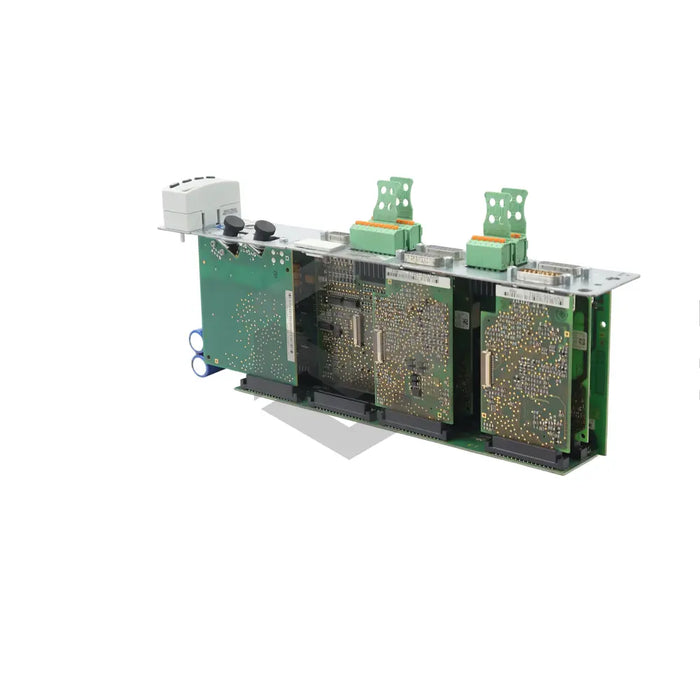

S image of CDB01.1C-SE-EN1-EN1-EN2-EN2-S2-S-NN-FW

CDB01.1C-SE-EN1-EN1-EN2-EN2-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,356.19 - $2,356.19
$2,356.19
$2,356.19 - $2,356.19
$2,356.19

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CDB01.1C-SE-EN1-EN1-EN2-EN2-S2-S-NN-FW is a digital control section from the CDB series. It features a core unit with interfaces and slots for additional modules on its front panel. Slots one and two hold an HSF/RSF encoder module, designed for 8V DC or 18.2V AC peak-to-peak motor encoder systems. They facilitate usage with MKD motors with analog resolvers and MHD motors with digital encoders. The CDB01.1C-SE-EN1-EN1-EN2-EN2-S2-S-NN-FW model also includes an EnDat 2.1 encoder module in slots three and four for compatibility with 5V DC encoder systems. A safety module is incorporated to support various safety functions for motion applications. This double-axis optimized device can be configured through a standard control panel. It uses SERCOS, a standardized real-time communication interface, allowing 2/4 Mbps data rates with upgraded versions supporting up to 100 Mbps.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

CDB Series

Product Type

Digital Control Section

Module Slot 1

Encoder HSF / RSF module

Module Slot 2

Encoder HSF / RSF module

Operating Voltage for Encoder HSF/RSF

8 Volts DC or 18.2 Volts AC peak-to-peak

Interface for Encoder HSF/RSF

Female 15-pin D-sub

Wire Compatibility for Encoder HSF/RSF

Stranded copper wires measuring 0.25 to 0.5 mm2

Module Slot 3

Encoder EnDat 2.1 module

Module Slot 4

Encoder EnDat 2.1 module

Operating Voltage for Encoder EnDat 2.1

5 Volts DC

Wire Compatibility for Encoder EnDat 2.1

Stranded copper wires measuring 0.25 to 1.0 mm2

Safety Module

Supports safe motion

Configuration

Via standard control panel

Master Communication Interface

SERCOS (real-time serial communication over fiber optic cables)

Data rates supported by SERCOS

2 / 4 Mbps, upgraded versions support 100 Mbps

SERCOS Network

Arranged in ring topology.
