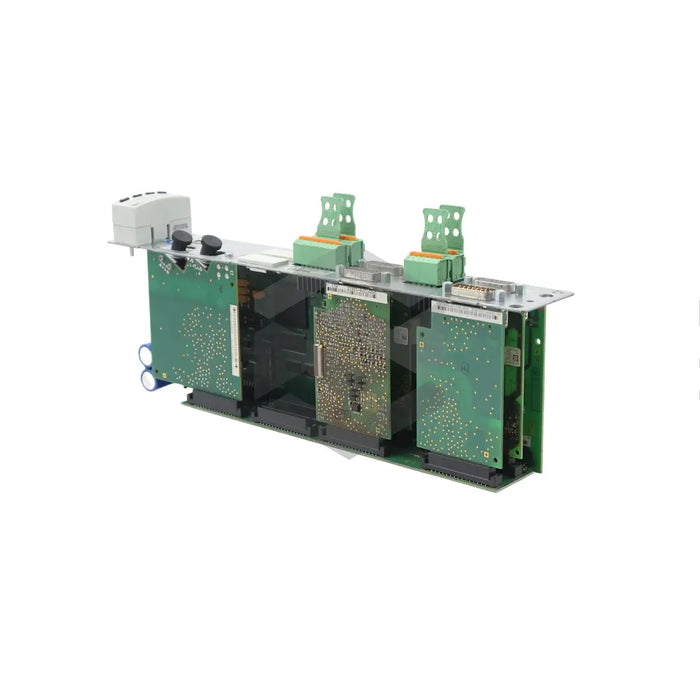

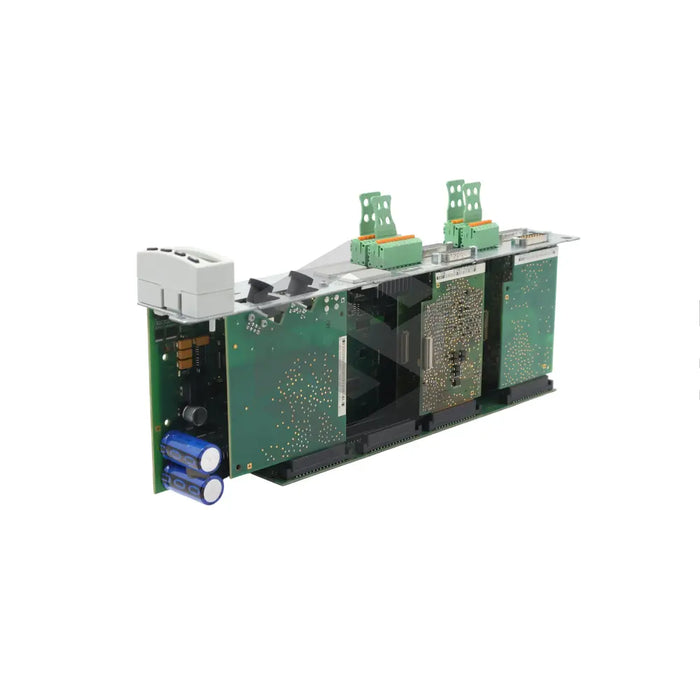

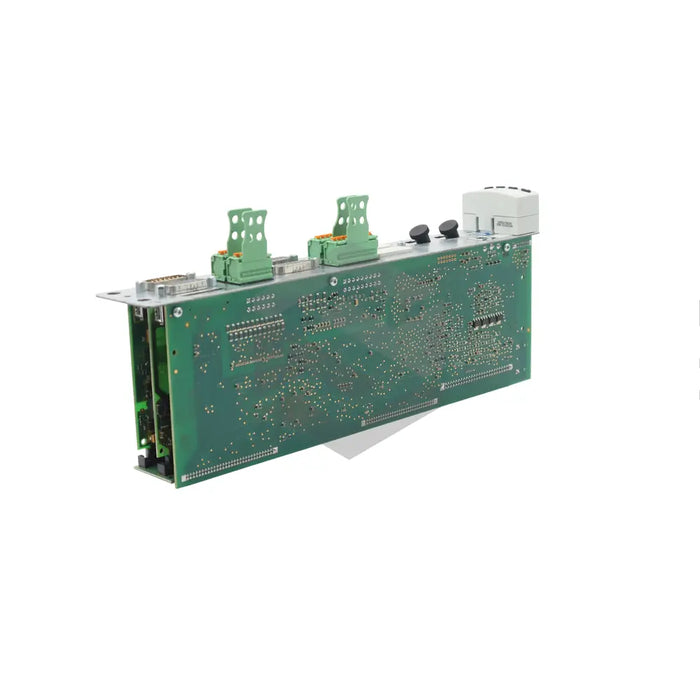

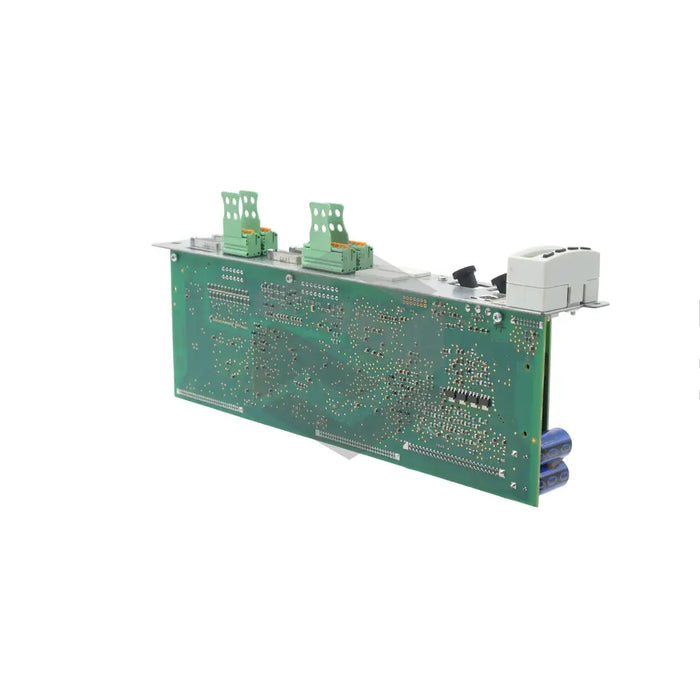

series image of CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW

CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW, a control section by Bosch Rexroth Indramat, is a part of the IndraDrive drive controllers range. With a modular design, it is adaptable to customer needs through selectable hardware and firmware making it optimized for specified applications. The control section has five slots, four of which are pre-filled with modules, leaving one available for a safety module. Two of the installed modules are encoder HSF / RSF, with an additional encoder emulation and EnDat 2.1 module. The CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW features a vertical design measuring 322.6 x 103 x 49.5 millimeters, an RS-232 interface for computer and terminal communication, configurable cycle times, and supports 2 kHz, 4 kHz, and 8 kHz switching frequencies as well as SERCOS master communication. Built for ambient temperatures between 0 to 40 degrees Celsius, it should only be installed by trained professionals.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Bosch Rexroth Indramat
  • Product Model: CDB01.1C-SE-EN1-EN1-EN2-MEM-NN-S-NN-FW
  • Product Type: Control Section
  • Architecture: Modular
  • Firmware: Selectable
  • Control Section Components: Basic unit and slots for plug in modules
  • Slot Details: 5 slots (4 pre-installed modules and 1 vacant slot for a safety module)
  • Pre-Installed Modules: Two encoder HSF / RSF modules, one encoder emulation module, one encoder EnDat 2.1 module
  • Installation Orientation: Vertical
  • Product Dimension: 322.6 x 103 x 49.5 millimeters
  • Interface Provided: RS-232 for serial communication
  • Current Control Cycle Time: Settable to 125 microseconds
  • Velocity Control Cycle Time: Settable to 250 or 500 microseconds
  • Position Control Cycle Time: Settable to 500 or 1000 microseconds
  • SERCOS Cycle Time: Settable to 1000 microseconds
  • Switching Frequencies Supported: 2 kilohertz, 4 kilohertz and 8 kilohertz
  • Communication Support: SERCOS master communication
  • Operating Ambient Temperature: 0 to 40 degrees Celsius
  • Installation Recommendation: By qualified and trained personnel
