CDB01.1C-SE-EN1-EN1-EN2-NNN-L1-S-NN-FW

Request a quote

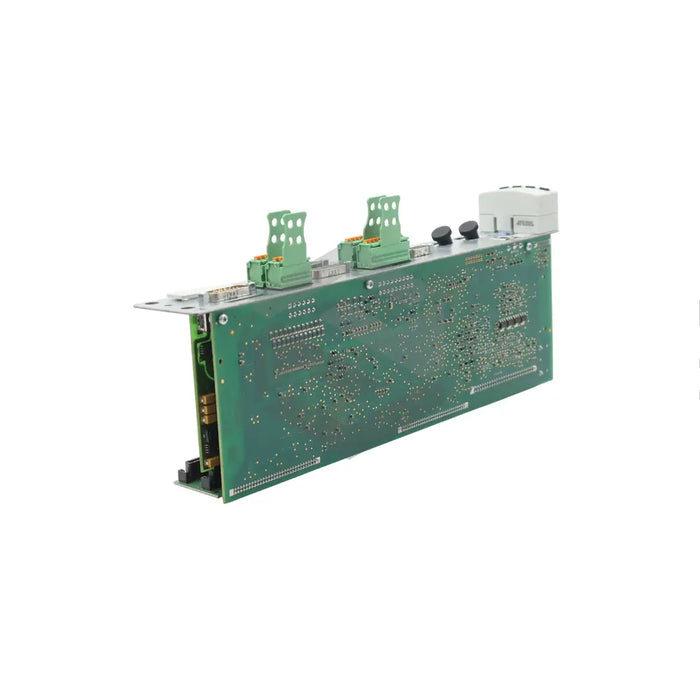

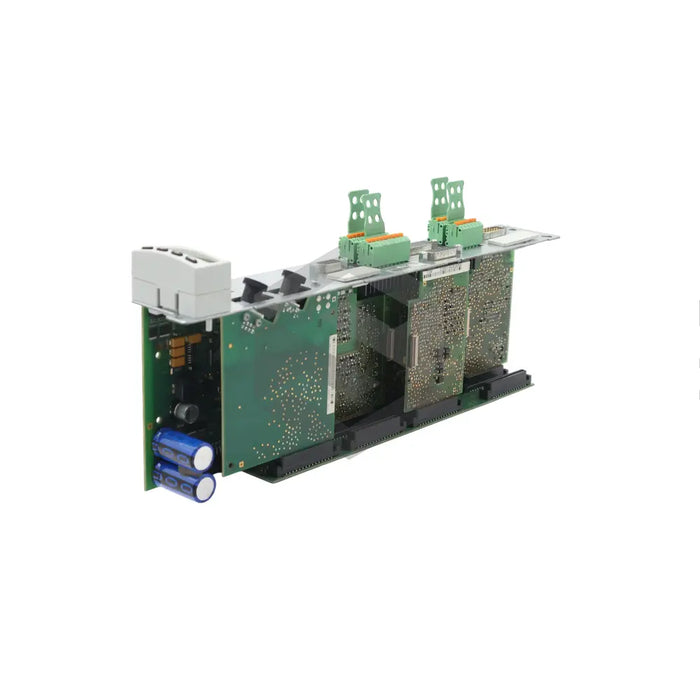

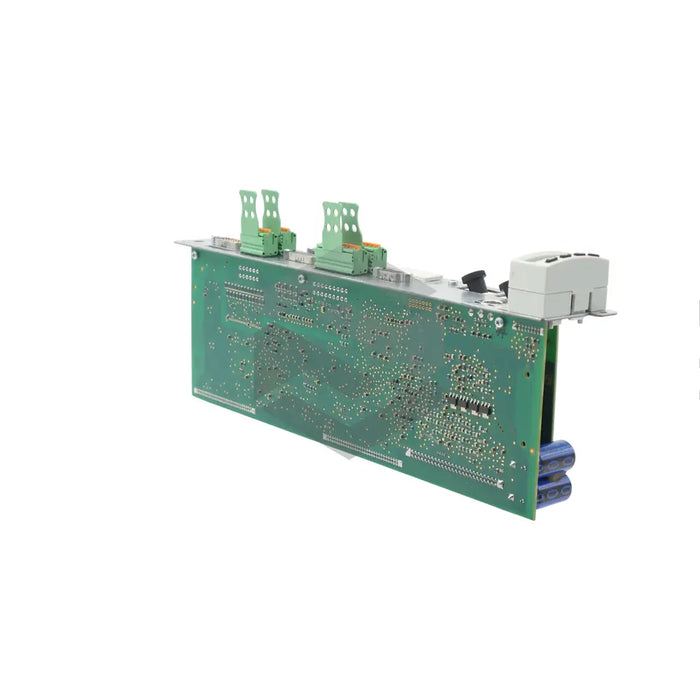

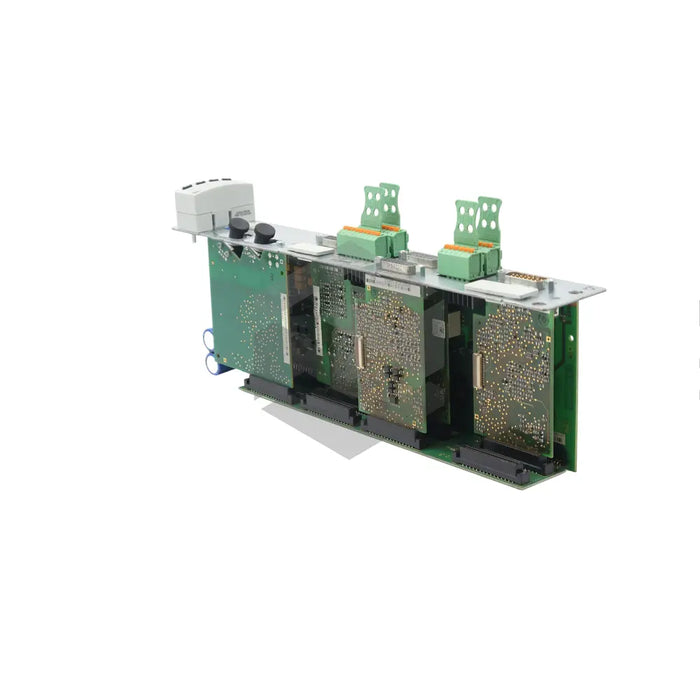

The CDB01.1C-SE-EN1-EN1-EN2-NNN-L1-S-NN-FW is a digital control section developed by Bosch Rexroth Indramat. It forms the central unit of the IndraDrive controller, partnered with a power section, control panel, and firmware. Specifically created for double-axis applications, this configurable device is part of the basic universal control sections. The CDB01.1C-SE-EN1-EN1-EN2-NNN-L1-S-NN-FW is modular in nature and can hold optional modules in four exclusive slots and a safety module in one slot. This device comes with two encoder HSF/RSF modules and one EnDat 2.1 module. The control section supports SERCOS master communication, a high-speed serial communication standard that backs 2 Mbps and 4 Mbps data rates. Firmware requisite is ordered separately from the hardware. The device, meant to be installed vertically, is optimized to work in ambient temperatures of 0 to 40 degrees Celsius and should be installed by experts to avoid potential wiring issues.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: Digital Control Section
  • Series: CDB
  • Usage: Double-Axis Applications
  • Compatibility: Standard Control Panel
  • Modularity: Yes
  • Number of slots: 5 (Four for optional modules and one for safety module)
  • Number of occupied slots: 4 (Two HSF/RSF encoder module, One EnDat 2.1 encoder module, One safety module)
  • Unoccupied slots: 1
  • Master communication supported: SERCOS
  • SERCOS standard support: Yes
  • Communication medium: Fiber Optic Cables
  • Supported data rates: 2 Mbps, 4 Mbps and 100 Mbps (SERCOS III)
  • Firmware: Ordered separately
  • Mounting: Vertical
  • Ambient temperature: 0 to 40 degrees Celsius
  • Installation: By trained and experienced personnel
