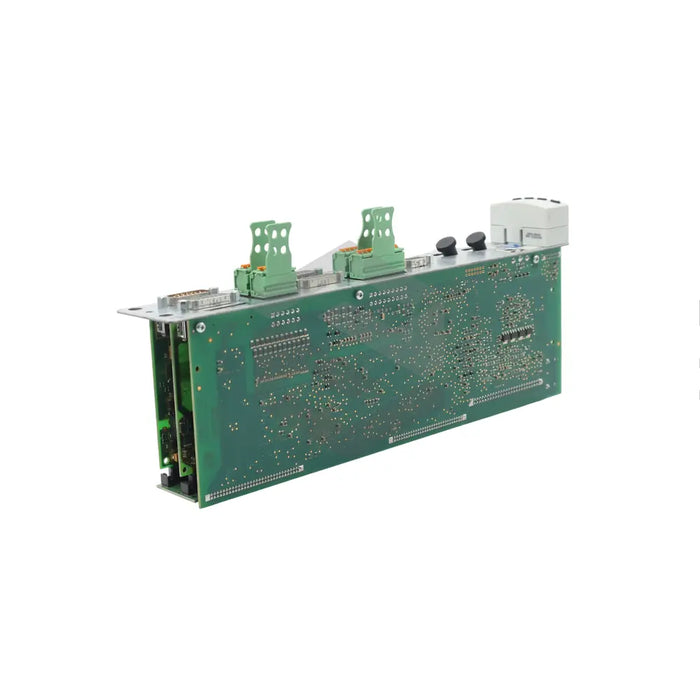

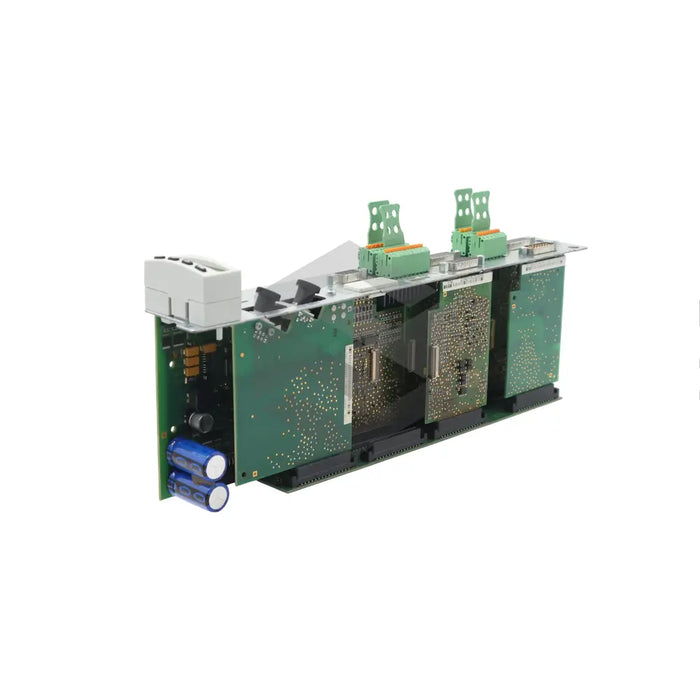

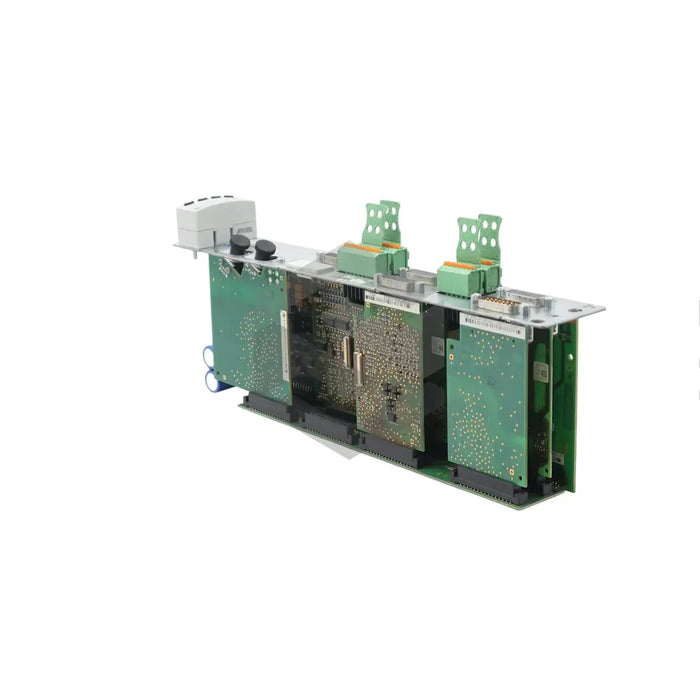

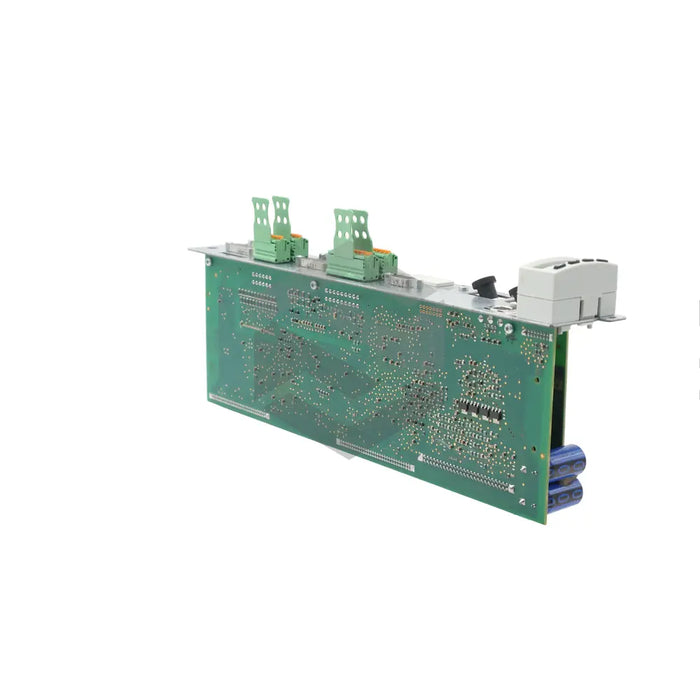

series image of CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW

CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW is a configurable control section from the Bosch CDB series, designed specifically for motor control applications and only compatible with a standard control panel. The unit comes with five slots, all pre-occupied; slot 5 houses a safety module with safety technology I/O, slot 4 carries an encoder EnDat 2.1 module, while slots 3, 2, and 1 host IndraDyn and HSF/RSF encoder modules respectively. This control unit features a master communication interface powered by the SERCOS standard. Additionally, the control unit is powered by a 24 Volts DC supply that consumes approximately 36 Watts. The device is cooled via natural airflow and is suitable for ambient temperatures between 0 - 40 degrees Celsius. Installation should be undertaken by trained personnel using only approved accessories.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: CDB Series
  • Product Model: CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW
  • Configuration: Configurable with standard control panel
  • Application: Motor control
  • Optional Modules Slots: 5 slots
  • Slot 5: Safety module with I/O Support
  • Slot 4: Encoder EnDat 2.1 module
  • Slot 3: Encoder IndraDyn module
  • Slot 2 and 1: Encoder HSF / RSF module
  • Communication Interface: SERCOS master
  • Firmware: Ordered Separately
  • Basic Equipment Power Consumption: 9 Watts
  • Encoder Modules Power Consumption: 6 Watts each
  • Control Panel Power Consumption: 1 Watt
  • SERCOS Module Power Consumption: 2 Watts
  • Total Power Consumption: Approximately 36 Watts
  • Cooling Mechanism: Natural air flow
  • Ambient Operating Temperature: 0 to 40 degrees Celsius
  • Installation: By trained personnel only
  • Accessories: Only approved accessories should be used.
