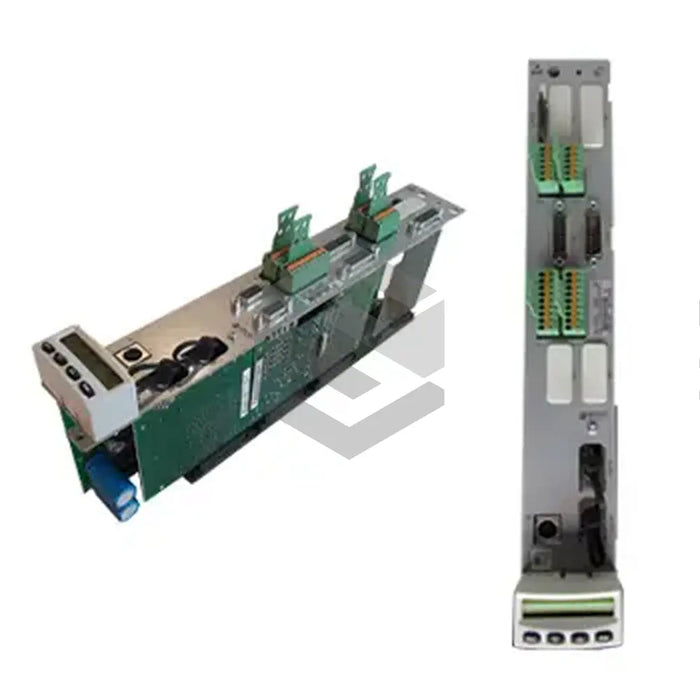

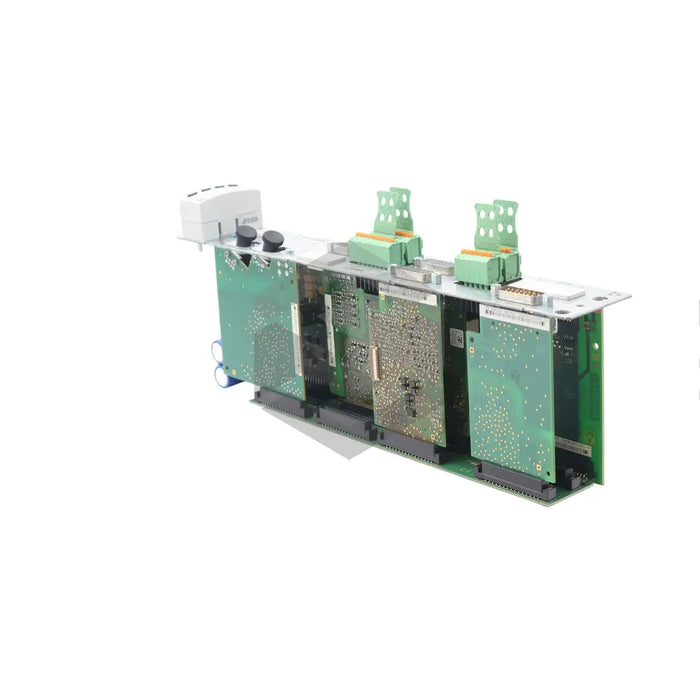

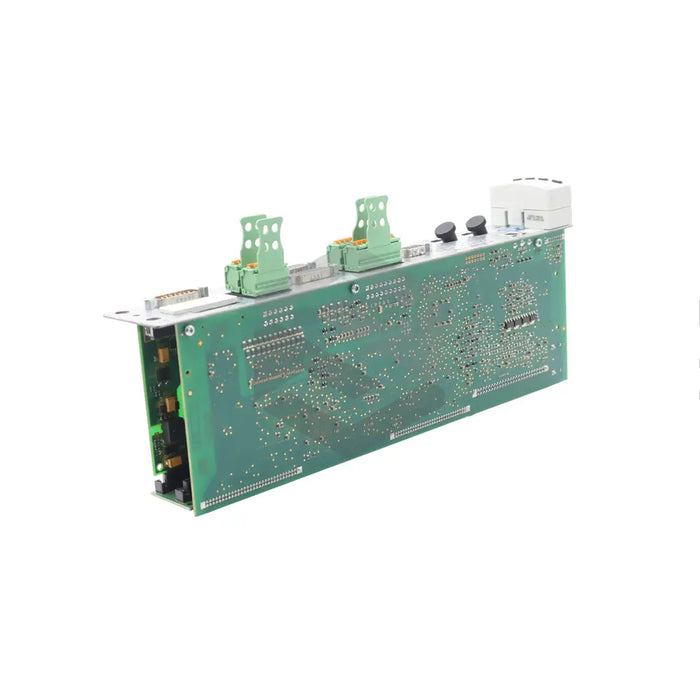

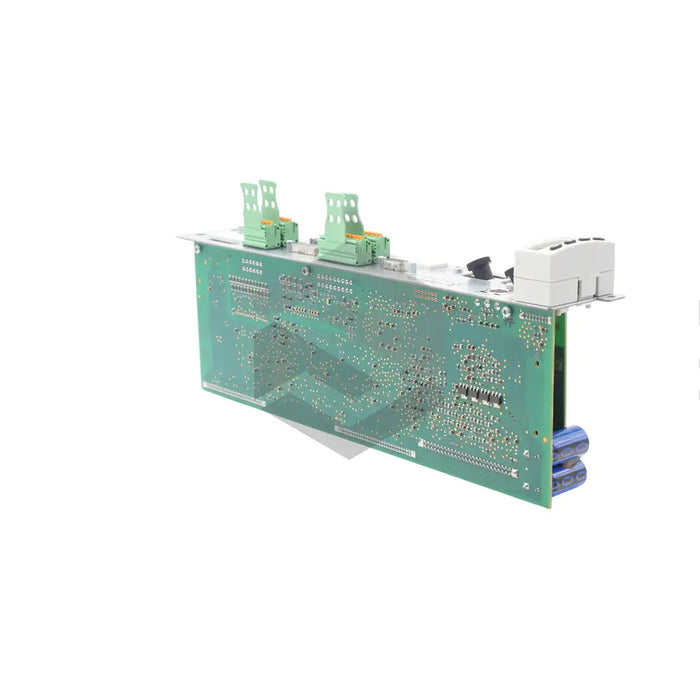

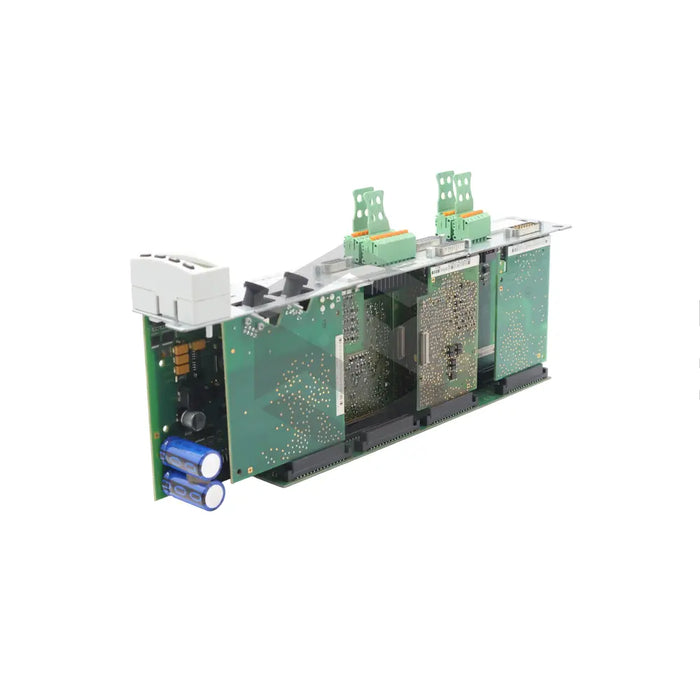

series image of a CDB01.1C-SE-EN1-EN1-NNN-MEM-S1-S-NN-FW

CDB01.1C-SE-EN1-EN1-NNN-MEM-S1-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat CDB01.1C-SE-EN1-EN1-NNN-MEM-S1-S-NN-FW is a control device that works as a key component of a digital drive controller. This system, requiring the attention of trained operators, includes an IEC 61131 compliant analog input that doubles as two digital inputs. This control section is equipped with EN1 optional modules with specified voltage, connected via 15 pole D-Sub connectors. It also has two digital probe inputs of both Type 2 and Type 3, with different voltage ranges, and a non-linear input resistance. It features two configuration slots for adaptability, but isn't compatible with the manufacturer's control panel. It utilizes high-side switches for digital output activation and maintains a normally open relay contact. Power consumption is dependent on the base unit and optional modules. For data transfer, the control section features an RS 232 serial interface connectable with an 8-pole MiniDin circular connector. Power is supplied via 0V and 24V terminal connectors at the associated power section.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CDB01.1C-SE-EN1-EN1-NNN-MEM-S1-S-NN-FW
  • Type: Control section for digital drive controller
  • Operating Condition: Must not be disconnected or opened in a pressurized state
  • Input: Analog input adheres to IEC 61131
  • Digital Inputs: 2 digital inputs of each Type 2 and Type 3
  • Optional Modules: Two EN1 optional modules with peak-to-peak voltage of 18.2VAC or a supply voltage of 8VDC for HSF / RSF evaluation
  • Power Supply: Power supply through the 0V and 24V terminal connectors
  • Connectors: Female D-Sub connectors with 15 poles for optional modules and 8-pole MiniDin circular connector for RS 232 serial interface
  • Probe Inputs: Configurable probe inputs with voltage rating between -3V and 30V
  • Digital Outputs: Activated by high-side switches
  • Backup Support: 1 year
  • Connectivity: RS 232 serial interface at X2 connecting point for programming, parameterization, and diagnosing
  • Controls: Two configuration slots based on user requirements
  • Relay Contact: Normally open type.
