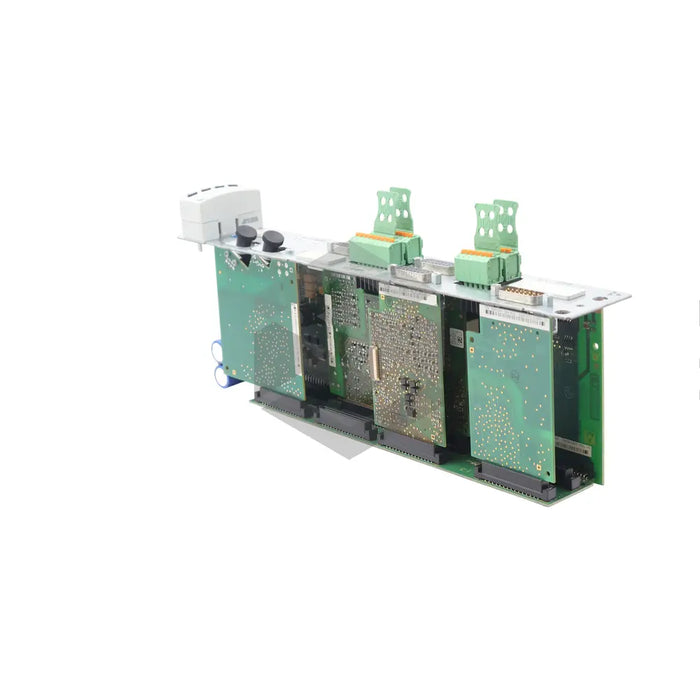

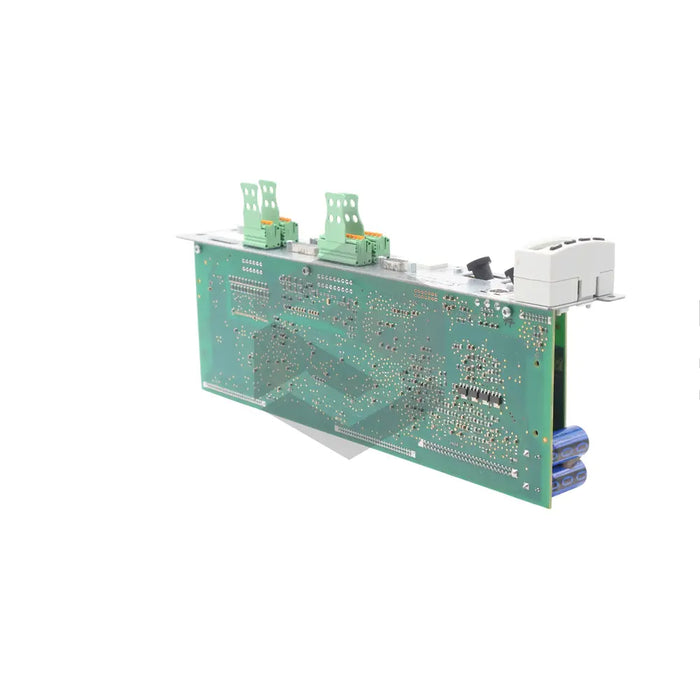

series image of CDB01.1C-SE-EN1-EN1-NNN-MEM-S2-S-NN-FW

CDB01.1C-SE-EN1-EN1-NNN-MEM-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CDB01.1C-SE-EN1-EN1-NNN-MEM-S2-S-NN-FW, manufactured by Bosch Rexroth Indramat, is a basic universal control section with a MEM encoder emulator at its X8.2 connecting point. Designed for skilled users, this device may cause high-frequency interference in residential areas and should only touch discharged conductive parts. It should be stored in conductive packaging and used in its original state, adhering to manufacturer-approved parts, accessories, and cables. Operate the device with provided firmware and software, ensuring stable surrounding temperatures. It entails a Safe Motion optional module at the X41.1 / X41.2 connecting point, affording several safety functions, and connected to a 9-pin female D-Sub connector. The X7 connector is used for memory card insertion, and this dual-axis device requires external supply voltage for digital in/out, with guaranteed protection against polarity reversal or incorrect connection.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product model: CDB01.1C-SE-EN1-EN1-NNN-MEM-S2-S-NN-FW
  • Line code: 01
  • Mount and Dismount requirement: Only by skilled personnel
  • Interference: Can cause high-frequency interference if used in residential areas
  • Touch specifications: Should not contact exposed conductive parts without proper discharge
  • Packaging: Should be stored in conductive packaging
  • Modification restrictions: Must be used only in its original state
  • Application: Controls and monitors the operation of an electric motor
  • Parts used: Only approved spare parts, accessories and cables
  • Operating conditions: Specific combination of components and configuration using provided firmware and software
  • Temperature considerations: No operation during extreme temperature variations
  • Power supply consideration: Not to be used with a public low-voltage mains in residential areas
  • Addition feature: Safe Motion optional module at X41.1 / X41.2 point
  • Connection: 9-pin female D-Sub connector using 0.25mm2 to 0.5mm2 stranded wire
  • Memory card slot: X7 connector
  • Supply voltage: Needs external supply voltage for digital inputs/outputs
  • Protection: Must have protection against polarity reversal and/or incorrect connection of the supply voltage.
