CDB01.1C-SE-EN1-EN1-NNN-NNN-L2-S-NN-FW

Request a quote

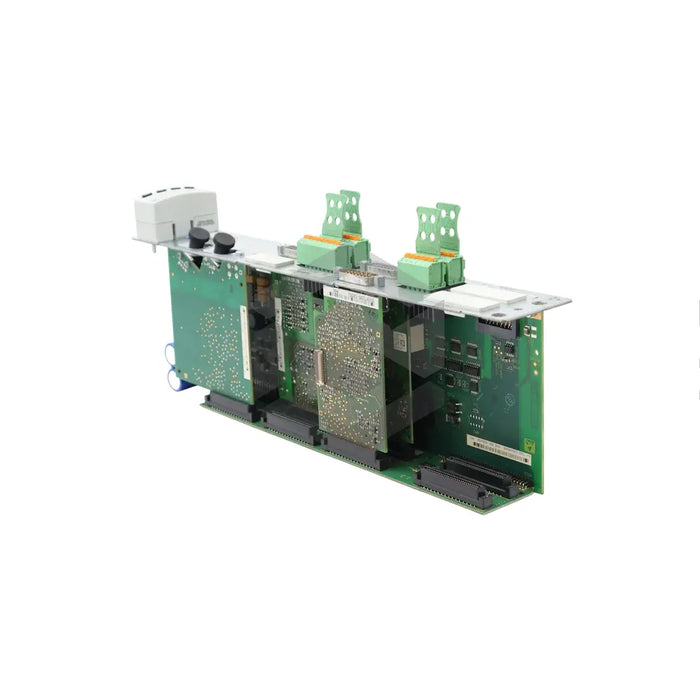

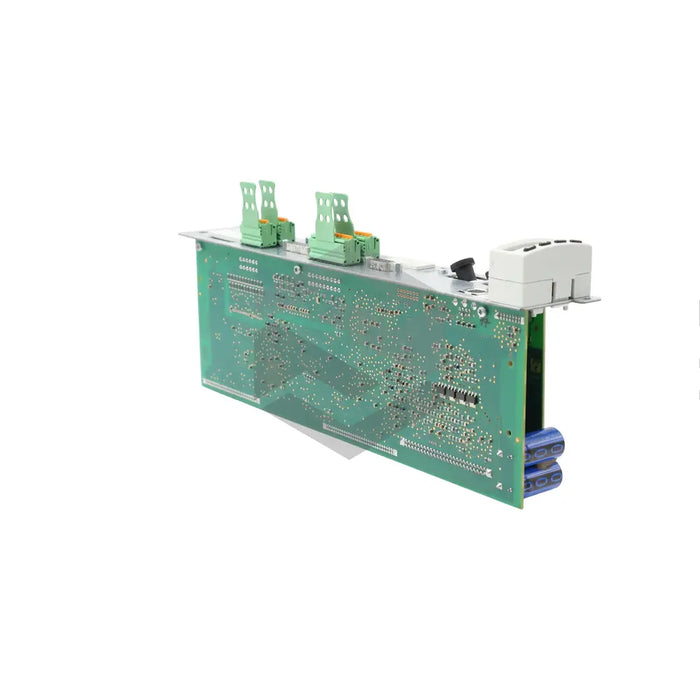

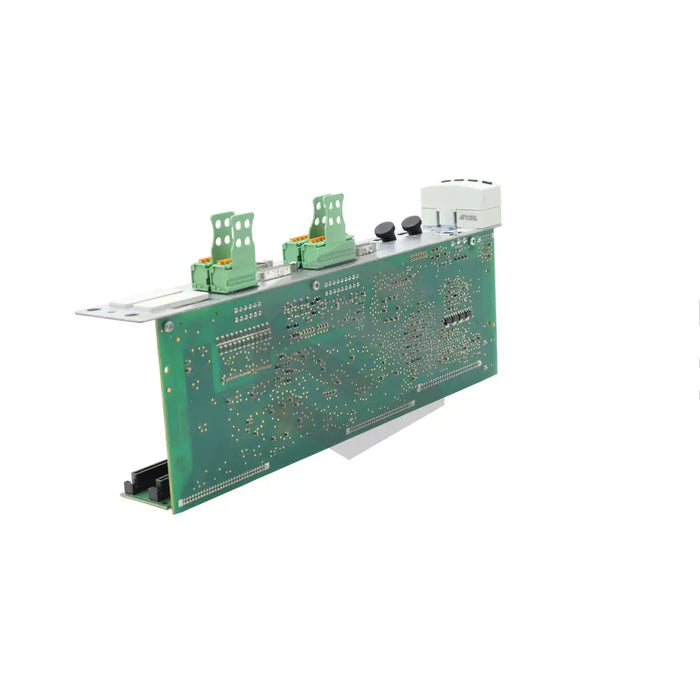

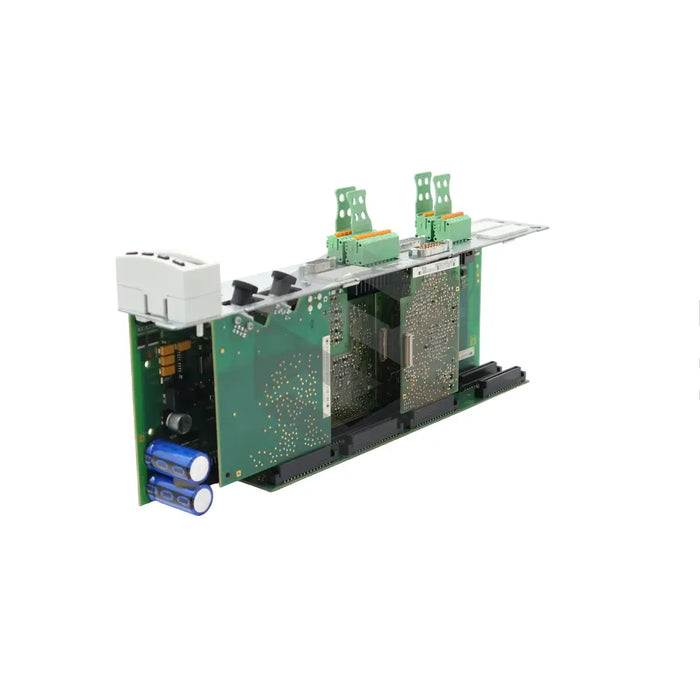

The CDB01.1C-SE-EN1-EN1-NNN-NNN-L2-S-NN-FW, is a dual-axis control section made by Bosch Rexroth Indramat, compatible with various motor types, including asynchronous, spindle, linear, and torque. Its Safe Torque OFF feature enhances operational safety, while the SERCOS interface includes a distortion LED. The control section must be installed vertically, and connections with non-approved parts are discouraged. User interaction is facilitated via a standard front-mounted control panel encompassing a single-line display and four buttons. To ensure accuracy, the device’s digital outputs must not be used with low resistance sources, and its rapid input probe inputs should be bounce-free. The unit measures 322.6 x 103 x 49.5mm and its firmware needs separate procurement. It has shield connections for analog inputs and offers one year of backup support, delivered through a reliable global logistics network.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: CDB01.1C-SE-EN1-EN1-NNN-NNN-L2-S-NN-FW Control Section
  • Relay Contact: One normally open relay contact
  • Pickup Delay: 10ms
  • Dropout Delay: 10ms
  • Application: Used with wide range of asynchronous, frameless synchronous spindle, synchronous linear and synchronous torque motors
  • Installation: Must be done only in vertical orientation
  • Interface: SERCOS
  • Functionality: Incorporates Safe Torque OFF
  • Size: 322.6 x 103 x 49.5mm
  • Control Panel: Standard panel mounted on front
  • Display Type: One line display and four buttons
  • Outputs: Digital outputs must never be operated at low resistance sources
  • Probe Inputs: Function like rapid inputs, controlled using bounce-free switching elements
  • Firmware: Must be procured as a separate subitem
  • Analog Inputs Shield Connection: Yes
  • Backup Support: One year
