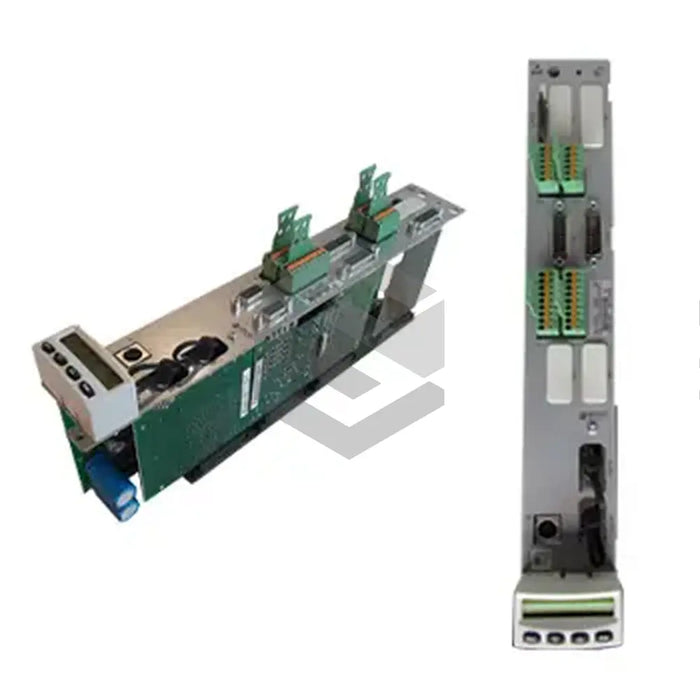

series image of CDB01.1C-SE-EN1-EN1-NNN-NNN-S1-NN-FW

CDB01.1C-SE-EN1-EN1-NNN-NNN-S1-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's CDB01.1C-SE-EN1-EN1-NNN-NNN-S1-NN-FW is part of the CDB series designed for industrial use. This configurable control section, essential for a drive controller's performance, can work in tandem with the manufacturer's motors. It is installed within the power section of the drive controller and can suffer potential damage from electrostatic charges and incorrect attachment/detachment. With a double-axis design, it incorporates a memory card slot via an X7 connection point and external supply voltage through X31.8 and X31.9 connectors for digital I/O functionality. It requires a protective diode to guard against polarity reversal or incorrect voltage connection. Optional module additions include a comfort control panel, analog and digital I/O extensions, and starting lockouts. With an integrated SERCOS interface for master communication and an HSF/RSF encoder in the X4.1 connector, this unit must be commissioned before operating.
30 Day Warranty
Technical Specifications
  • Manufacturing Company: Bosch Rexroth Indramat
  • Product Type: CDB01.1C-SE-EN1-EN1-NNN-NNN-S1-NN-FW control section
  • Product Series: CDB
  • Use: Part of the drive controller for manufacturers motors
  • Installation Location: Power section of the drive controller
  • Number of Type-Plates: 2
  • Special Connection Point: X7 connection point (acts as a memory card slot)
  • Key Connectors: X31.8 and X31.9 requiring external supply voltage
  • Protection Measures: Protection against polarity reversal and incorrect supply voltage connection using a protective diode
  • Power Supply: 0 and 24V terminals of the power section
  • Optional Module Support: Inclusion of a comfort control panel, analog and digital I/O extensions, and starting lockouts
  • Usage Environment: Industrial
  • Safety Notice: May cause property damage and personal injury if used incorrectly
  • Main Interface: SERCOS interface for master communication
  • Additional Features: HSF/RSF encoder at the X4.1 connector
  • Pre-Use Requirement: Drive controller commission before operation for the motor to perform application-specific functions
  • Minimum SERCOS Cycle Time: 1,000µs
  • Relay Contact: 1 N/O
