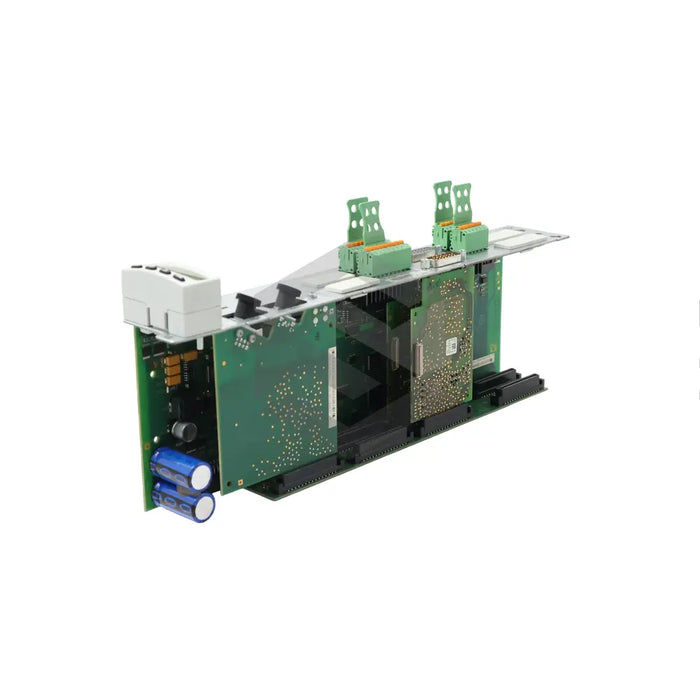

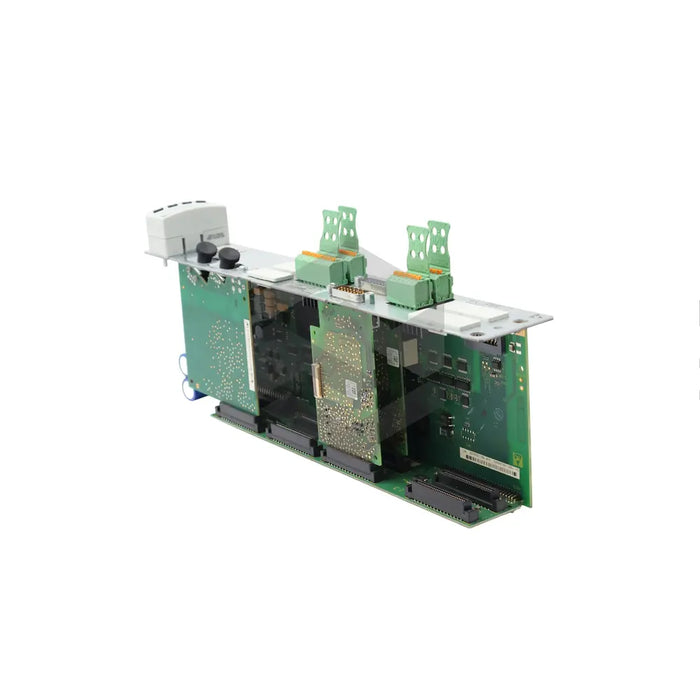

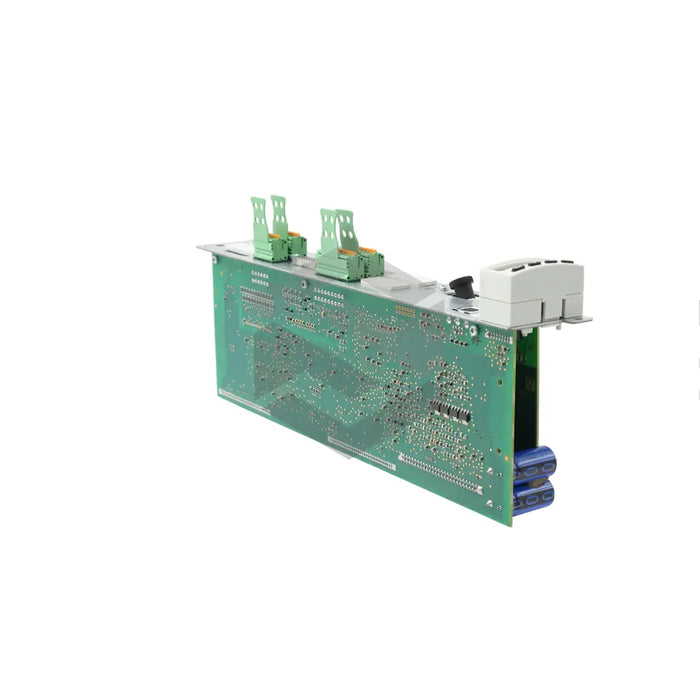

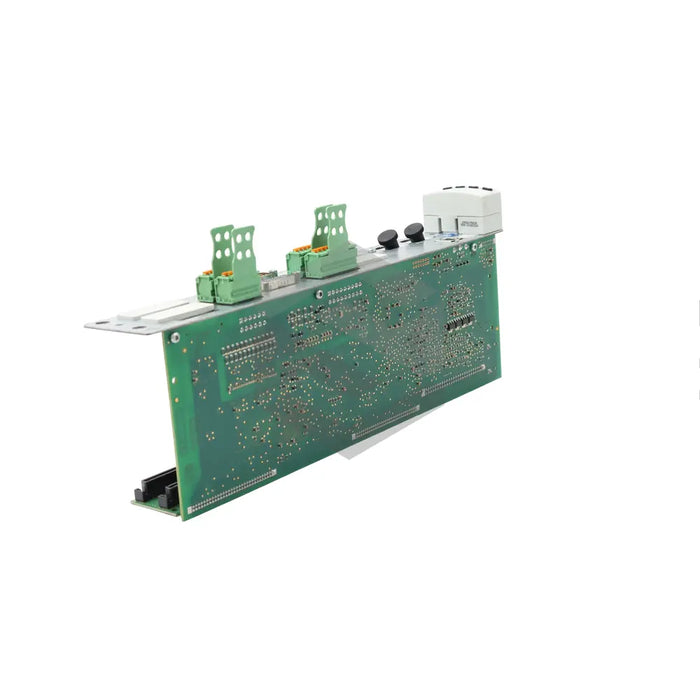

The Bosch Rexroth Indramat CDB01.1C-SE-EN1-EN2-NNN-NNN-S1-S-NN-FW, a modular control section, is specifically engineered for IndraDrive controllers. Accompanied by a power section, control panel, and separately-ordered firmware, this control section encapsulates all processing functions. It arrives as a fully-assembled unit or in individual parts requiring professional assembly. The control section flaunts configurable hardware and firmware, tailor-made to client preferences. Equipped with five slots, it provides scope for various plug-in modules. Three slots come preoccupied - one with a safety module supporting safety technology I/O, and the remaining two include an encoder HSF / RSF and an encoder EnDat 2.1 module. The product, pre-equipped with SERCOS master communication, operates ideally in temperatures between 0 - 40 degrees Celsius. Configuration can be performed using the standard control panel, though it isn't compatible with the comfort control panel. Only trained technical personnel should handle the device using approved accessories.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Use: Part of IndraDrive controllers
  • Component Assembling Requirement: By Trained Technician
  • Configuration: Modular
  • Number of Slots in Base Unit: 5
  • Unoccupied Slots: 2
  • Occupied Slots: 3
  • Safety Technology I/O: Supported
  • Occupied Slot Module 1: Encoder HSF / RSF Module
  • Occupied Slot Module 2: Encoder EnDat 2.1 Module
  • Master Communication Options: SERCOS, Ethernet, Profibus and SERCOS III
  • Supplied Master Communication: SERCOS
  • Device Configurability: Yes
  • Control Panel Type: Standard Control Panel
  • Incompatibility: Comfort Control Panel
  • Optimal Working Temperature Range: 0 to 40 degrees Celsius
  • Handling and Operation: Qualified and Trained Technical Personnel
  • Accessories: Approved Only
