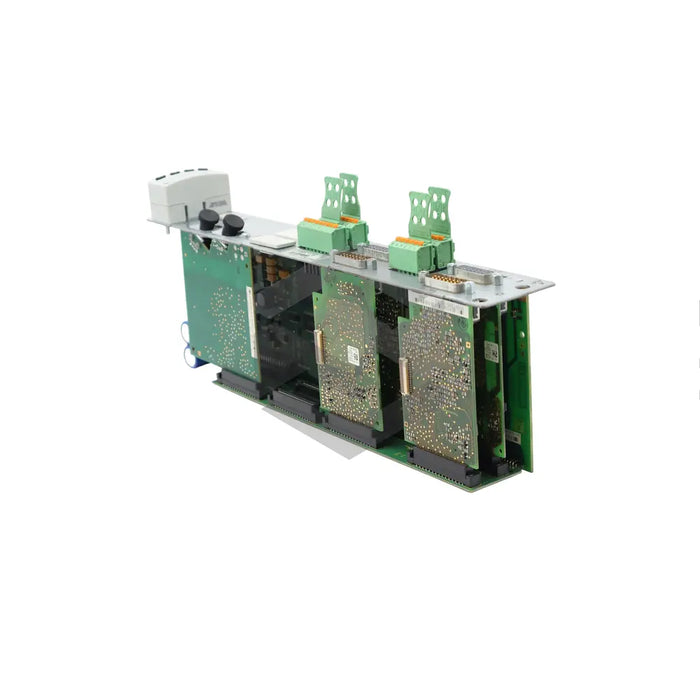

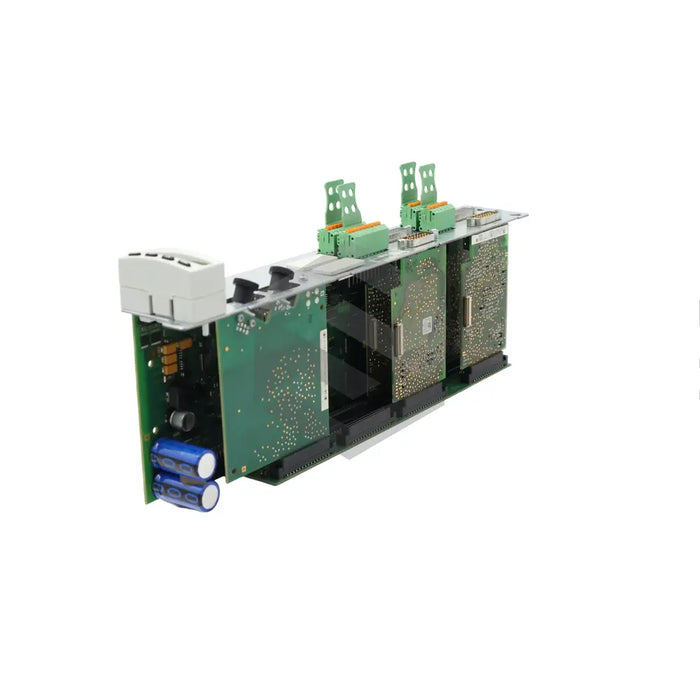

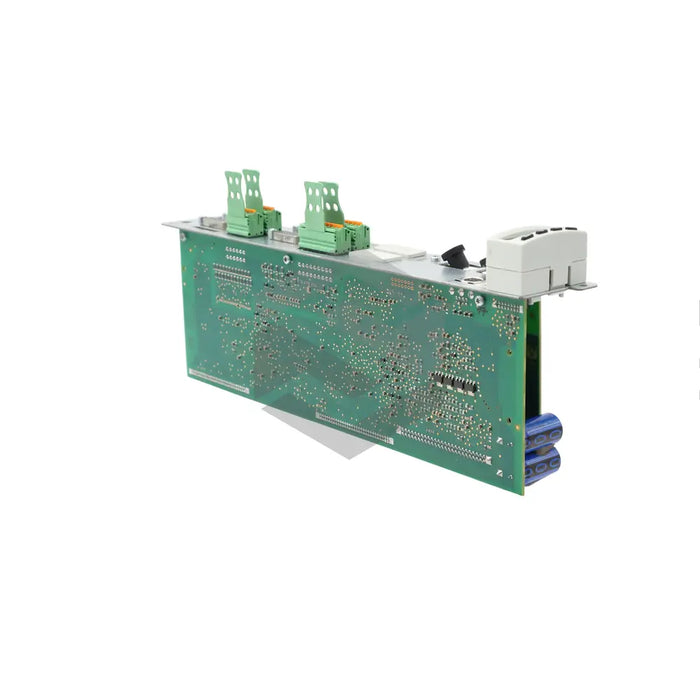

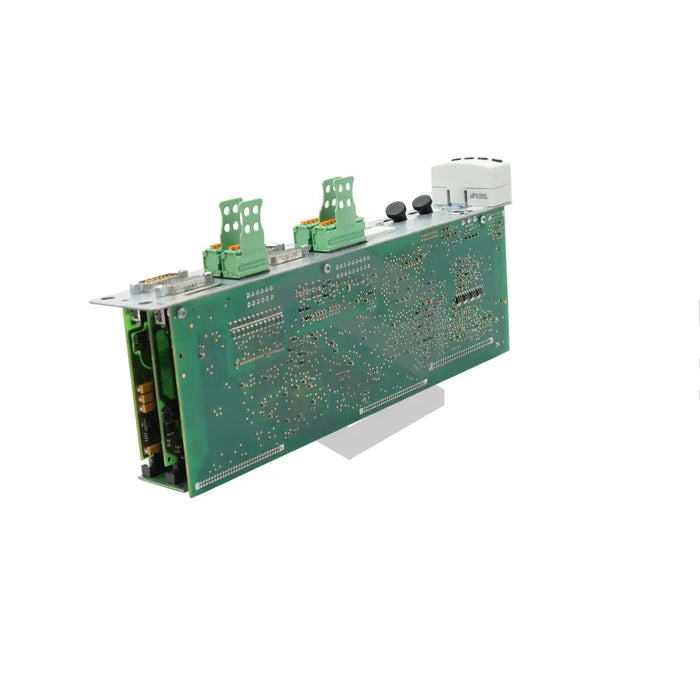

series image of CDB01.1C-SE-EN2-EN2-EN1-EN1-NN-S-NN-FW

CDB01.1C-SE-EN2-EN2-EN1-EN1-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,976.00 - $2,976.00
$2,976.00
$2,976.00 - $2,976.00
$2,976.00
Available, Shipping Varies
The Bosch Rexroth Indramat CDB01.1C-SE-EN2-EN2-EN1-EN1-NN-S-NN-FW is a part of the CDB series, designed to control IndraDrive product lines. Distinct from other control sections due to its five slots, filled with two EnDat 2.1 and two HSF/RSF pre-installed encoder modules. The fifth slot is dedicated for a safety module, which comes unoccupied. This control section comprises an RS-232 interface for secure serial communication. The product comes with an integrated SERCOS master communication interface, a high-speed thriving technology enabling real-time communication, utilizing optic fiber cables. Data rates supported are 2 Mbps and 4 Mbps with an upgraded version, SERCOS III, fully compatible with Ethernet. Known for its resilience even during a node failure or fiber damage due to its ring topology networking. Consuming 9 watts of power, it mounts vertically on a power section and employs 24 and 0-volt terminals. The device should be handled by qualified personnel.*/
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Product Series: CDB
  • Number of Slots: 5
  • Number of Occupied Slots: 4
  • Module Type in Slot 1 and 2: Encoder EnDat 2.1
  • Module Type in Slot 3 and 4: Encoder HSF / RSF
  • Module Type in Slot 5: Reserved for Safety Module (Unoccupied)
  • Integrated Interface: RS-232
  • Communication Interface: SERCOS
  • Supported Data Rates: 2 Mbps, 4 Mbps
  • Mounting: Vertical
  • Power Supply: Through 24 Volt and 0 Volt Terminals from Power Section
  • Power Consumption (Control Section): 9 Watts
  • Power Consumption (Encoder Modules): 6 Watts per Module
  • Handling and Installation: By Qualified Personnel Only
